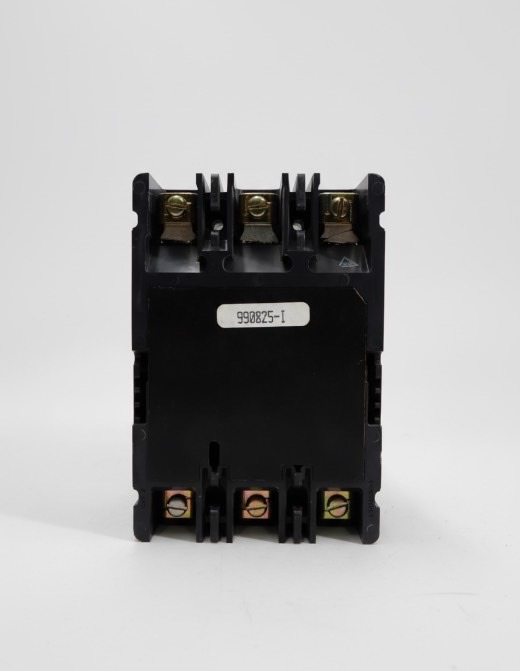

The Eaton HMCP007C0C is a 3 Pole magnetic molded case circuit breaker with a current rating of 7 Amps and a voltage rating of 600VAC, 250VDC. It has an interrupting rating of 65kAIC at 480V. The HMCP007C0C has a feed-thru connection type and includes I - instantaneous functions.
$414.99
| Brand | Eaton |
| Series | C |
| Amperage | 7 |
| Voltage | 600VAC, 250VDC |
| Poles | 3 |
| Phase | 3 |
| Approval | UL, CSA |
| Interrupting Rating | 65kAIC at 480V |
| Frame Type | FD |
| Connection Type | Feed-Thru |
| Protection | Magnetic |
| Functions | Instantaneous |
| Terminal Connection | Line and Load Side Lug |
| Length (in) | 8 |
| Width (in) | 5 |
| Height (in) | 5 |
