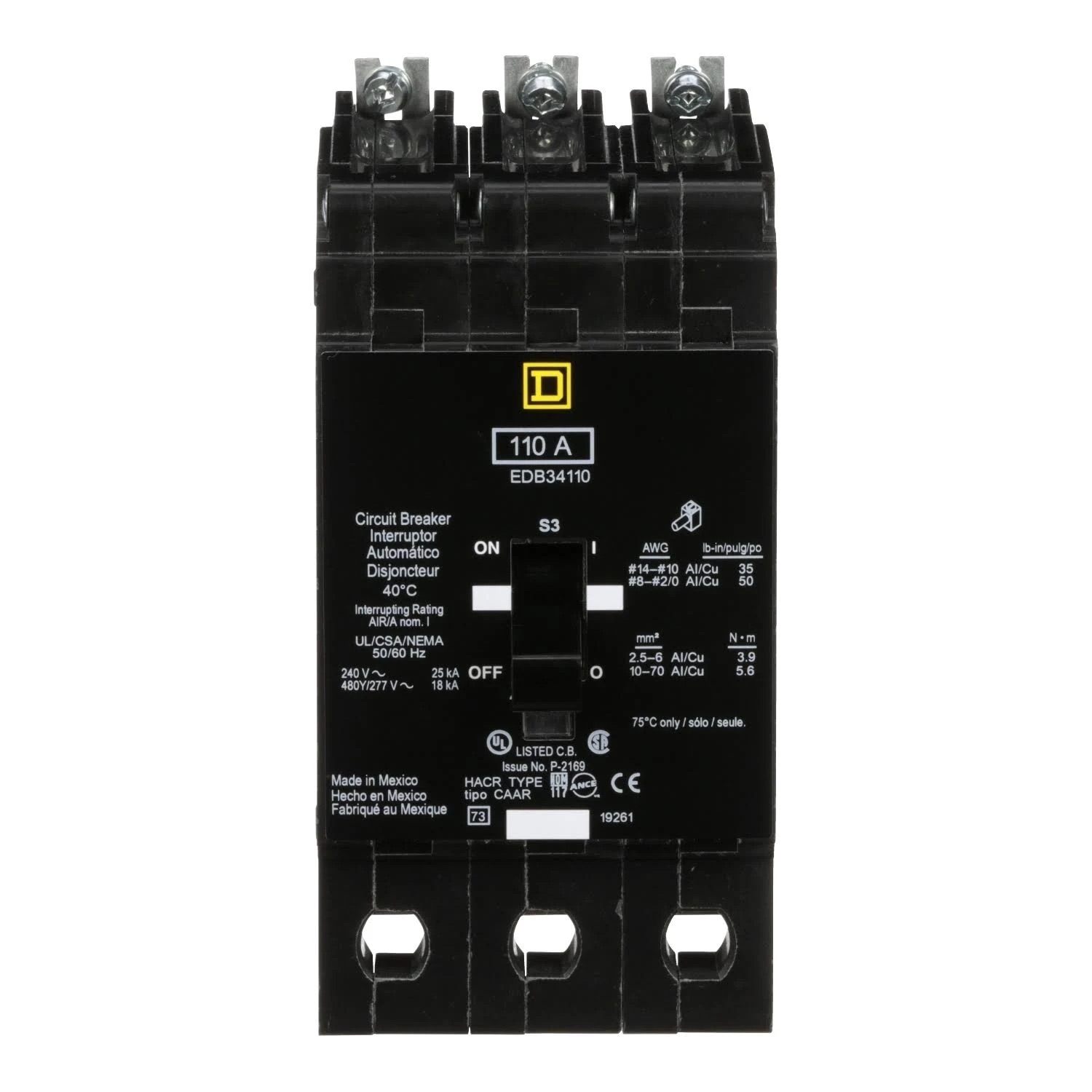

EDB34110 - Square D - Molded Case Circuit Breaker Bolt-On - 110 Amp - 3 Pole - 277 / 480 Volt

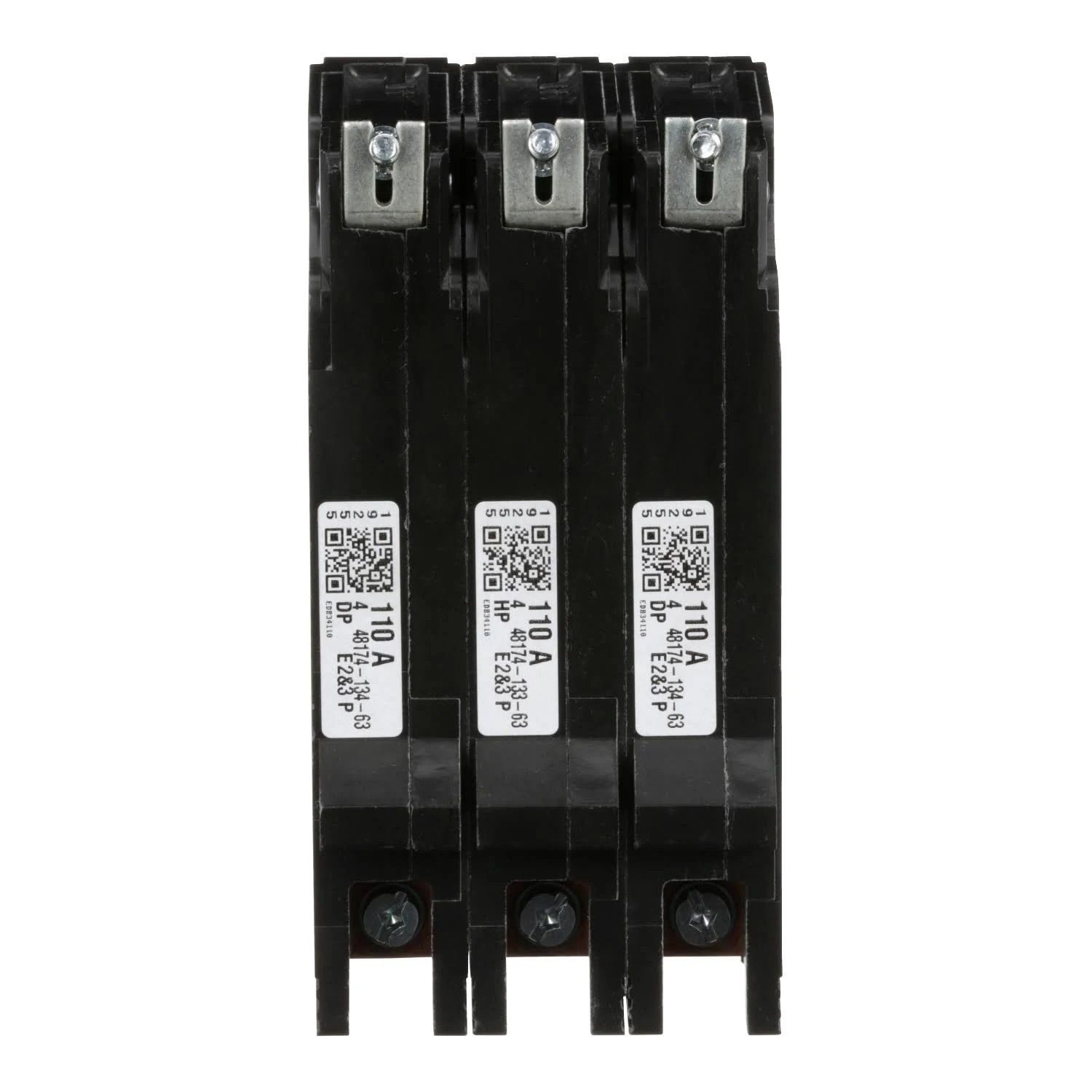

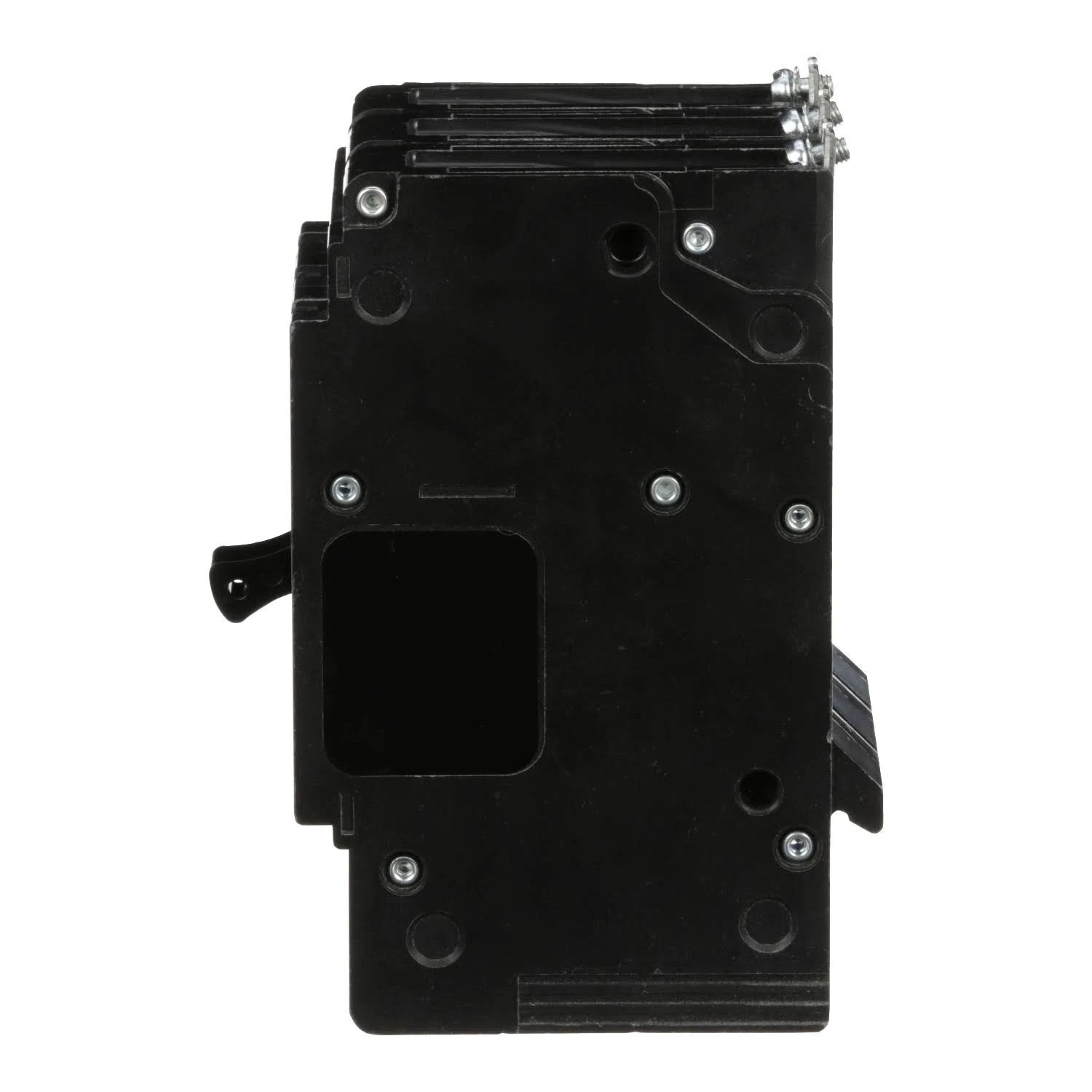

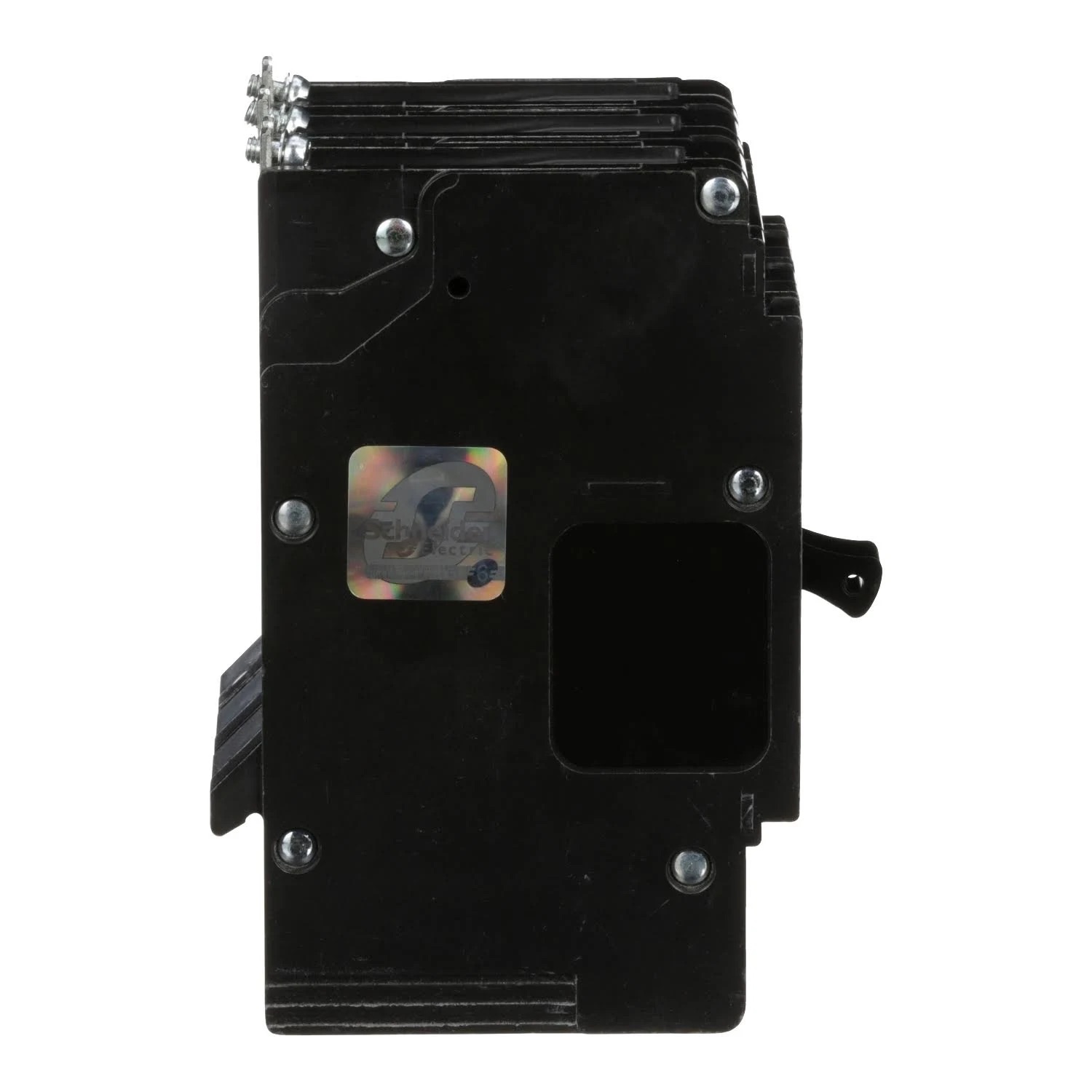

EDB34110 - Square D - Molded Case Circuit Breaker Bolt-On - 110 Amp - 3 Pole - 277 / 480 Volt - Image 2
EDB34110 - Square D - Molded Case Circuit Breaker Bolt-On - 110 Amp - 3 Pole - 277 / 480 Volt - Image 3
EDB34110 - Square D - Molded Case Circuit Breaker Bolt-On - 110 Amp - 3 Pole - 277 / 480 Volt - Image 4

PRODUCT DESCRIPTION

The Square D EDB34110 is a 3 Pole thermal magnetic molded case circuit breaker with a current rating of 110 Amps and a voltage rating of 480Y/277VAC, 125/250VDC. It has an interrupting rating of 18kA at 277/480VAC. The EDB34110 has a bolt-on mounting type and includes long time and instantaneous trip functions.

SKU: EDB34110 Categories: , ,

EDB34110 - Square D - Molded Case Circuit Breaker Bolt-On - 110 Amp - 3 Pole - 277 / 480 Volt

$749.99

Free shipping on orders over $200

SPECIFICATIONS

Specifications

Brand Square D
Series EDB
Amperage 110
Voltage 480Y/277VAC, 125/250VDC
Poles 3
Phase 3
Mounting Type Bolt-On
Approval UL, CSA, CULus
Interrupting Rating 18kA at 277/480VAC
Frame Type EDB
Protection Thermal Magnetic
Functions Long Time and Instantaneous Trip
Terminal Connection Load side lug
Wire Gauge AWG 12 to 2/0 Aluminum, AWG 14 to 2/0 Copper
For Use With NF Panelboards
Standards RoHS
Temperature Rating 104°F (40°C)
Circuit Breaker Type Standard
Actuator Type Toggle
Mpn EDB34110
