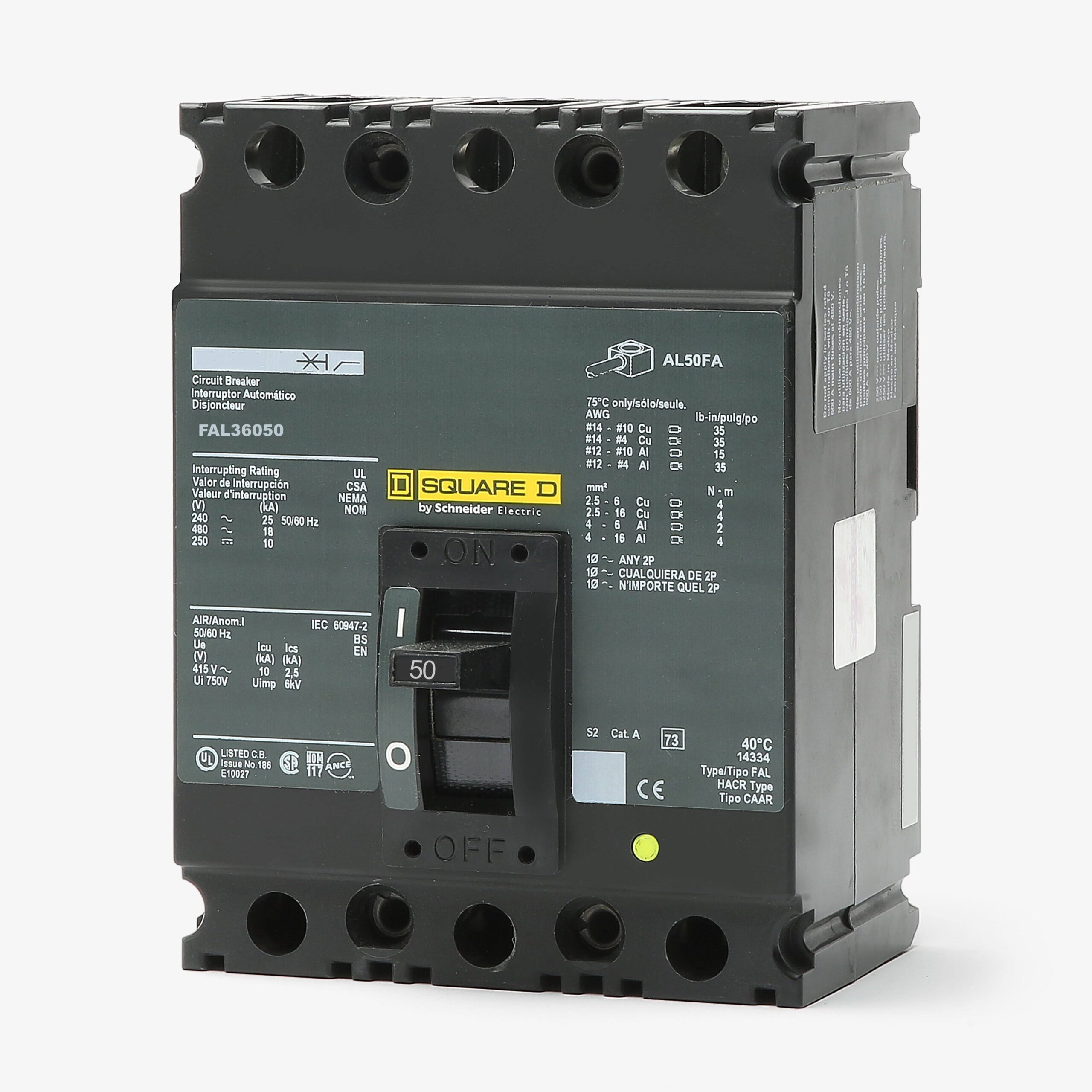

The Square D FAL36050 is a 3 Pole thermal magnetic molded case circuit breaker with a current rating of 50 Amps and a voltage rating of 600VAC. It has an interrupting rating of 18kAIC at 480V. The FAL36050 has a feed-thru connection type and LI - long-time and instantaneous trip functions.
$457.99
| Brand | Square D |
| Series | FAL |
| Amperage | 50 |
| Voltage | 600VAC |
| Poles | 3 |
| Phase | 3 |
| Mounting Type | Unit |
| Approval | UL, CSA |
| Interrupting Rating | 18kAIC at 480V |
| Frame Type | FAL |
| Connection Type | Feed-Thru |
| Protection | Thermal Magnetic |
| Functions | LI - Long-Time and Instantaneous Trip |
| Terminal Connection | Line and Load Side Lug |
| Length (in) | 4.13 |
| Width (in) | 4.5 |
| Height (in) | 6.4 |
| Standards | HACR |
| Mpn | FAL36050 |
