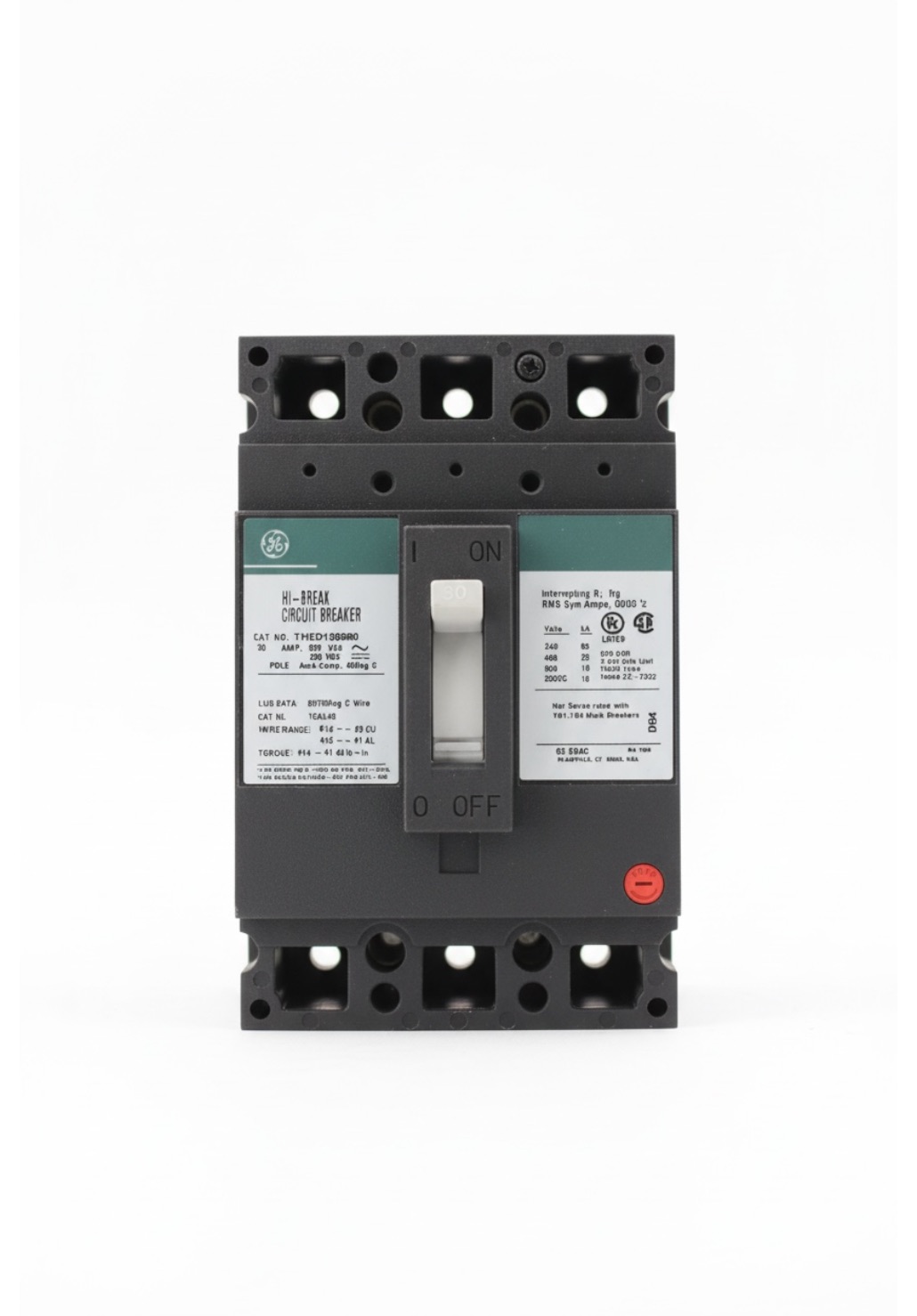

THED136030WL - GE - Molded Case Circuit Breaker Feed-Thru - 30 Amp - 3 Pole - 600 Volt

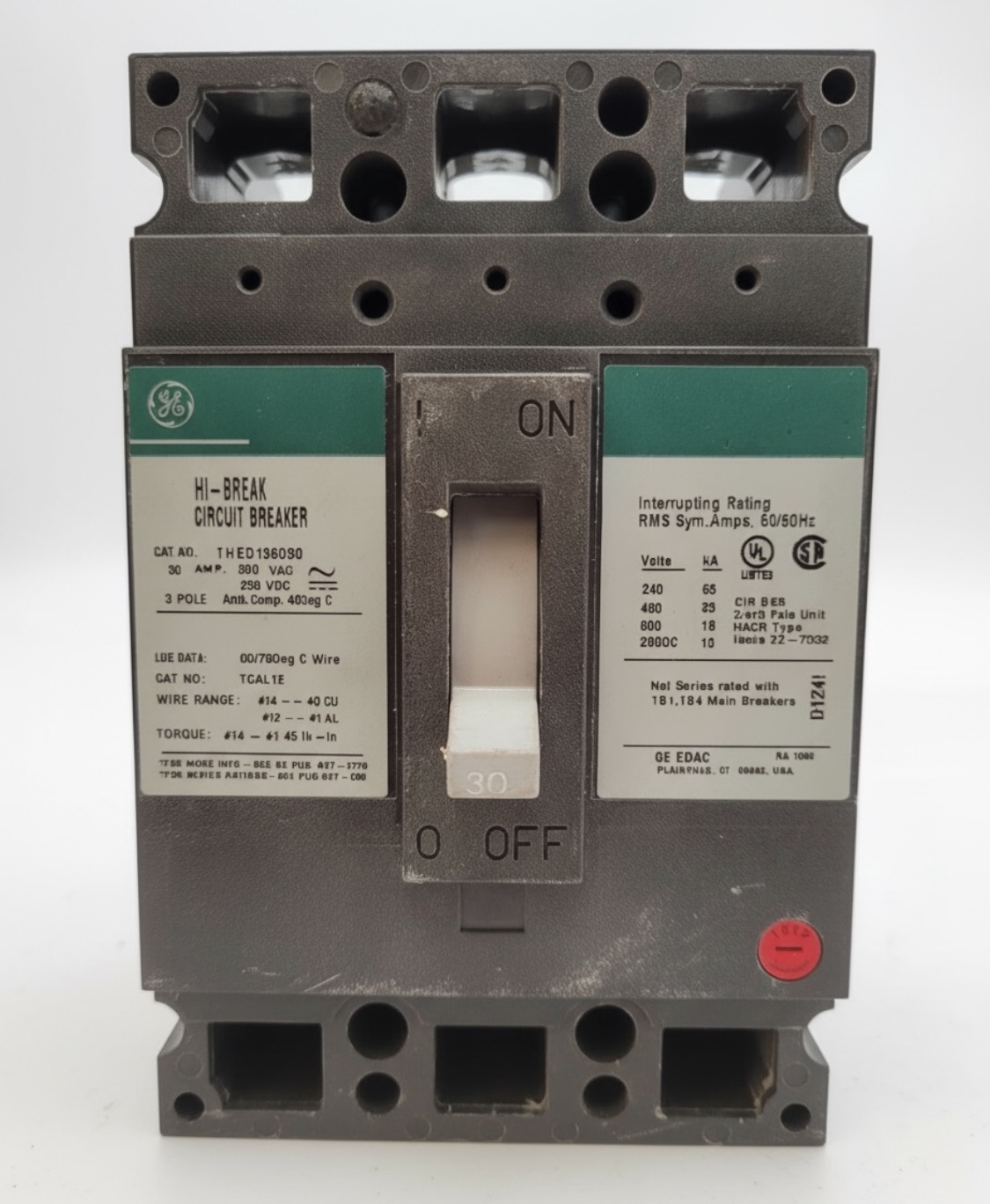

THED136030WL - GE - Molded Case Circuit Breaker Feed-Thru - 30 Amp - 3 Pole - 600 Volt - Image 2

PRODUCT DESCRIPTION

The General Electric THED136030WL is a 3 Pole thermal magnetic molded case circuit breaker with a current rating of 30 Amps and a voltage rating of 600VAC. It has an interrupting rating of 25kAIC at 480V. The THED136030WL has a feed-thru connection type and includes long time and instantaneous trip function.

SKU: THED136030WL Categories: ,

THED136030WL - GE - Molded Case Circuit Breaker Feed-Thru - 30 Amp - 3 Pole - 600 Volt

$368.99

Free shipping on orders over $200

SPECIFICATIONS

Type Thermal Magnetic
Frame Type E150
Voltage Rating 120/240/277/480 Volt AC- 125/250 Volt DC
Maximum AC Voltage Rating 480 Volt
Maximum DC Voltage Rating 250 Volt
Current Rating 30 Amp
Number of Poles 3
Interrupting Rating 25 Kiloamp at 277/480 Volt AC- 65 Kiloamp at 120/240 Volt AC- 10 Kiloamp at 125/250 Volt DC
Terminal Type Copper/Aluminum Line and Load Lug
Approval UL
Additional Information Trip Function LI- Application HACR
Features/Benefits The E150 Product Line Consists of Thermal Magnetic Circuit Breakers- Magnetic Circuit Breakers and Molded-Case Switches Rated up to 150 Amps and 600 Volts AC
