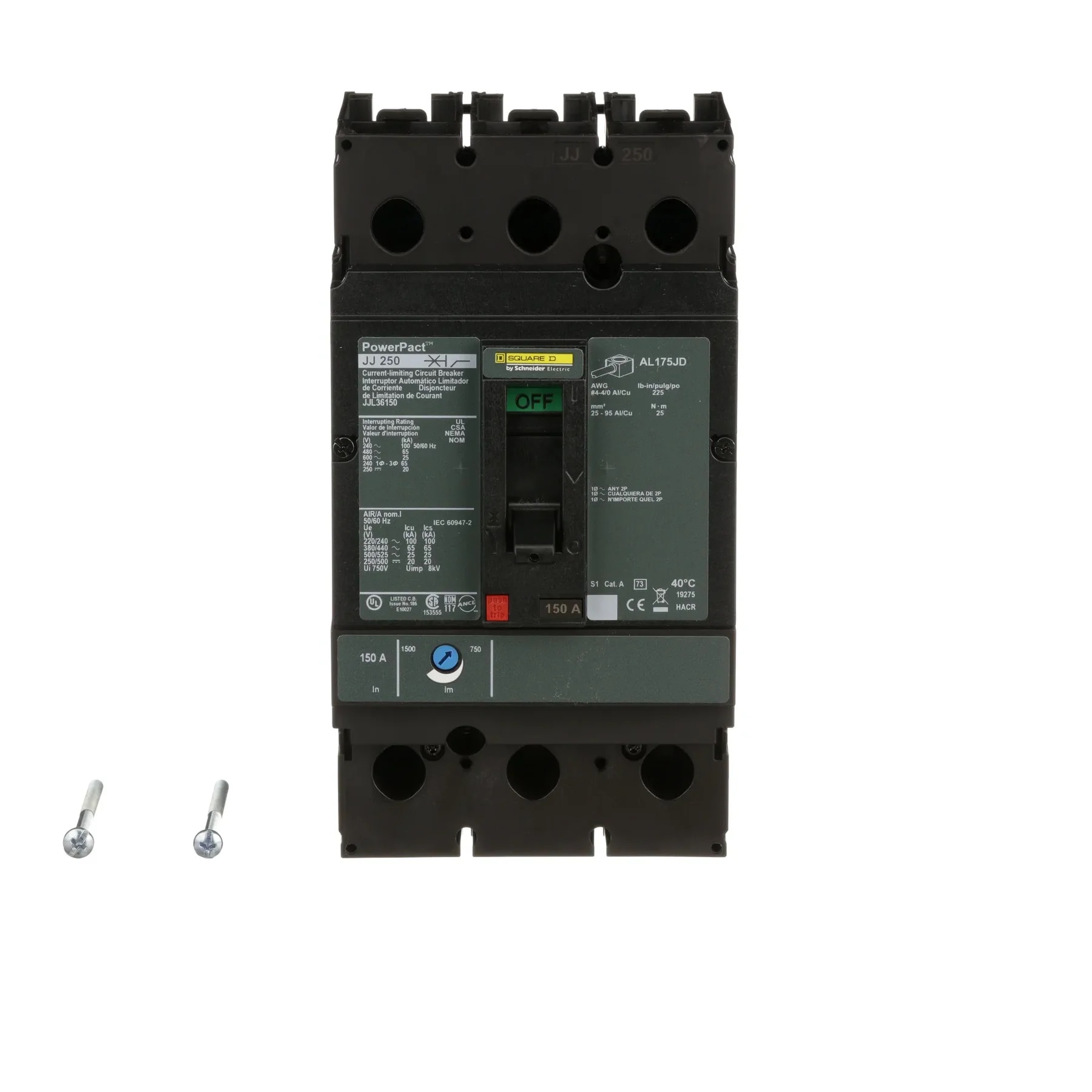

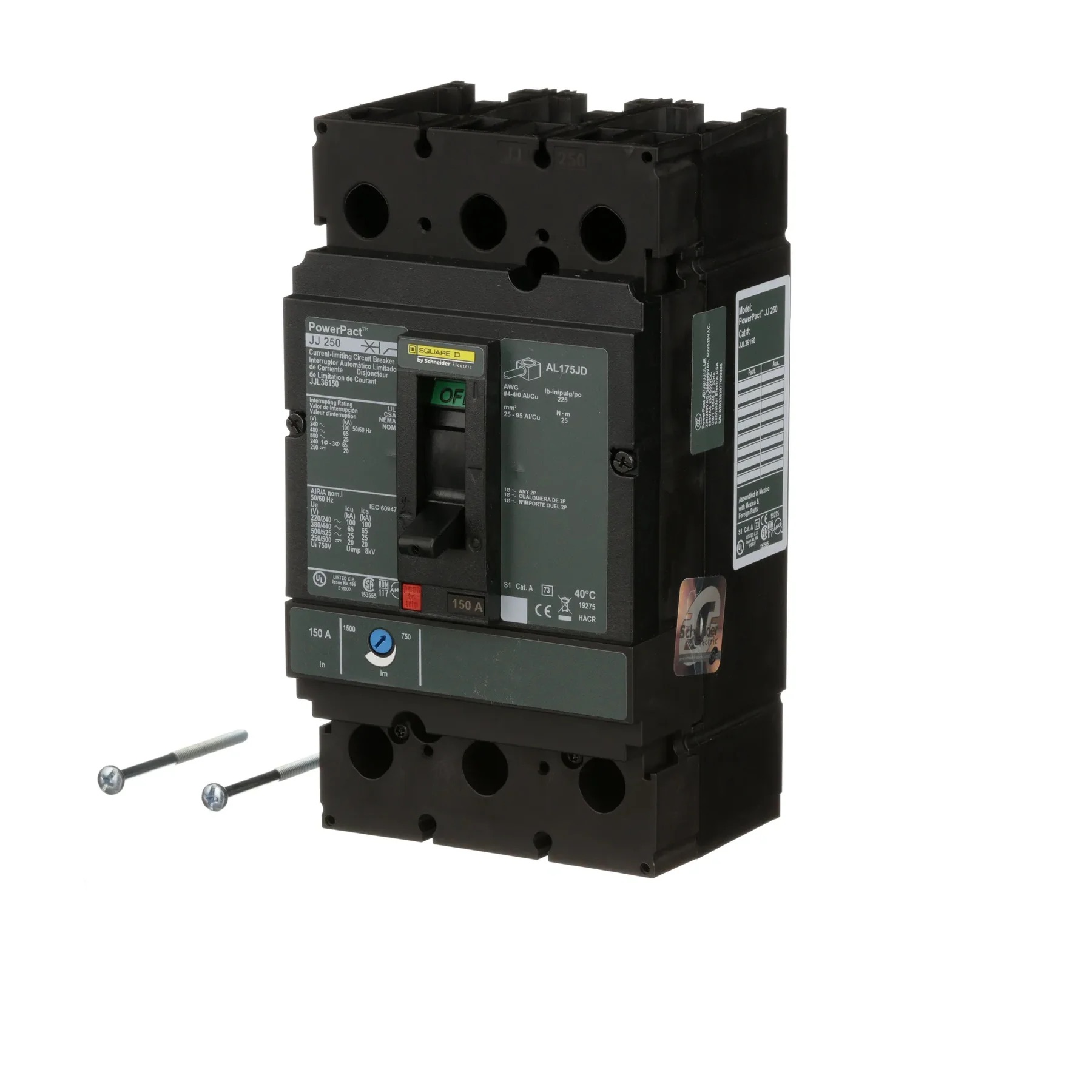

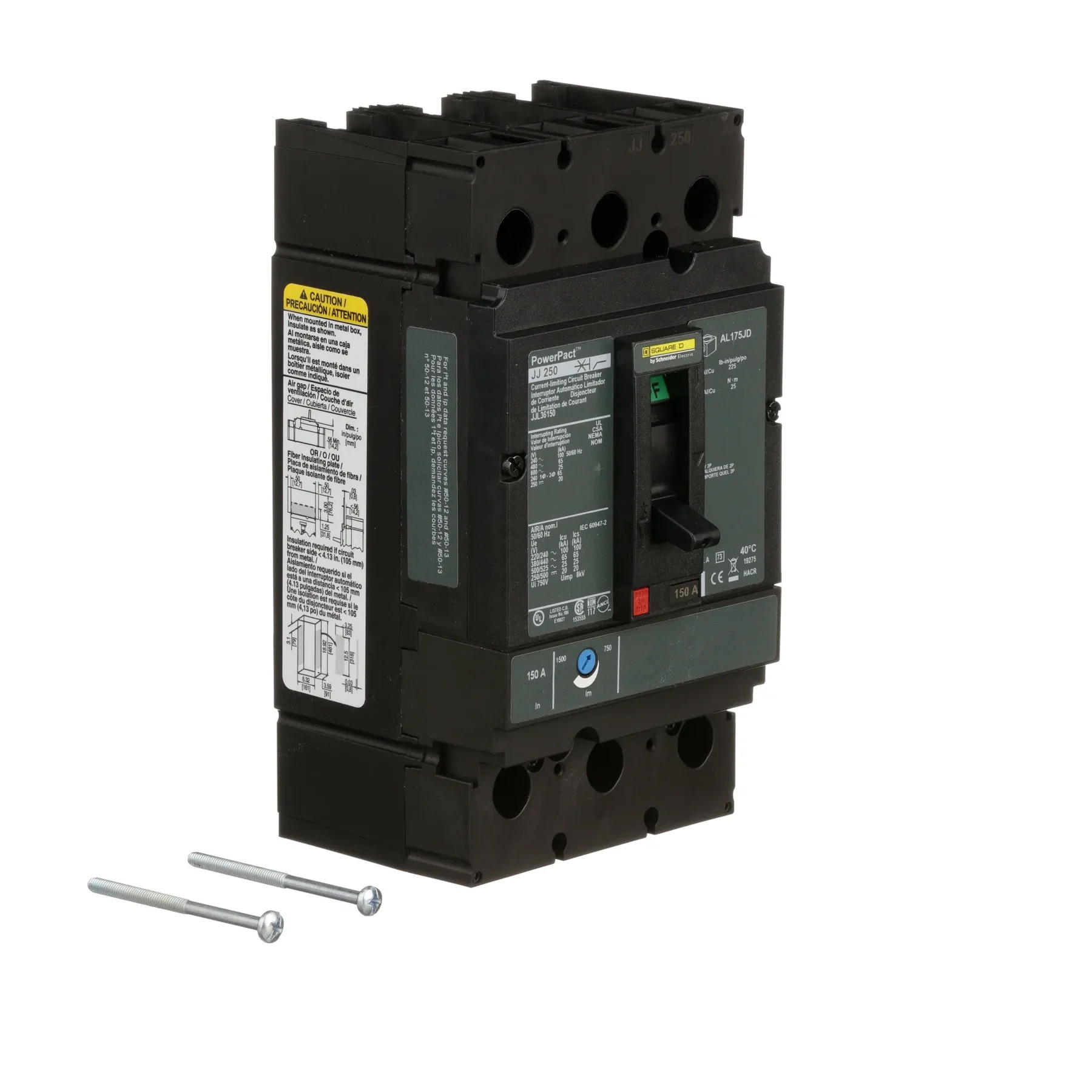

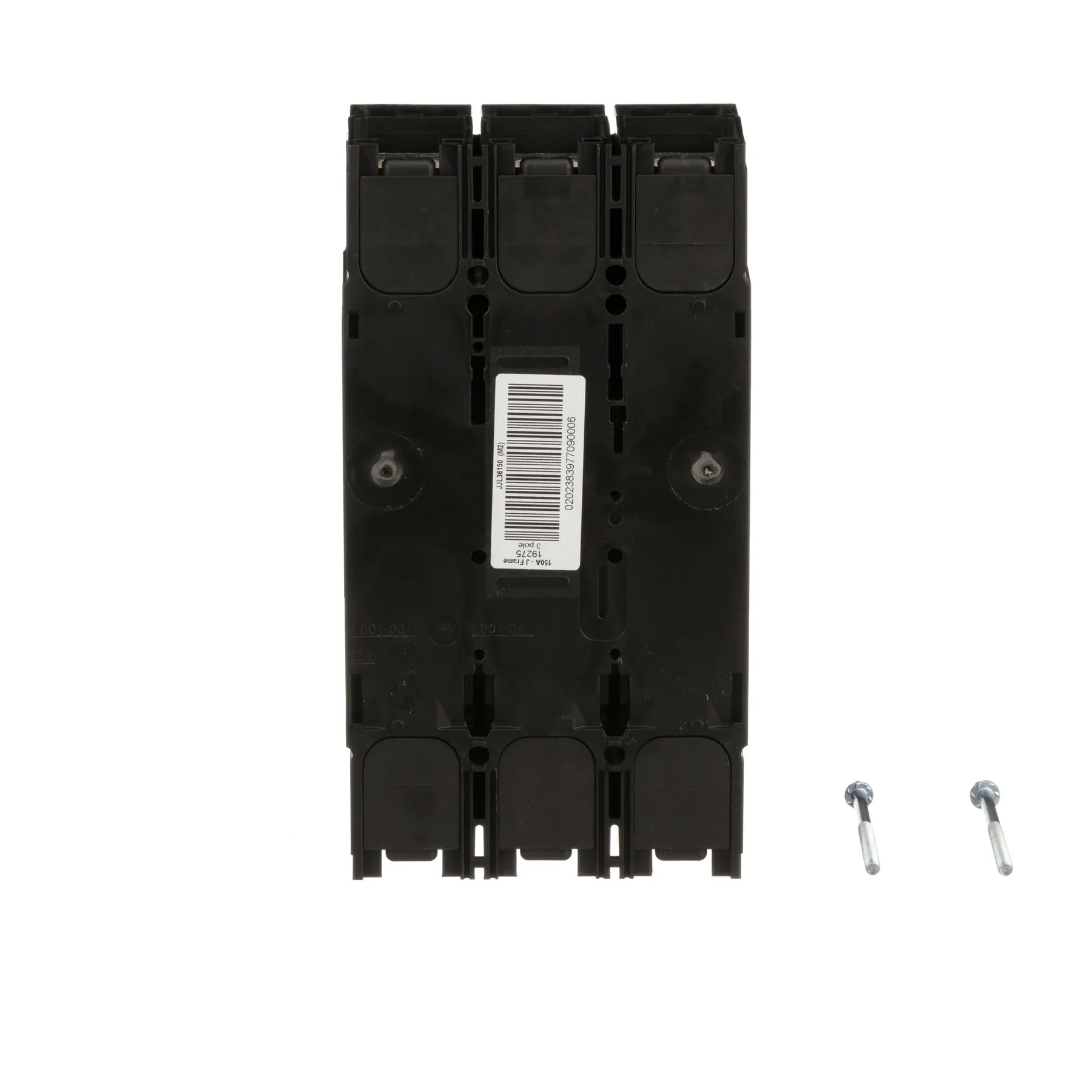

The Schneider Electric JJL36150 is a 3 Pole thermal magnetic molded case circuit breaker with a current rating of 150 Amps and a voltage rating of 600VAC, 250VDC. It has an interrupting rating of 100kAIC at 240VAC, 65kAIC at 480VAC, 25kAIC at 600VAC, 20kAIC at 250VDC. The JJL36150 has a unit mounting type and includes LI - long time and instantaneous functions.
$875.99
| Brand | Schneider Electric |
| Series | PowerPacT J |
| Amperage | 150 |
| Voltage | 600VAC, 250VDC |
| Poles | 3 |
| Phase | 3 |
| Mounting Type | Unit |
| Approval | CE, UL, CSA, IEC, NEMA, NOM |
| Interrupting Rating | 100kAIC at 240VAC, 65kAIC at 480VAC, 25kAIC at 600VAC, 20kAIC at 250VDC |
| Frame Type | M |
| Protection | Thermal Magnetic |
| Terminal Connection | Line and Load Side Lug |
| Length (in) | 3.4 |
| Width (in) | 4.09 |
| Height (in) | 7.5 |
| Wire Gauge | AWG 4 to AWG 4/0, Aluminum/Copper |
| Standards | HACR |
| Temperature Rating | -25 to 70 °C |
| Mpn | JJL36150 |
