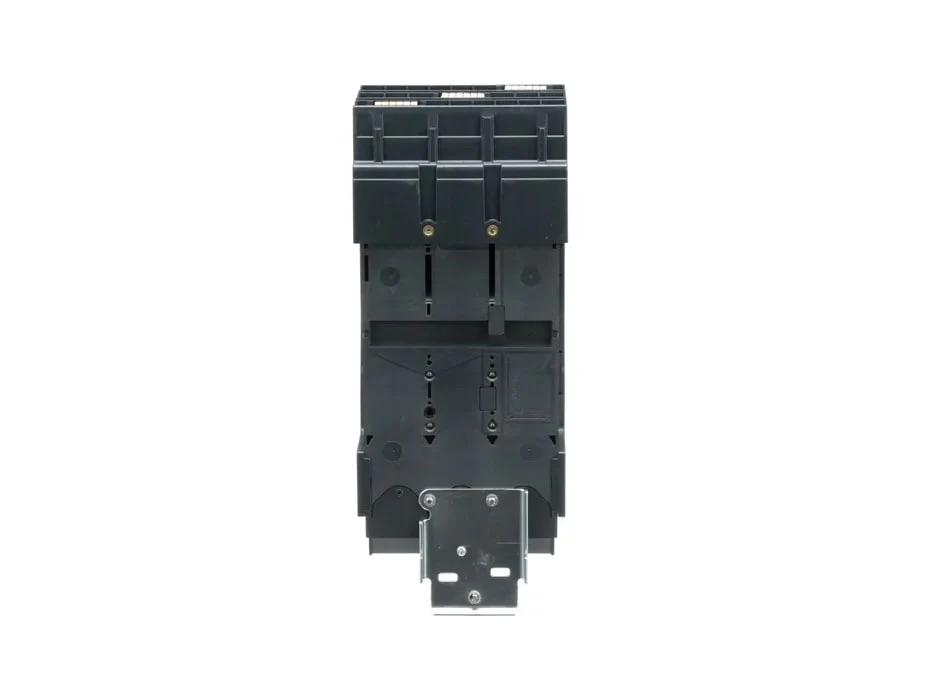

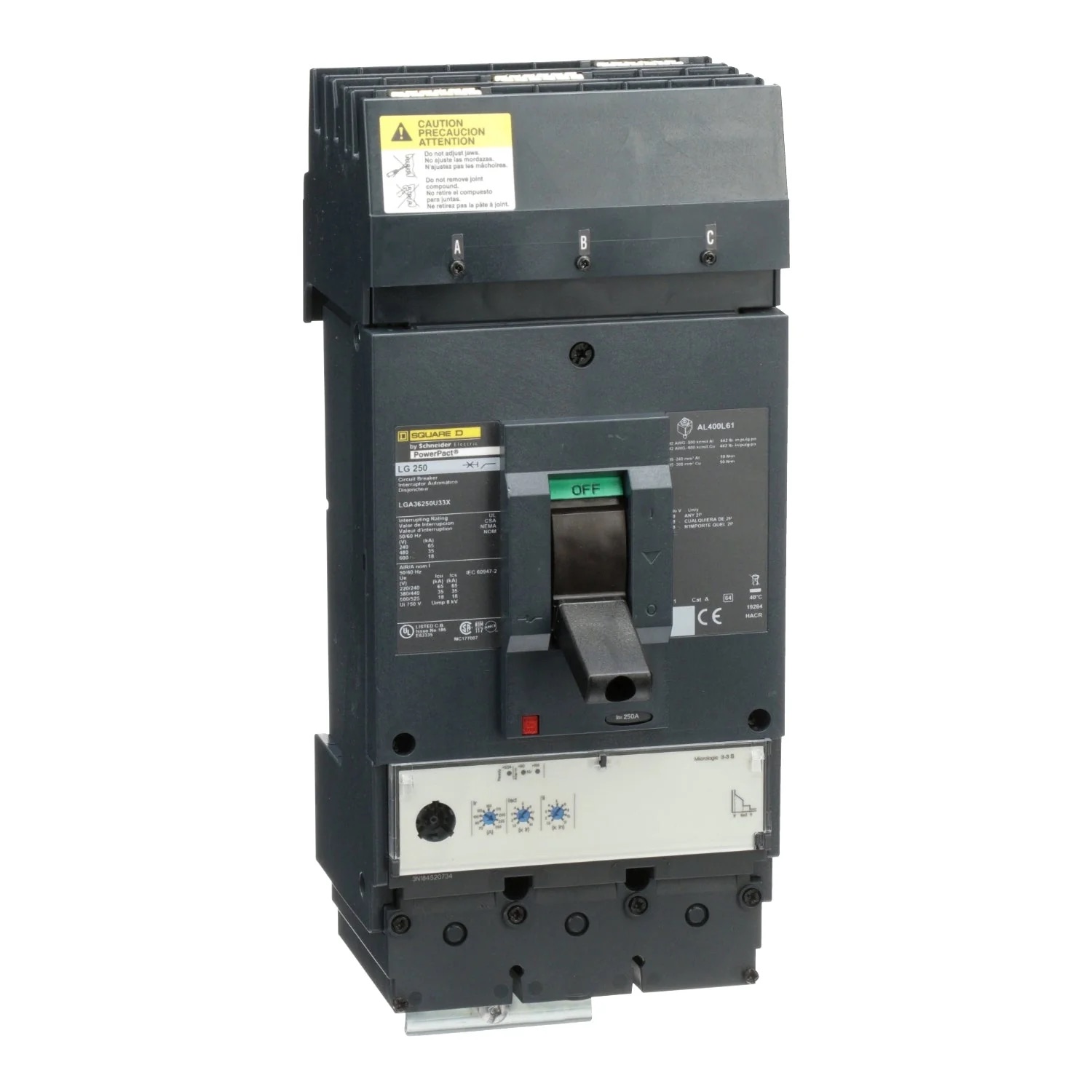

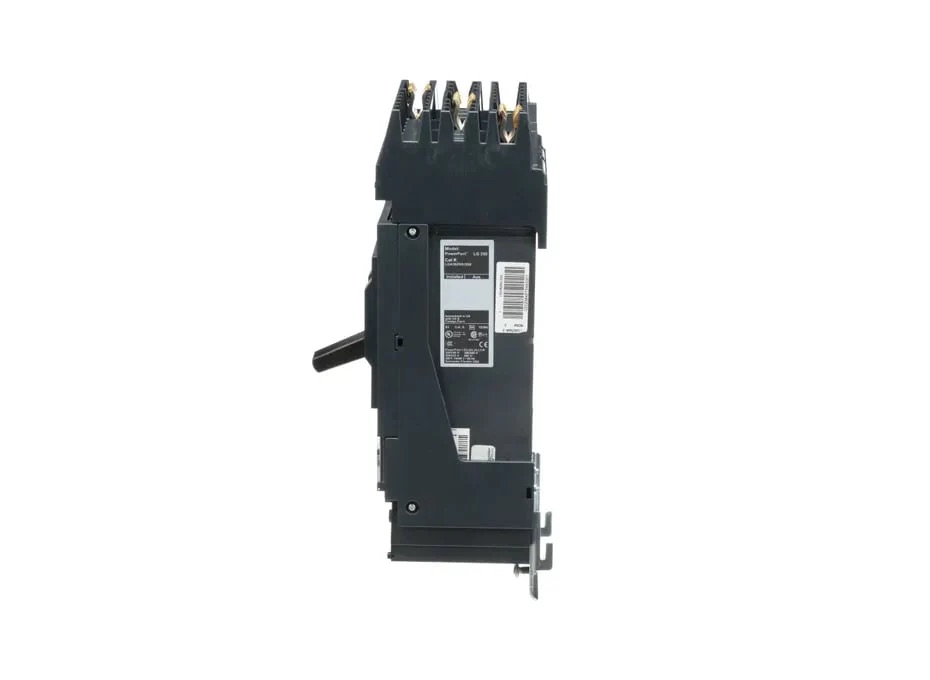

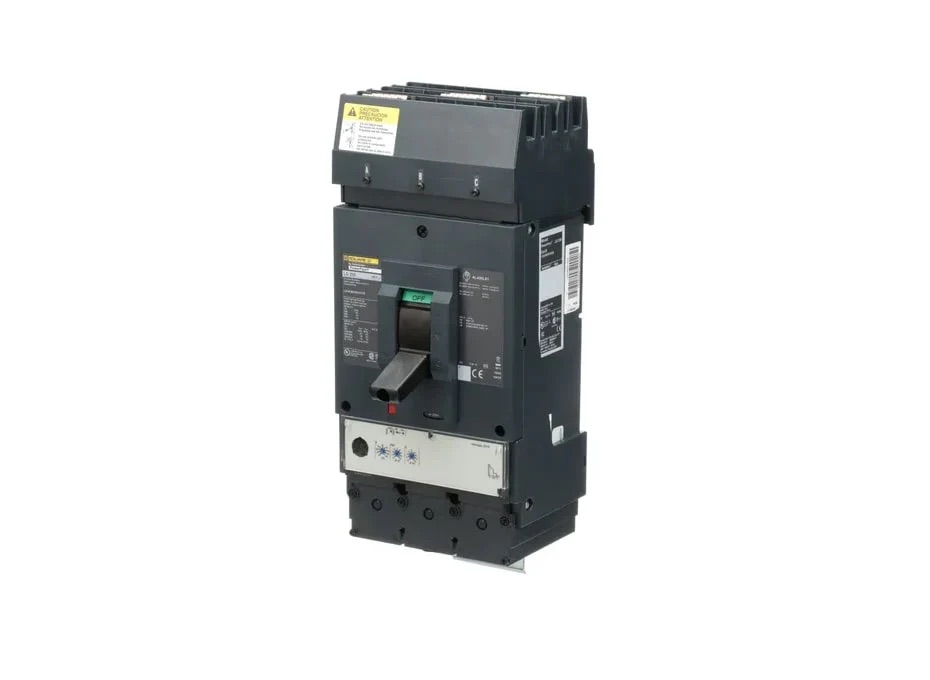

The Square D LGA36250U33X is a 3 Pole solid state molded case circuit breaker with a current rating of 250 Amps and a voltage rating of 600VAC, 250/500VDC. It has an interrupting rating of 65kAIC at 240VAC, 35kAIC at 480VAC, 18kAIC at 600VAC. The LGA36250U33X has an I-Line bracket mounting type and includes LSI - long time, short time and instantaneous trip functions.
$5,999.99
| Series | PowerPacT L |
| Amperage | 250 |
| Voltage | 600VAC, 250/500VDC |
| Poles | 3 |
| Phase | 3 |
| Mounting Type | I-Line Bracket |
| Approval | UL, CSA, NEMA, NOM, IEC |
| Interrupting Rating | 65kAIC at 240VAC, 35kAIC at 480VAC, 18kAIC at 600VAC |
| Frame Type | L |
| Connection Type | I-Line Style Plug-In |
| Protection | Solid State |
| Functions | LSI - Long Time, Short Time and Instantaneous Trip |
| Terminal Connection | Load Side Lug |
| Wire Gauge | AWG 2 to 600KCmil, Copper, AWG 2 to 500KCmil, Aluminum |
| Standards | RoHS, REACh, HACR |
| Temperature Rating | -25 to 70 °C |
| Circuit Breaker Type | LS Functionality/Micrologic |
| Breaker Feature | Mercury Free, PVC Free |
| Actuator Type | Toggle |
| Max Wire Size | 600KCmil, Cu, 500KCmil, Al |
| Min Wire Size | AWG 2, Cu/Al |
| Color | Black |
