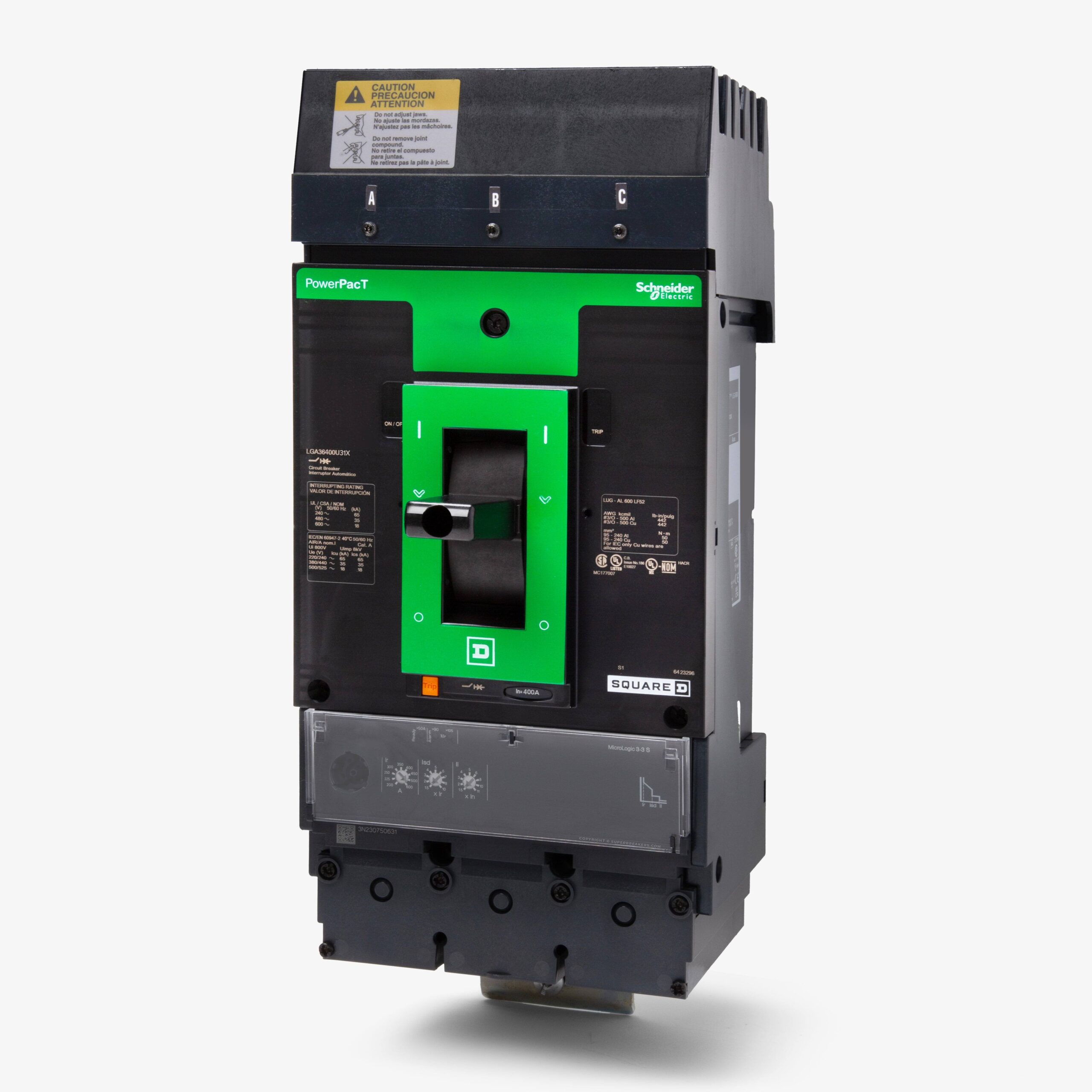

The Square D LGA36400U31X is a 3 Pole solid state molded case circuit breaker with a current rating of 400 Amps and a voltage rating of 600VAC. It has an interrupting rating of 65kA at 240VAC, 35kA at 480VAC, 18kA at 600VAC. The LGA36400U31X has a I-Line mounting type and includes long time and instantaneous trip functions.
$2,224.99
| Brand | Square D |
| Series | LGA |
| Amperage | 400 A |
| Voltage | 600 V AC |
| Poles | 3 |
| Phase | 3 |
| Mounting Type | I-Line |
| Approval | CSA,CCC,IEC,CE,UL,NMX,NEMA |
| Interrupting Rating | 65 kA at 240 V AC/35 kA 480 V AC/18 kA 600 V AC |
| Frame Type | LGA |
| Connection Type | I-Line Connection Linelugs Load |
| Functions | Long Time and Instantaneous Trip |
| Terminal Connection | Lugs load |
| Wire Gauge | AWG 3/0 - 500 kcmil Aluminium/Copper)2 |
| For Use With | 2P Applications |
| Temperature Rating | -13 Deg F and 158 Deg F (-25 Deg C and +70 Deg C) |
| Circuit Breaker Type | MCCB |
