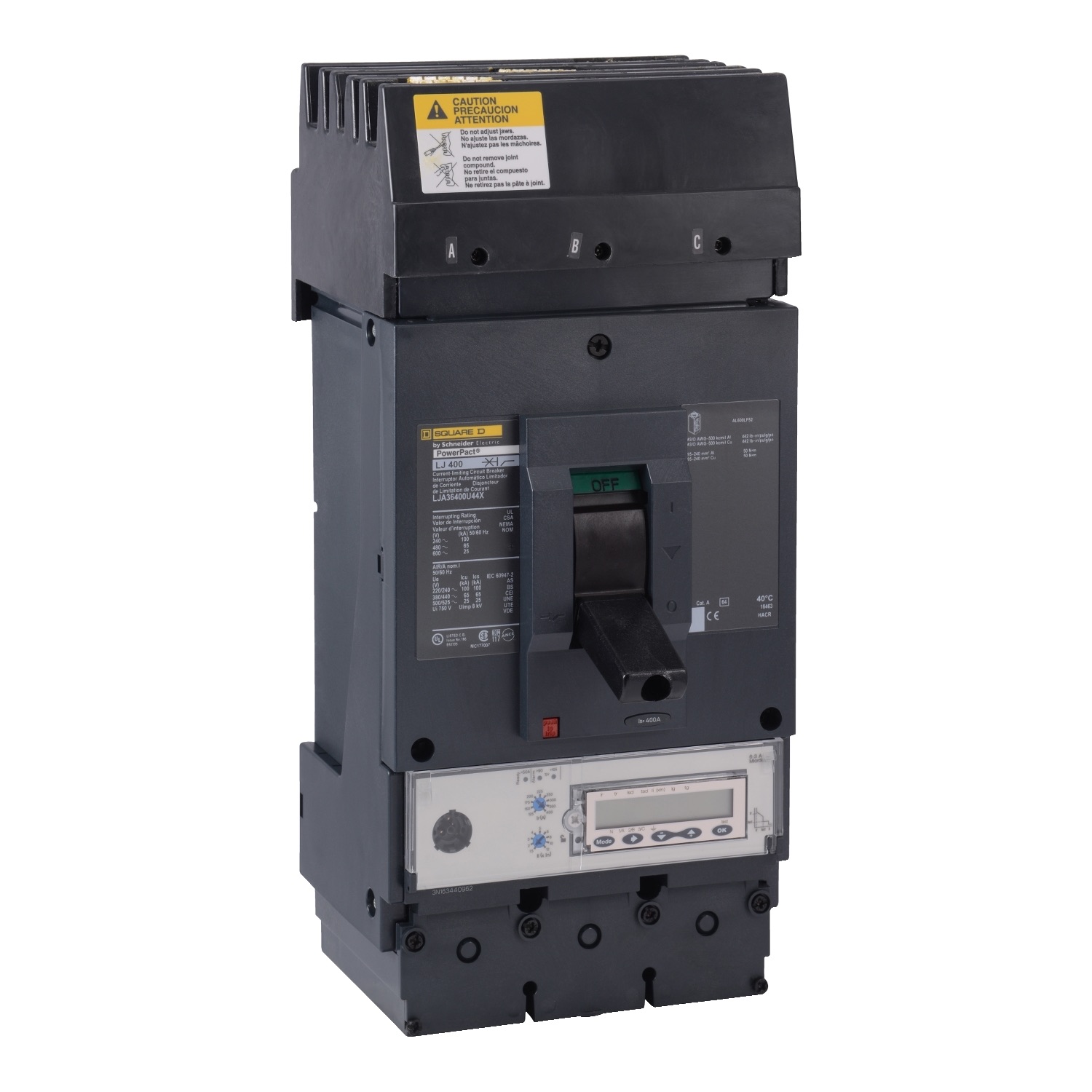

LJA36400CU44X - Square D - Molded Case Circuit Breaker I-Line Style Plug-In - 400 Amp - 3 Pole - 600 V

PRODUCT DESCRIPTION

The Schneider Electric LJA36400CU44X is a 3 Pole solid state molded case circuit breaker with a current rating of 400 Amps and a voltage rating of 600VAC. It has an interrupting rating of 100kAIC at 240VAC, 65kAIC at 480V, 25kAIC at 600VAC. The LJA36400CU44X has a I-line bracket mounting type and includes long time, short time, instantaneous and ground fault trip functions.

SKU: LJA36400CU44X Categories: , ,

LJA36400CU44X - Square D - Molded Case Circuit Breaker I-Line Style Plug-In - 400 Amp - 3 Pole - 600 V

$4,799.99

Free shipping on orders over $200

SPECIFICATIONS

Brand Schneider Electric
Series LJA
Amperage 400
Voltage 600VAC
Poles 3
Phase 3
Mounting Type I-Line Bracket
Approval CSA, NEMA, UL, NOM, IEC
Interrupting Rating 100kAIC at 240VAC, 65kAIC at 480V, 25kAIC at 600VAC
Frame Type LJA
Connection Type I-Line Style Plug-In
Protection Solid State
Functions Long Time, Short Time, Instantaneous and Ground Fault Trip
Terminal Connection Line and Load Side Lug
Wire Gauge 2x AWG 2/0 to 500KCmil, Aluminum/Copper
Standards RoHS, REACh, HACR
Temperature Rating -13 to 158 °F
Actuator Type Toggle
Color Black
