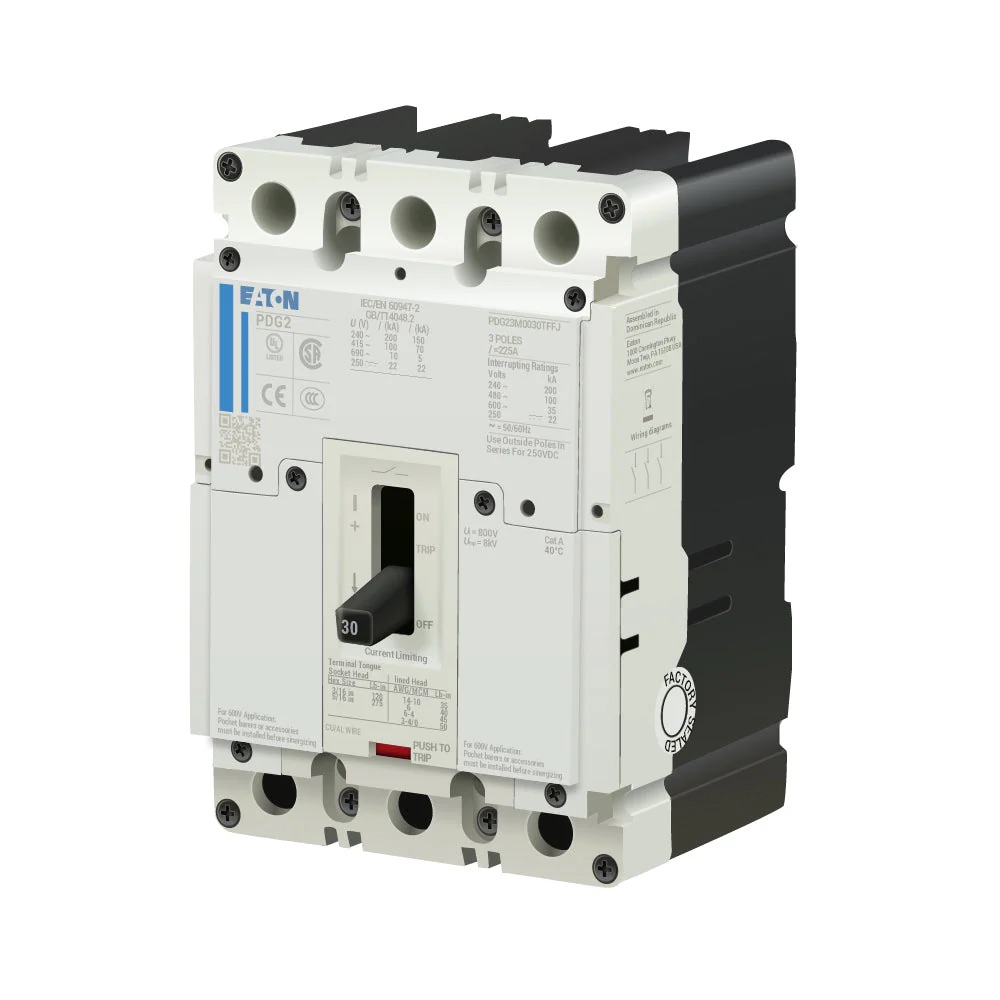

Designed for reliable overcurrent protection, the Eaton PDG23M0030TFFL is a 3-pole, 30A molded case circuit breaker from the Power Defense family. It integrates seamlessly into Eaton panelboards and enclosures, serving as a drop-in replacement for older HFD3030 and EGH3030 breakers. The Frame 2 unit provides a 65kAIC interrupting capacity at 480V and features a fixed thermal-magnetic trip unit. It includes standard load-side lugs for installation.
$575.99
| Brand | Eaton / Cutler-Hammer |
| Series | PDG2 |
| Part Number | PDG23M0030TFFL |
| Amperage | 30A |
| Voltage | 240VAC, 480VAC, 600VAC, 250VDC |
| Poles | 3 |
| Phase | 3 |
| AIC Rating | 100kA @ 240VAC, 65kA @ 480VAC, 25kA @ 600VAC, 22kA @ 250VDC |
| Mounting Style | Panel Mount |
| Terminal Type | Lugs |
| For Use With | Eaton Power Defense Enclosures and Panelboards |
| Trip Technology | Thermal Magnetic |
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Wire Gauge | 14 AWG - 1/0 AWG (Al/Cu) |
| Max Wire | 1/0 AWG |
| Min Wire | 14 AWG |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch, Padlock Attachment, Motor Operator |
| Accessories | Load Side Lugs Included (PDG2X3T100) |
| Standards | CSA C22.2 No. 5, IEC 60947-2, UL 489, RoHS |
| Approval | CCC, CE, CSA, IEC, RoHS, UL |
| Temp Rating | -20C to 70C |
| Construction Features | Current Limiting, HACR Rated, RoHS Compliant |
