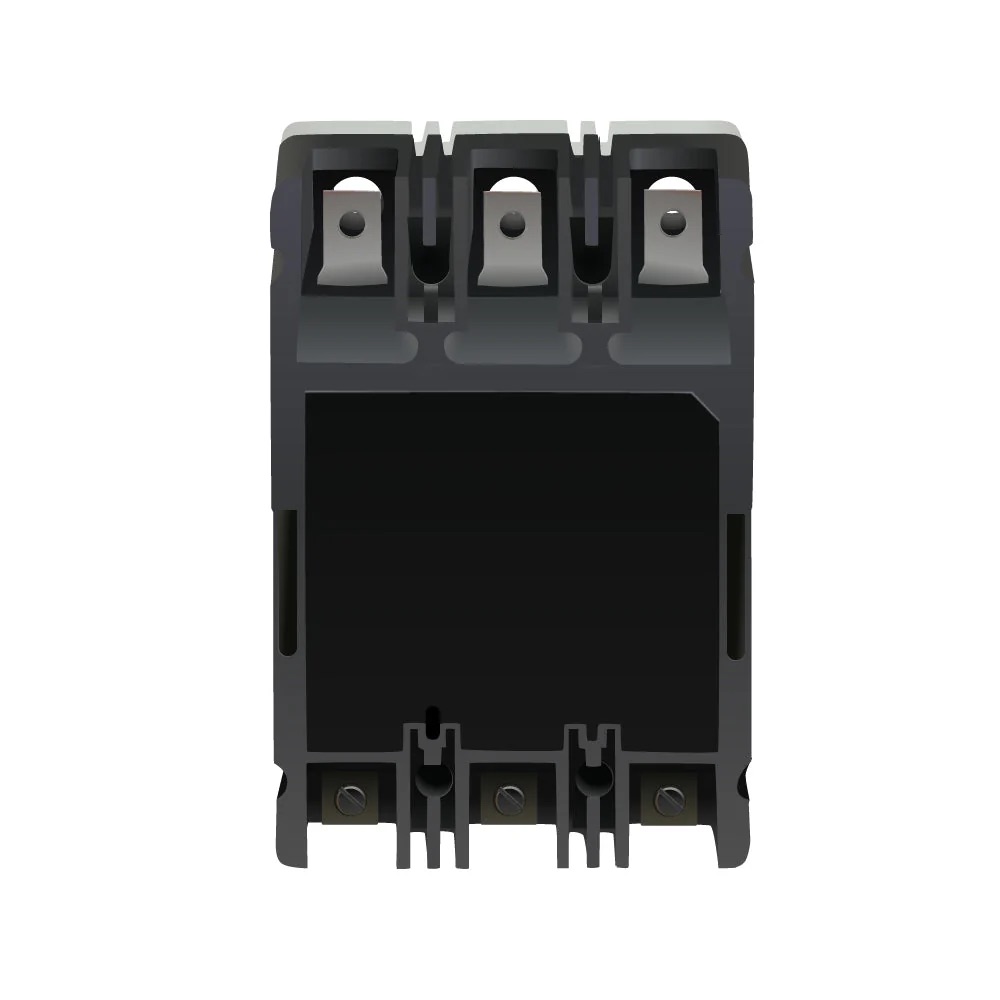

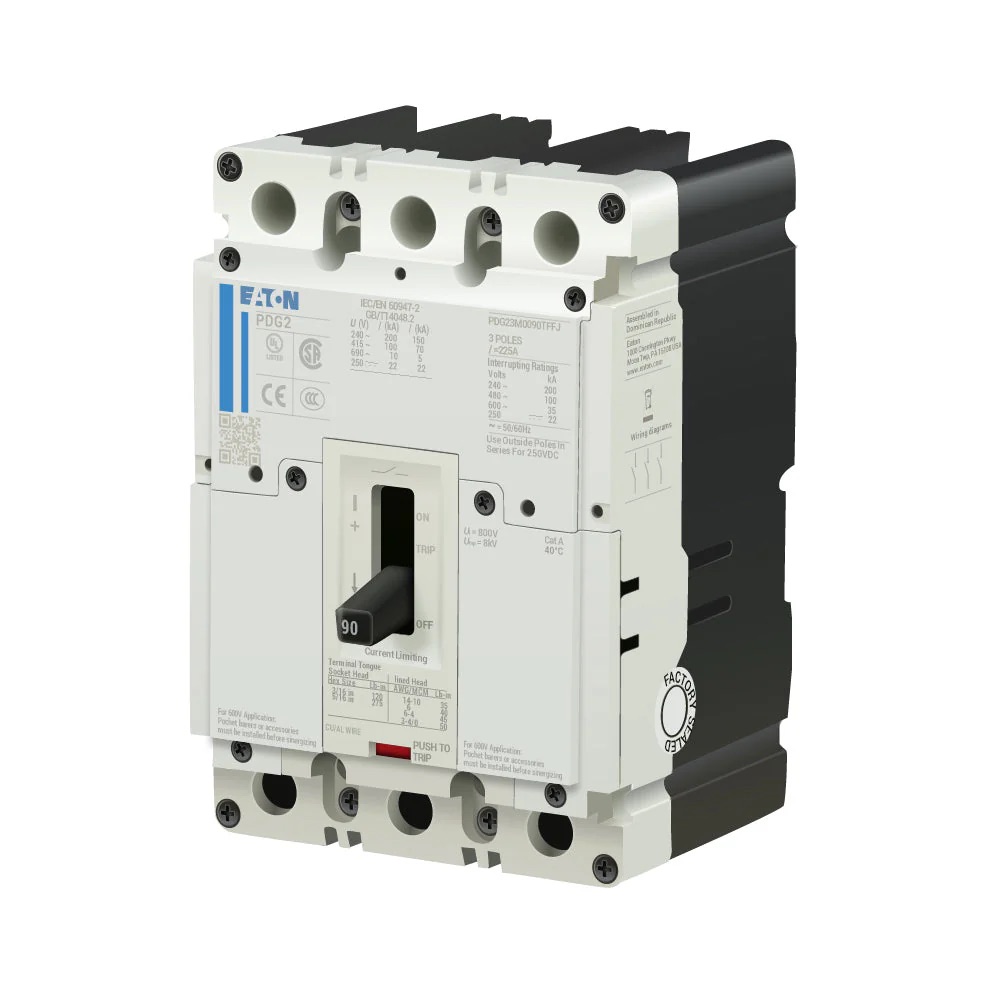

PDG23M0090TFFL - Eaton - Molded Case Circuit Breakers Feed-Thru - 90 Amp - 3 Pole - 600 Volt
PDG23M0090TFFL - Eaton - Molded Case Circuit Breakers Feed-Thru - 90 Amp - 3 Pole - 600 Volt - Image 2
PDG23M0090TFFL - Eaton - Molded Case Circuit Breakers Feed-Thru - 90 Amp - 3 Pole - 600 Volt - Image 3
PDG23M0090TFFL - Eaton - Molded Case Circuit Breakers Feed-Thru - 90 Amp - 3 Pole - 600 Volt - Image 4

PRODUCT DESCRIPTION

Engineered for commercial applications, the Eaton PDG23M0090TFFL is a 3-pole, 90A molded case circuit breaker from the Power Defense family. It provides robust overcurrent protection for demanding distribution systems. This Frame 2 breaker installs into Eaton panelboards and switchboards. It serves as a drop-in substitute for the discontinued HFD3090, ensuring seamless upgrades. The unit includes standard load-side lugs. Rated 65 kAIC at 480VAC, it features a fixed thermal-magnetic trip.
SKU: PDG23M0090TFFL Categories: , ,

PDG23M0090TFFL - Eaton - Molded Case Circuit Breakers Feed-Thru - 90 Amp - 3 Pole - 600 Volt

$669.99

Free shipping on orders over $200

SPECIFICATIONS

Brand Eaton / Cutler-Hammer
Series PDG2
Amperage 90A
Voltage 240VAC, 480VAC, 600VAC, 250VDC
Poles 3
Phase 3
AIC Rating 100kA @ 240VAC, 65kA @ 480VAC, 35kA @ 600VAC, 22kA @ 250VDC
Mounting Style Panel Mount
Terminal Type Lugs
For Use With Eaton Power Defense Enclosures, Panelboards, Switchboards
Trip Technology Thermal Magnetic
Trip Function Code LI
Trip Function Long-Time, Instantaneous
Trip Adjustability Fixed Thermal, Fixed Magnetic
Wire Gauge 14-1/0 AWG (Al/Cu)
Max Wire 1/0 AWG
Min Wire 14 AWG
Available Options Auxiliary Switch, Bell Alarm, Shunt Trip, Undervoltage Release
Accessories Load Side Lugs Included
Standards CSA C22.2 No. 5, IEC 60947-2, UL 489, RoHS
Approval CCC, CE, CSA, IEC, RoHS, UL
Temp Rating -20C to 70C
Construction Features HACR Rated, RoHS Compliant
