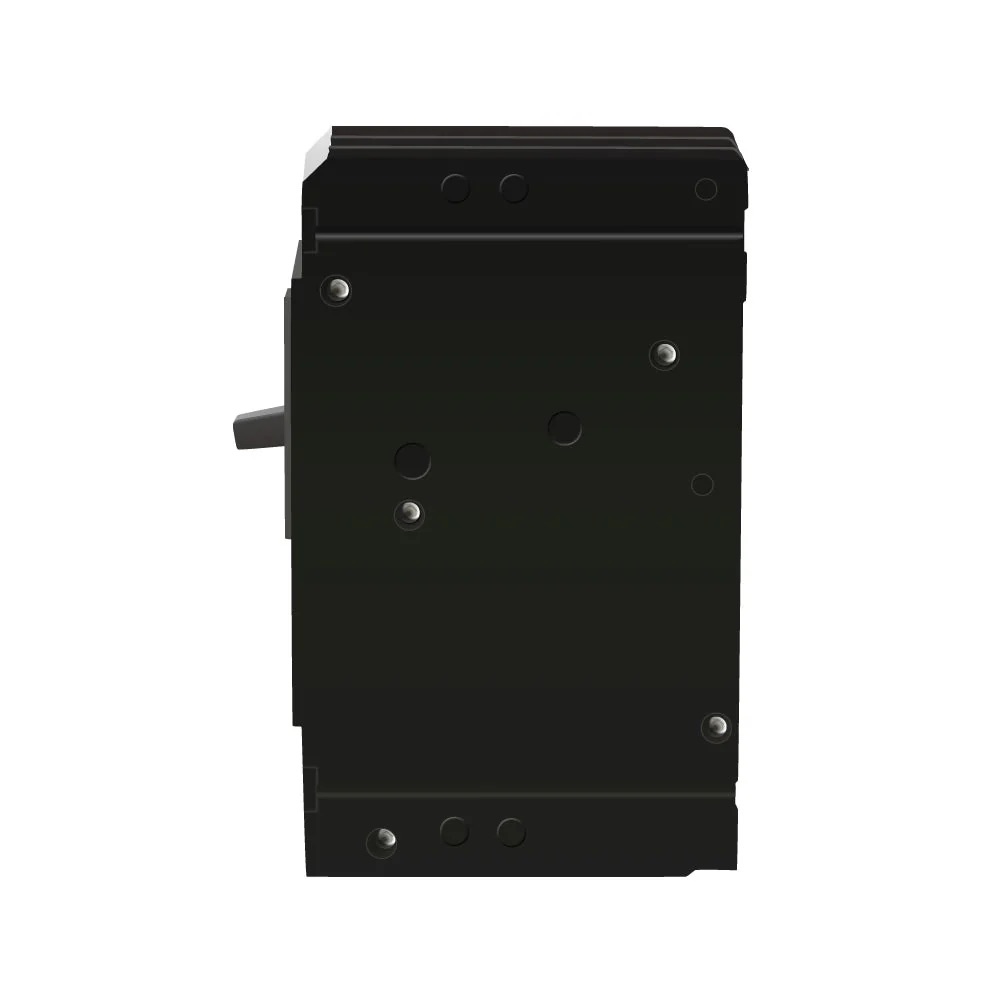

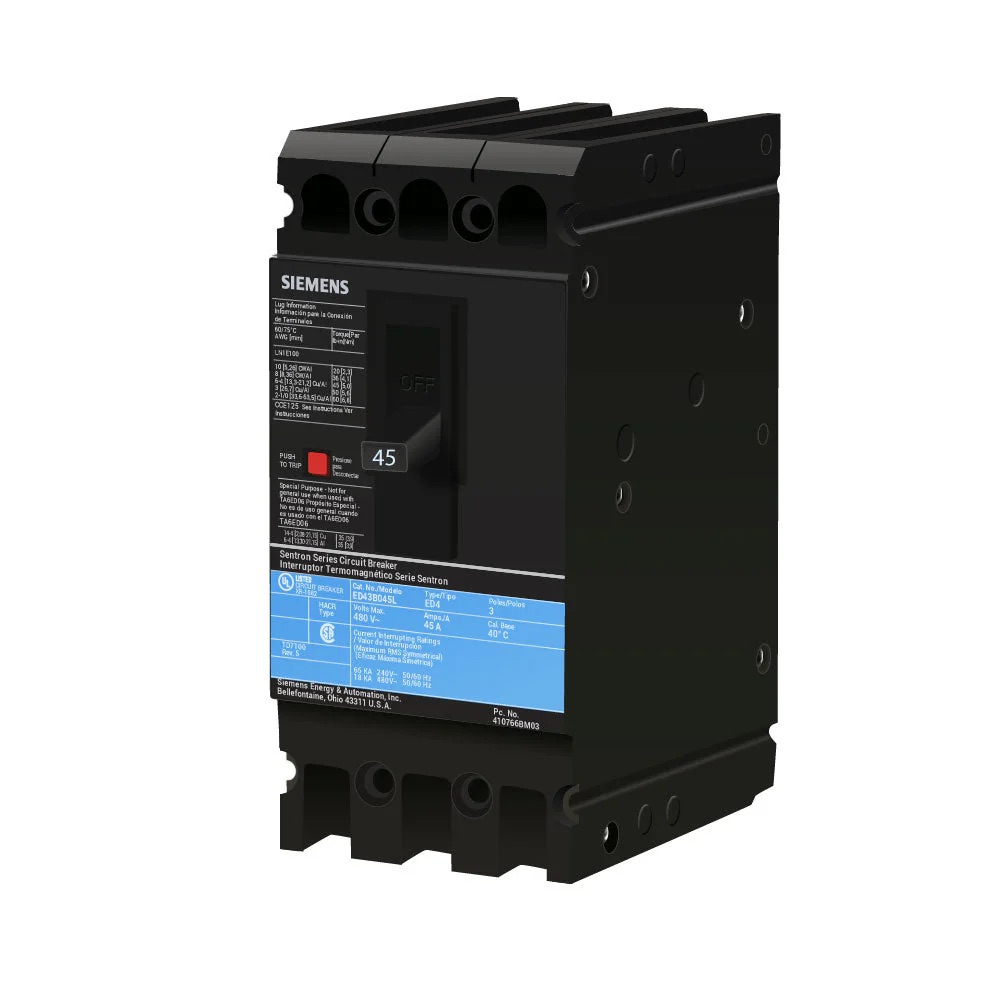

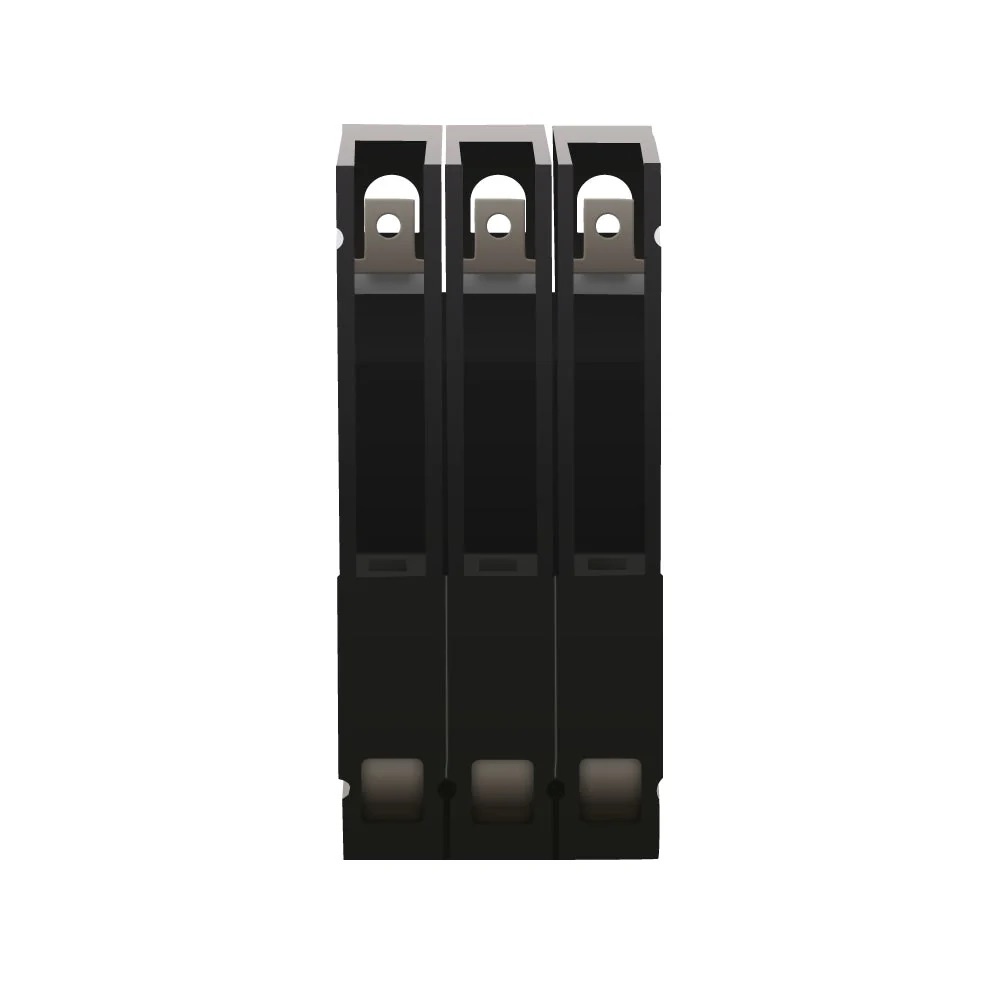

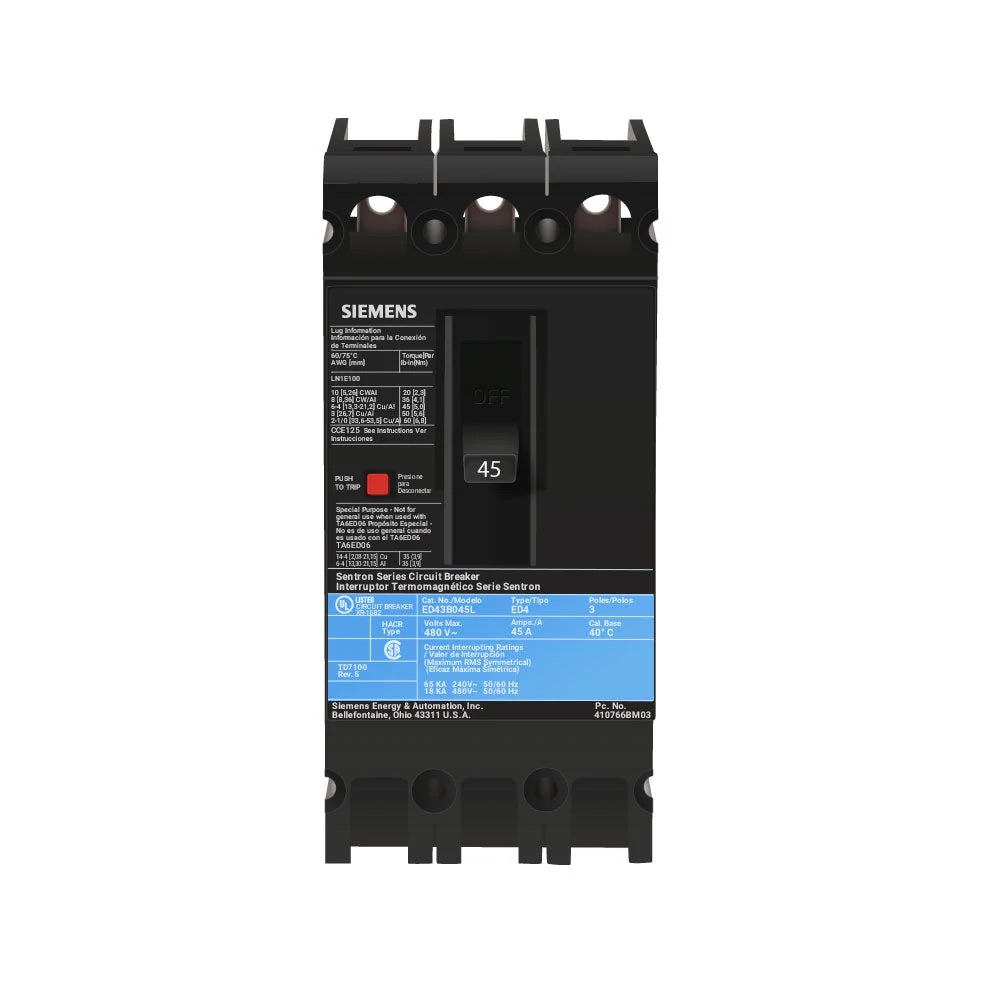

Siemens ED43B045 is a 3 Pole thermal magnetic molded case circuit breaker with a current rating of 45 Amps and a voltage rating of 480V. It has an interrupting rating of 18kAIC at 480V. The ED43B045 has a feed-thru connection type and includes long time and instantaneous trip functions.
$197.99
| Brand | Siemens |
| Series | Sentron |
| Amperage | 45 |
| Voltage | 480VAC |
| Poles | 3 |
| Phase | 3 |
| Mounting Type | Lug In Panelboard |
| Approval | UL, IEC |
| Interrupting Rating | 18kAIC at 480VAC |
| Frame Type | ED |
| Connection Type | Bolt-On |
| Protection | Thermal Magnetic |
| Functions | Long Time and Instantaneous Trip |
| Terminal Connection | Load Side Lug |
| Length (in) | 3.92 |
| Width (in) | 3 |
| Height (in) | 6.35 |
| Wire Gauge | AWG 10 to AWG 1/0, Cu/Al |
| For Use With | SB Switchboards, Sentron Panelboards |
| Standards | HACR, RoHS |
| Temperature Rating | 40 °C |
| Circuit Breaker Type | Standard |
| Actuator Type | Toggle |
| Max Wire Size | AWG 1/0 |
| Min Wire Size | AWG 10 |
| Mpn | ED43B045 |
