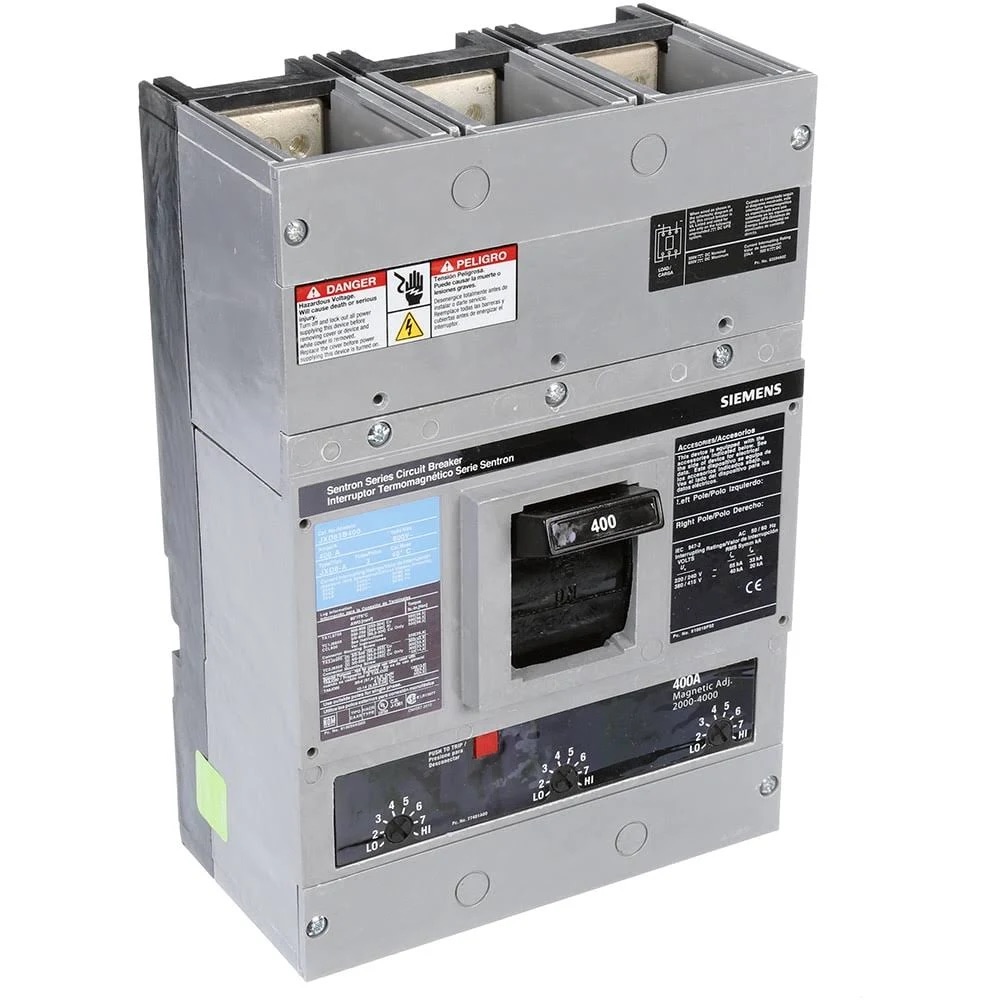

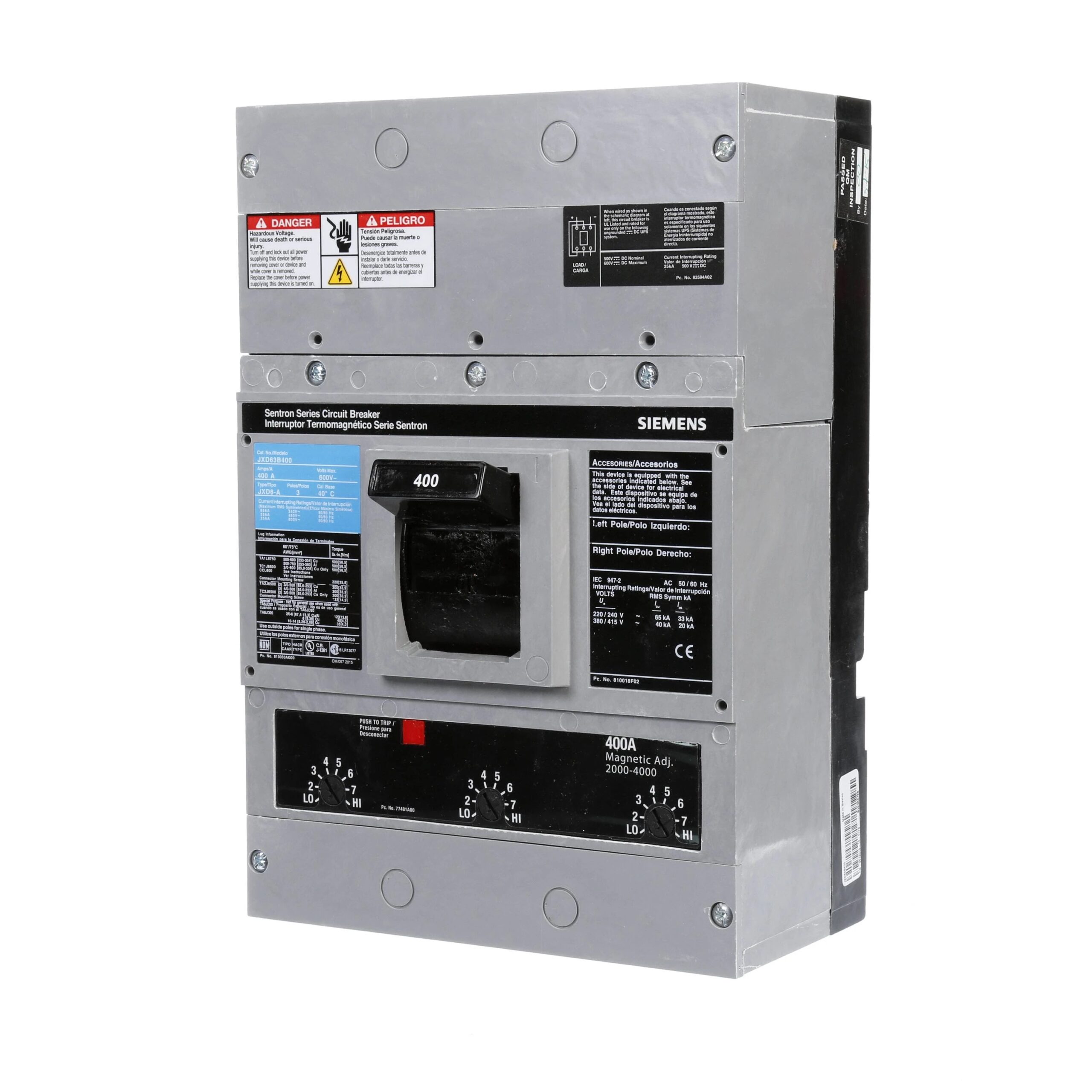

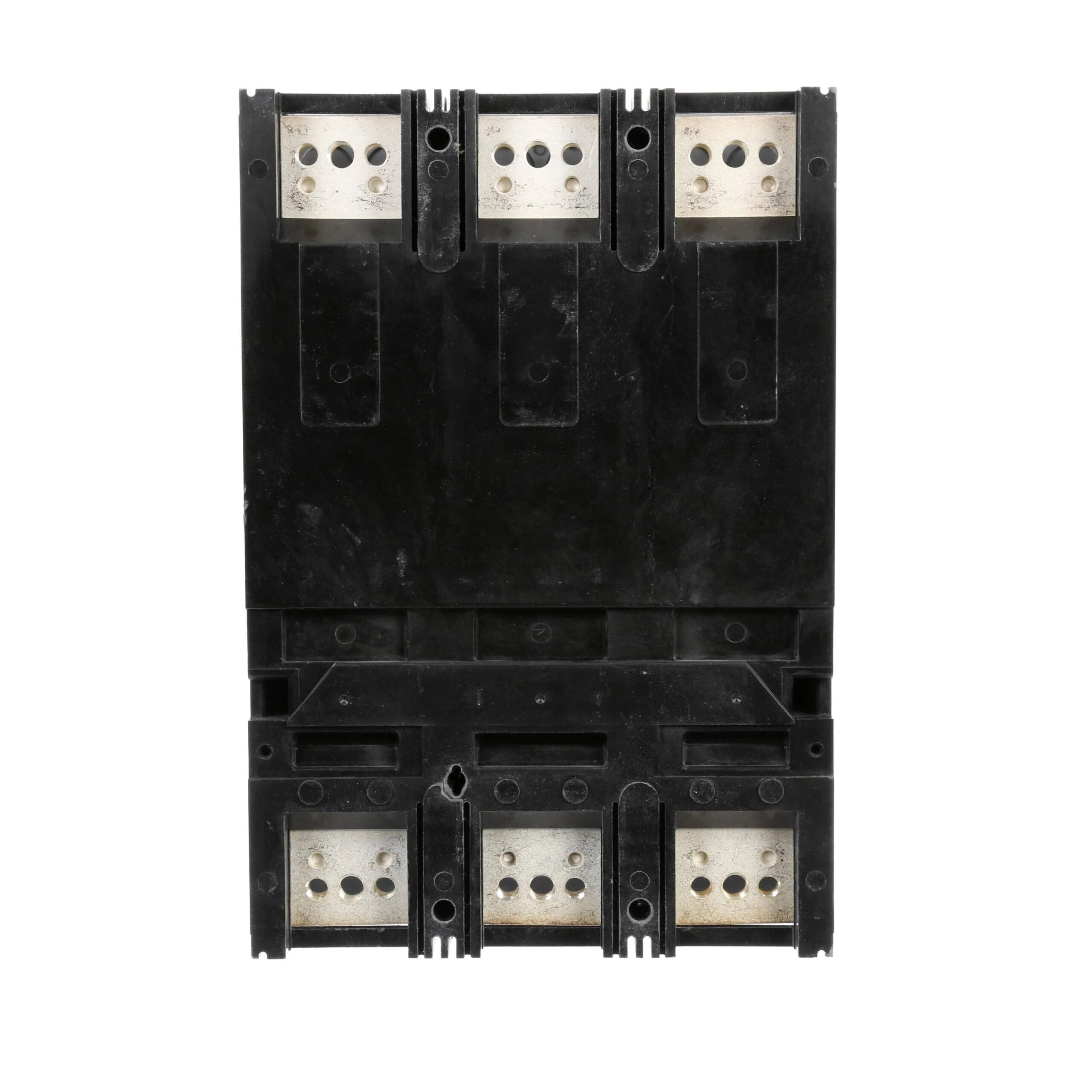

The Siemens JXD63B400 is a 3 Pole thermal magnetic molded case circuit breaker with a current rating of 400 Amps and a voltage rating of 600VAC. It has an interrupting rating of 25kAIC at 600V, 35kAIC at 480V. The JXD63B400 has a bolt-on connection type and includes long time and instantaneous trip functions.
$534.99
| Type | Molded Case- Thermal Magnetic |
| Frame Type | JD |
| Voltage Rating | 600 Volt AC- 500 Volt DC |
| Maximum AC Voltage Rating | 600 Volt |
| Current Rating | 400 Amp |
| Number of Poles | 3 |
| Interrupting Rating | 65 Kiloamp at 240 Volt AC- 35 Kiloamp at 480 Volt AC- 25 Kiloamp at Volt AC- 25 Kiloamp at 500 Volt DC (UL 489)- 65 Kiloamp at 220/240 Volt AC- 40 Kiloamp at 380/415 Volt AC (IEC) |
| Terminal Type | Not Included |
| Size | 7.5 Inch Width x 5.44 Inch Depth x 11 Inch Height |
| Approval | UL 489 |
| Brand Name | Sentron® |
| Model | JXD6-A |
| Additional Information | RoHS Compliant- Label Color Blue- Applicable Standard IEC 60947-2 |
| Features/Benefits | RoHS Compliant |
