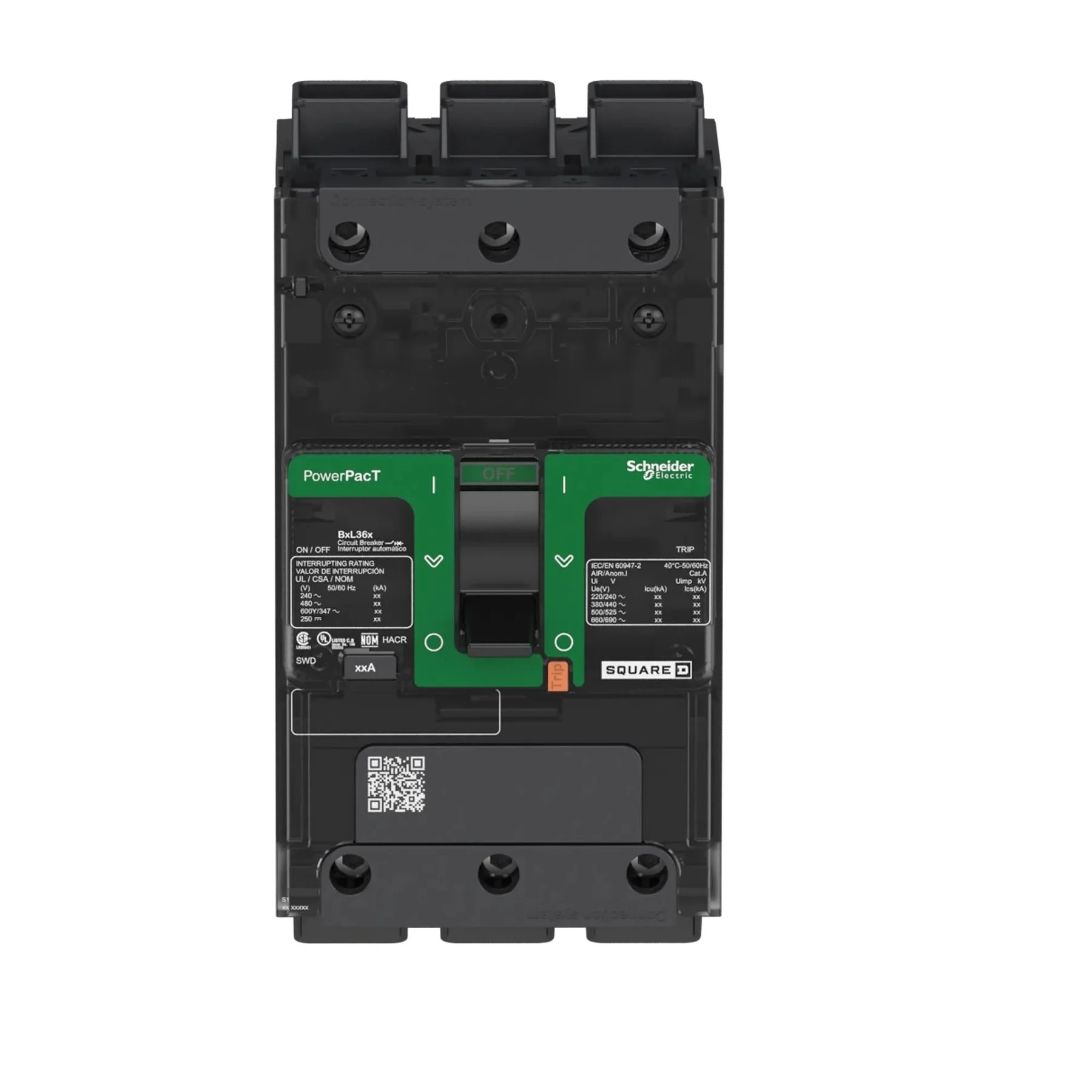

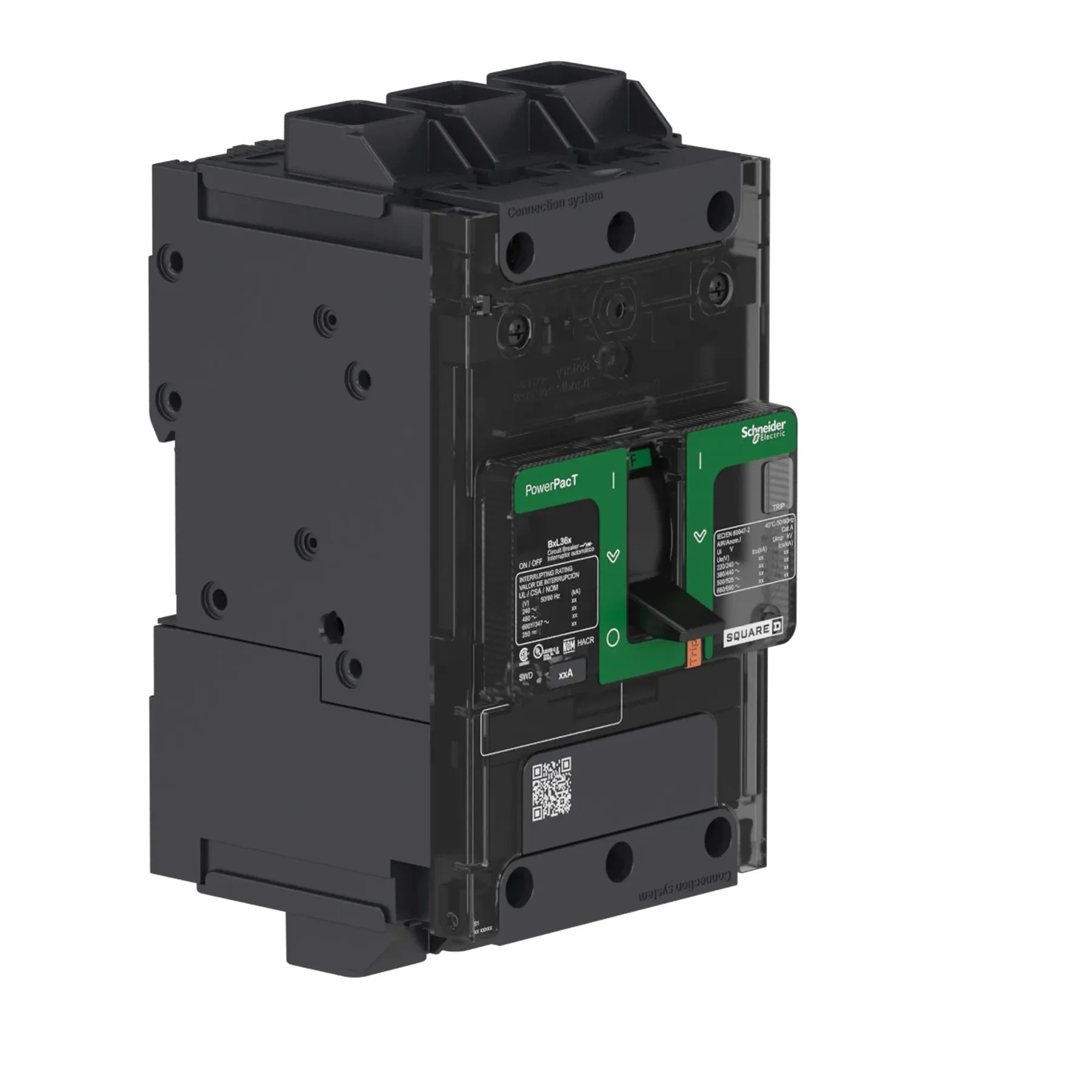

The Square D BJL36030 is a 3 Pole thermal magnetic molded case circuit breaker with a current rating of 30 Amps and a voltage rating of 600V. It has an interrupting rating of 25kA. The BJL36030 has a din rail mounting type and includes LI - long time and instantaneous functions.
$197.99
| Brand | Square D/Schneider Electric |
| Series | BJL |
| Amperage | 30 |
| Voltage | 600 |
| Poles | 3 |
| Phase | 3 |
| Mounting Type | Clip-on 35 x 15 mm symmetrical DIN rail, By screws plate |
| Approval | UL, IEC, CCC, EAC, CSA, NOM |
| Interrupting Rating | 25kA |
| Frame Type | B |
| Connection Type | Everlink Lug |
| Protection | Thermal Magnetic |
| Functions | LI - Long-Time and Instantaneous |
| Terminal Connection | Everlink Lug Both Ends |
| Length (in) | 3.15 |
| Width (in) | 3.19 |
| Height (in) | 5.39 |
| Wire Gauge | AWG 6, AWG 2/0 fine stranded Aluminium/Copper, AWG 14, AWG 3/0 rigid or stranded Aluminium/Copper |
| For Use With | Electrical Distribution Equipment, Industrial Control Panels |
| Temperature Rating | -13 to 158 °F (-25 to 70 °C) |
| Circuit Breaker Type | Standard |
| Actuator Type | Toggle |
| Max Wire Size | 2 AWG, 3 AWG |
| Min Wire Size | 14 AWG, 6 AWG |
| Color | Gray RAL 7016 |
| Mpn | BJL36030 |
