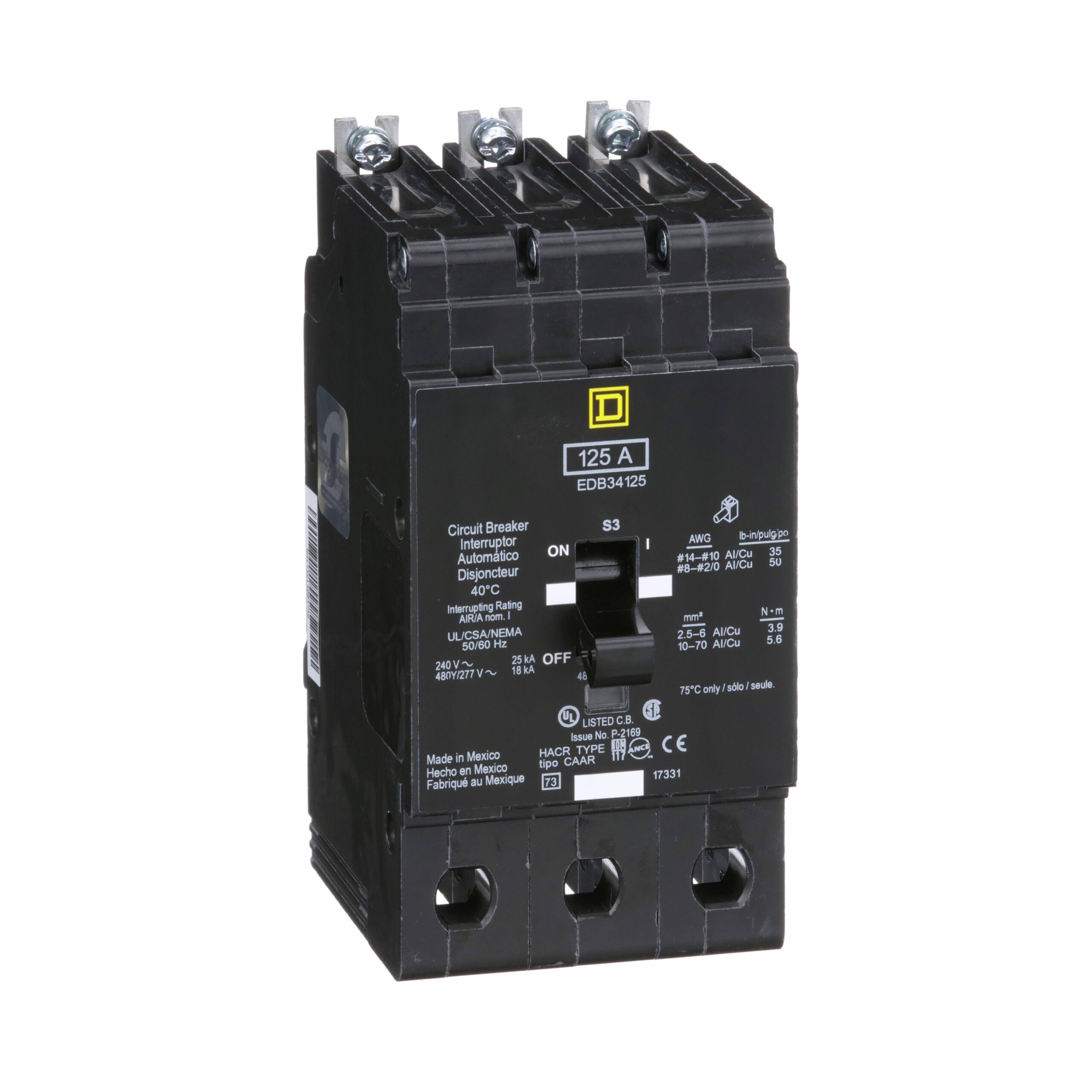

The Square D EDB34125 is a 3 Pole thermal magnetic molded case circuit breaker with a current rating of 125 Amps and a voltage rating of 480Y/277VAC, 125/250VDC. It has an interrupting rating of 18kAIC at 480Y/277VAC. The EDB34125 has a bolt-on connection type and includes LI - long-time and instantaneous trip functions.
$565.99
| Brand | Square D |
| Series | EDB |
| Amperage | 125 |
| Voltage | 480Y/277VAC, 125/250VDC |
| Poles | 3 |
| Phase | 3 |
| Mounting Type | Bolt-On |
| Approval | cULus |
| Interrupting Rating | 18kAIC at 480Y/277VAC |
| Frame Type | EDB |
| Connection Type | Bolt-On |
| Protection | Thermal Magnetic |
| Functions | LI - Long-Time and Instantaneous Trip |
| Terminal Connection | Load Side Lug |
| Length (in) | 4.05 |
| Width (in) | 2.94 |
| Height (in) | 5.66 |
| Wire Gauge | AWG 12 to AWG 2/0, Aluminum, AWG 14 to AWG 2/0, Copper |
| For Use With | NF Panelboards |
| Standards | HACR |
| Temperature Rating | 40 °C |
| Circuit Breaker Type | Standard |
| Actuator Type | Toggle |
| Max Wire Size | 2 AWG |
| Min Wire Size | 12 AWG (Al), 14 AWG (Cu) |
| Mpn | EDB34125 |
