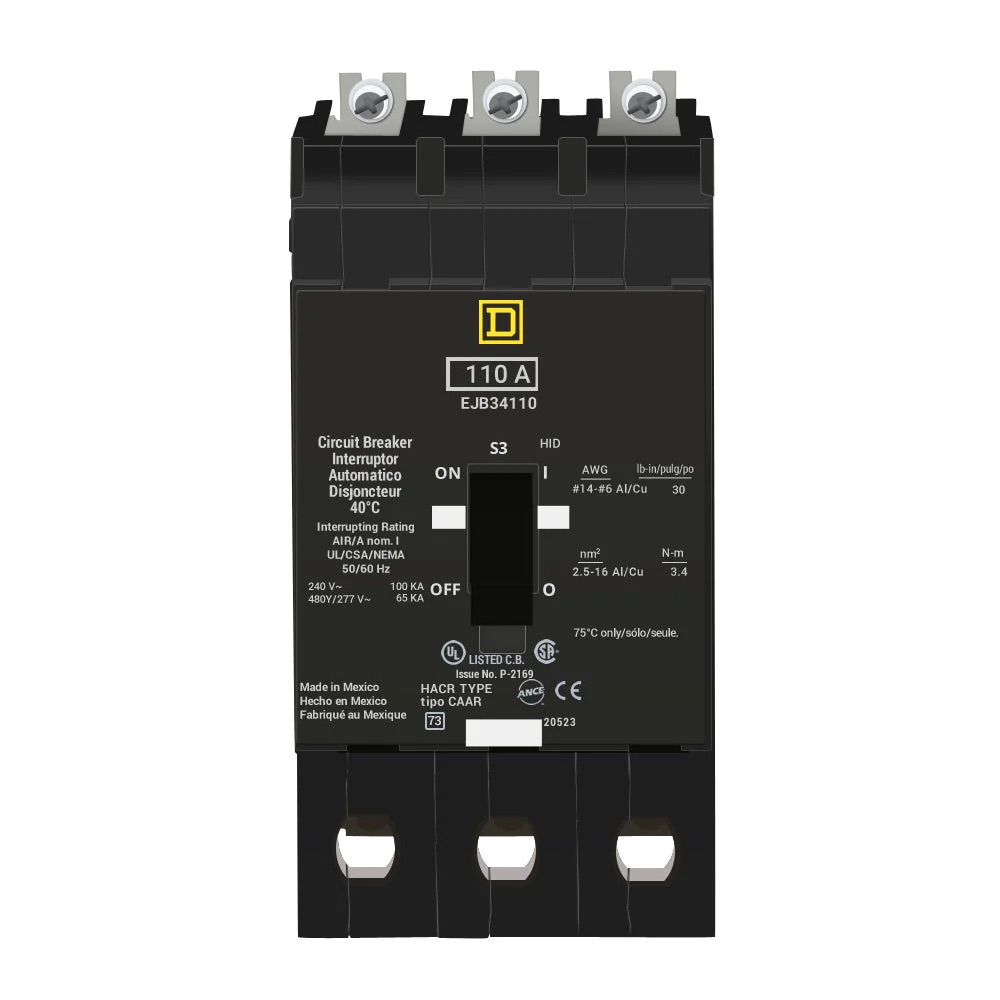

EJB34110 - Square D - Circuit Breaker Bolt-On - 110 Amp - 3 Pole - 480V

PRODUCT DESCRIPTION

The Square D EJB34110 is a 3 Pole thermal magnetic molded case circuit breaker with a current rating of 110 Amps and a voltage rating of 480Y/277VAC. It has an interrupting rating of 65kA at 120/240/277VAC, 100kA at 120VAC. The EJB34110 has a bolt-on connection type and includes long time and instantaneous trip functions.

SKU: EJB34110 Categories: ,

EJB34110 - Square D - Circuit Breaker Bolt-On - 110 Amp - 3 Pole - 480V

$994.99

Free shipping on orders over $200

SPECIFICATIONS

Brand Square D
Series EJB
Amperage 110
Voltage 480Y/277VAC
Poles 3
Phase 3
Approval UL, CSA, CULus
Interrupting Rating 65kA at 120/240/277VAC, 100kA at 120VAC
Frame Type EJB
Connection Type Bolt-On
Protection Thermal Magnetic
Functions Long Time and Instantaneous Trip
Terminal Connection Lug
Wire Gauge AWG 12 to AWG 2/0 Aluminum, AWG 14 to AWG 2/0 Copper
For Use With NF Panelboard
Standards RoHS
Temperature Rating 104°F (40°C)
Mpn EJB34110
