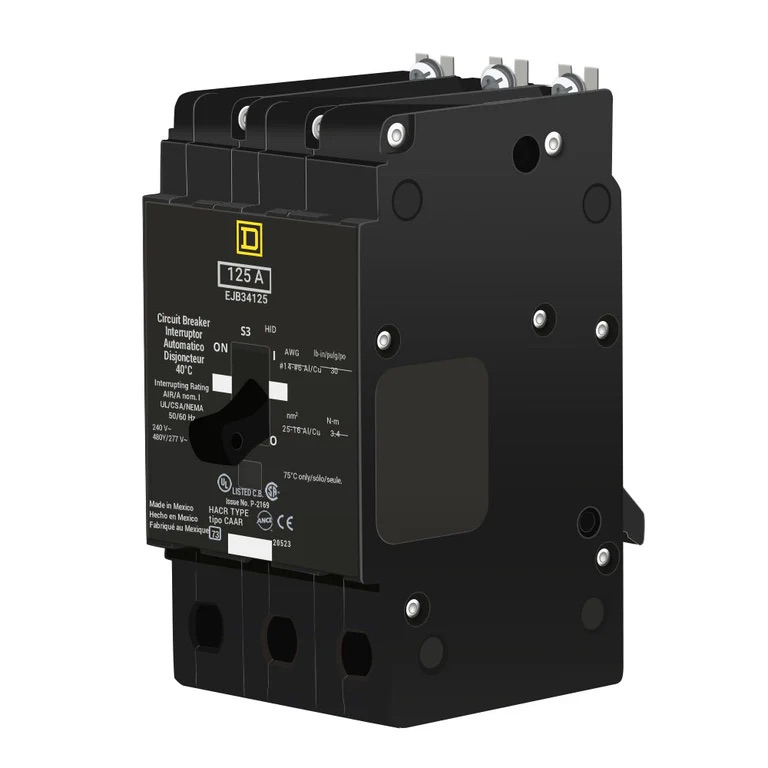

EJB34125 - Square D - Molded Case Circuit Breaker Bolt-On - 125 Amp - 3 Pole - 480 Volt

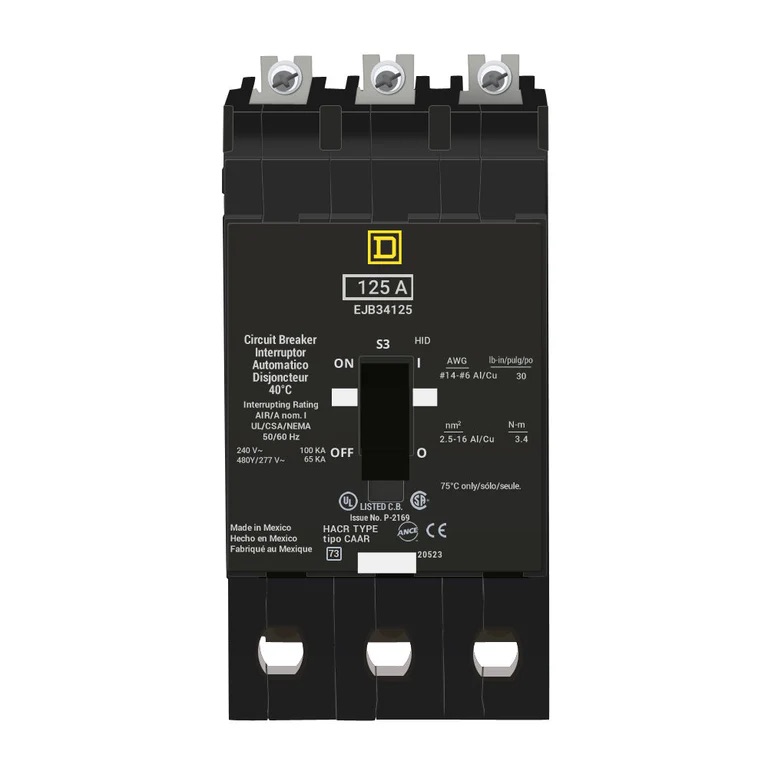

EJB34125 - Square D - Molded Case Circuit Breaker Bolt-On - 125 Amp - 3 Pole - 480 Volt - Image 2

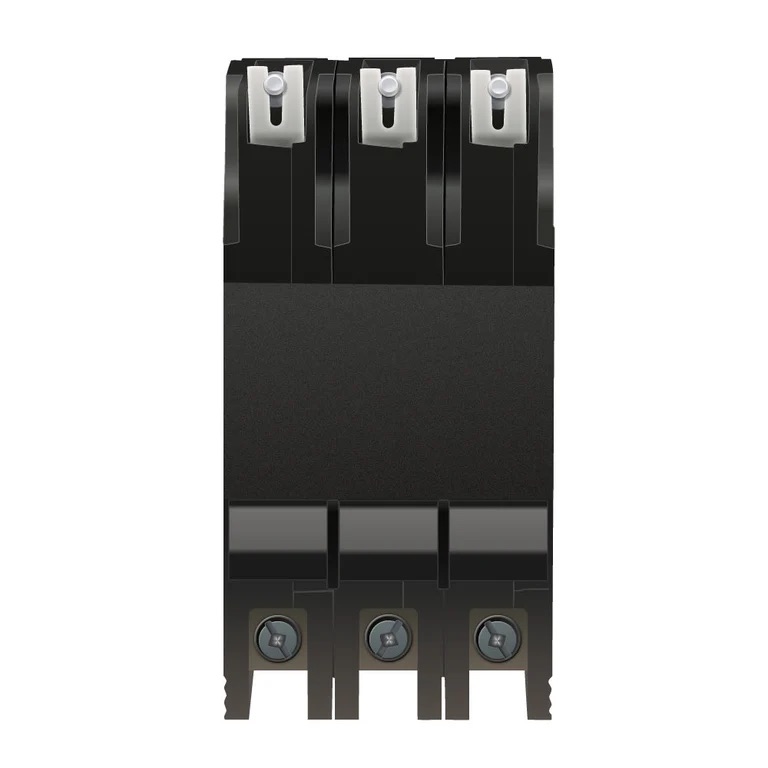

EJB34125 - Square D - Molded Case Circuit Breaker Bolt-On - 125 Amp - 3 Pole - 480 Volt - Image 3

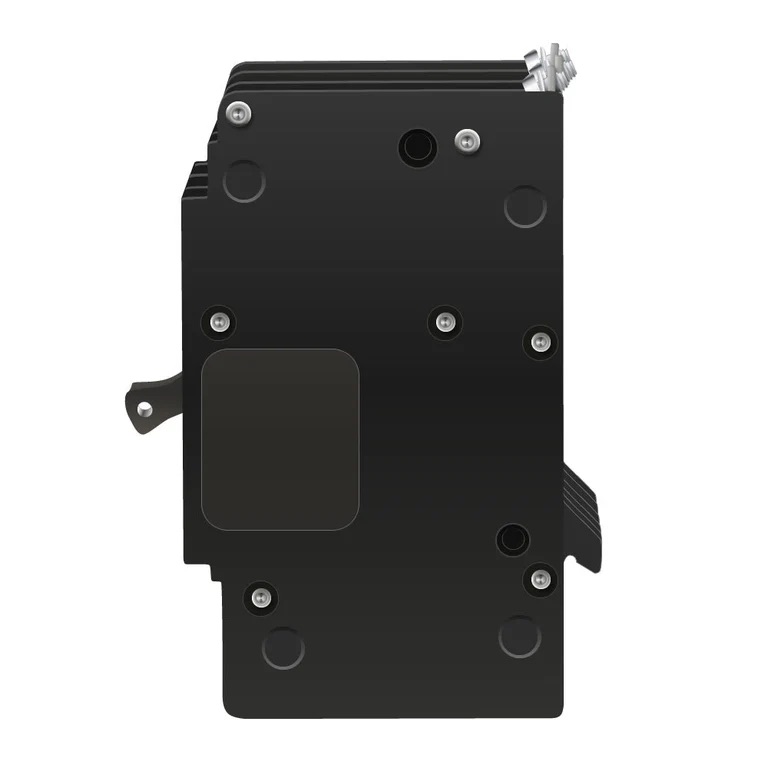

EJB34125 - Square D - Molded Case Circuit Breaker Bolt-On - 125 Amp - 3 Pole - 480 Volt - Image 4

PRODUCT DESCRIPTION

The Square D EJB34125 is a 3 Pole thermal magnetic molded case circuit breaker with a current rating of 125 Amps and a voltage rating of 480Y/277VAC. It has an interrupting rating of 65kAIC at 480Y/277VAC. The EJB34125 has a bolt-on connection type and includes LI - long-time and instantaneous trip functions.

SKU: EJB34125 Categories: ,

EJB34125 - Square D - Molded Case Circuit Breaker Bolt-On - 125 Amp - 3 Pole - 480 Volt

$837.99

Free shipping on orders over $200

SPECIFICATIONS

Brand Square D
Series EJB
Amperage 125
Voltage 480Y/277VAC
Poles 3
Phase 3
Mounting Type Bolt-On
Approval cULus
Interrupting Rating 65kAIC at 480Y/277VAC
Frame Type EJB
Connection Type Bolt-On
Protection Thermal Magnetic
Functions LI - Long-Time and Instantaneous Trip
Terminal Connection Lugs Aluminum
Length (in) 4.05
Width (in) 2.94
Height (in) 5.66
Wire Gauge AWG 12 to AWG 2/0, Aluminum, AWG 14 to AWG 2/0, Copper
For Use With NF Panelboard
Standards HACR
Temperature Rating 40 °C
Mpn EJB34125
