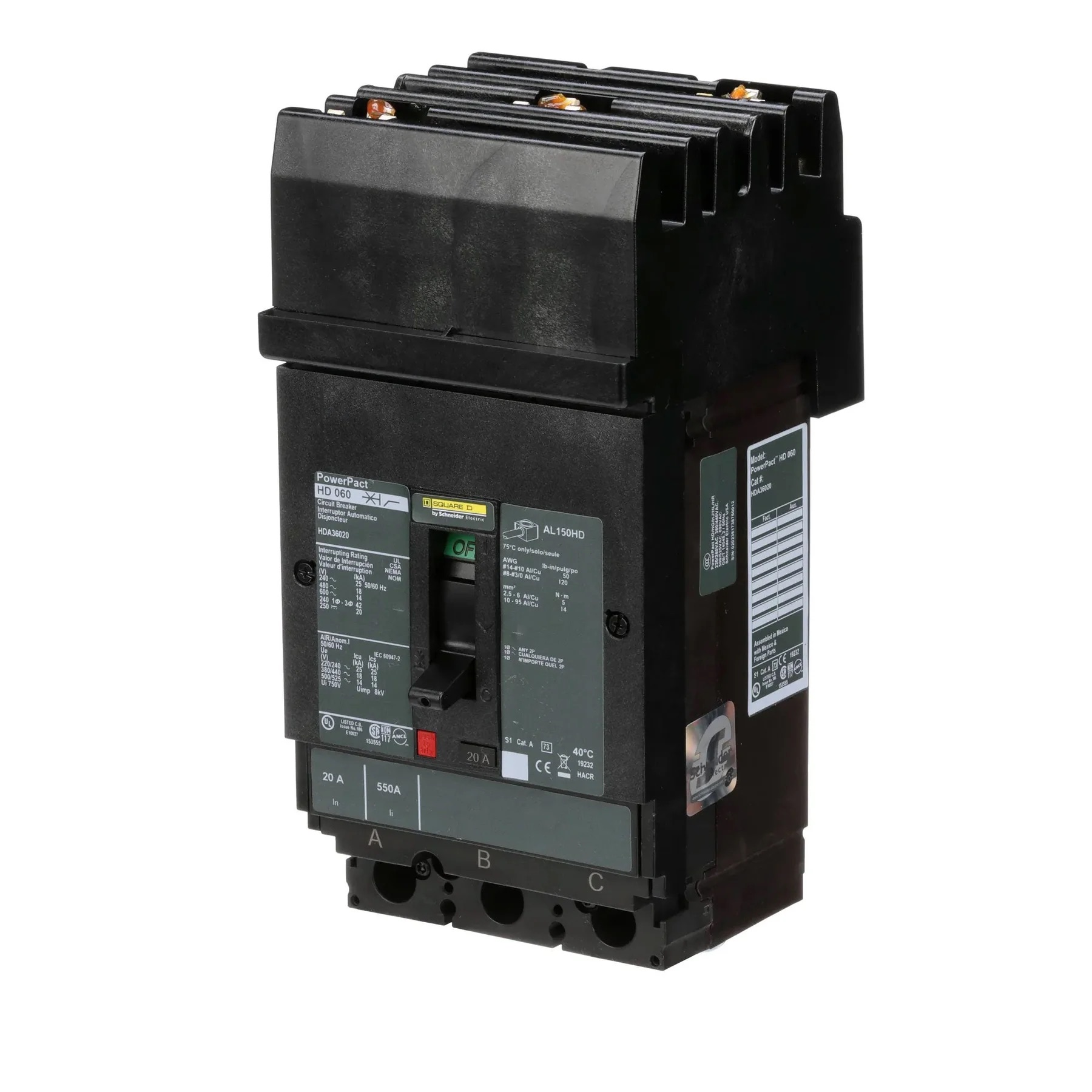

HDA36020 - Square D - Molded Case Circuit Breaker I-Line Plug-In - 20 Amp - 3 Pole - 600 Volt

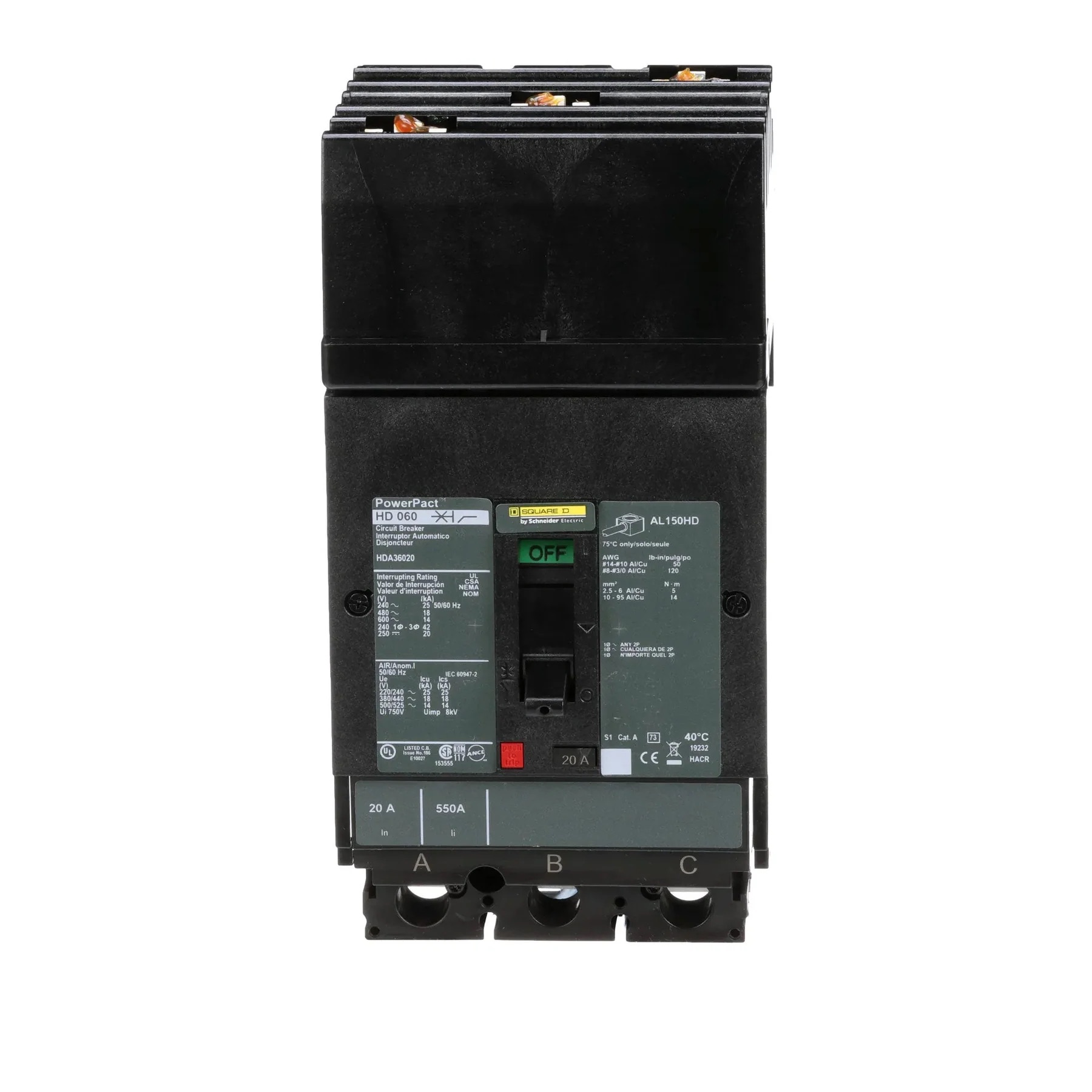

HDA36020 - Square D - Molded Case Circuit Breaker I-Line Plug-In - 20 Amp - 3 Pole - 600 Volt - Image 2

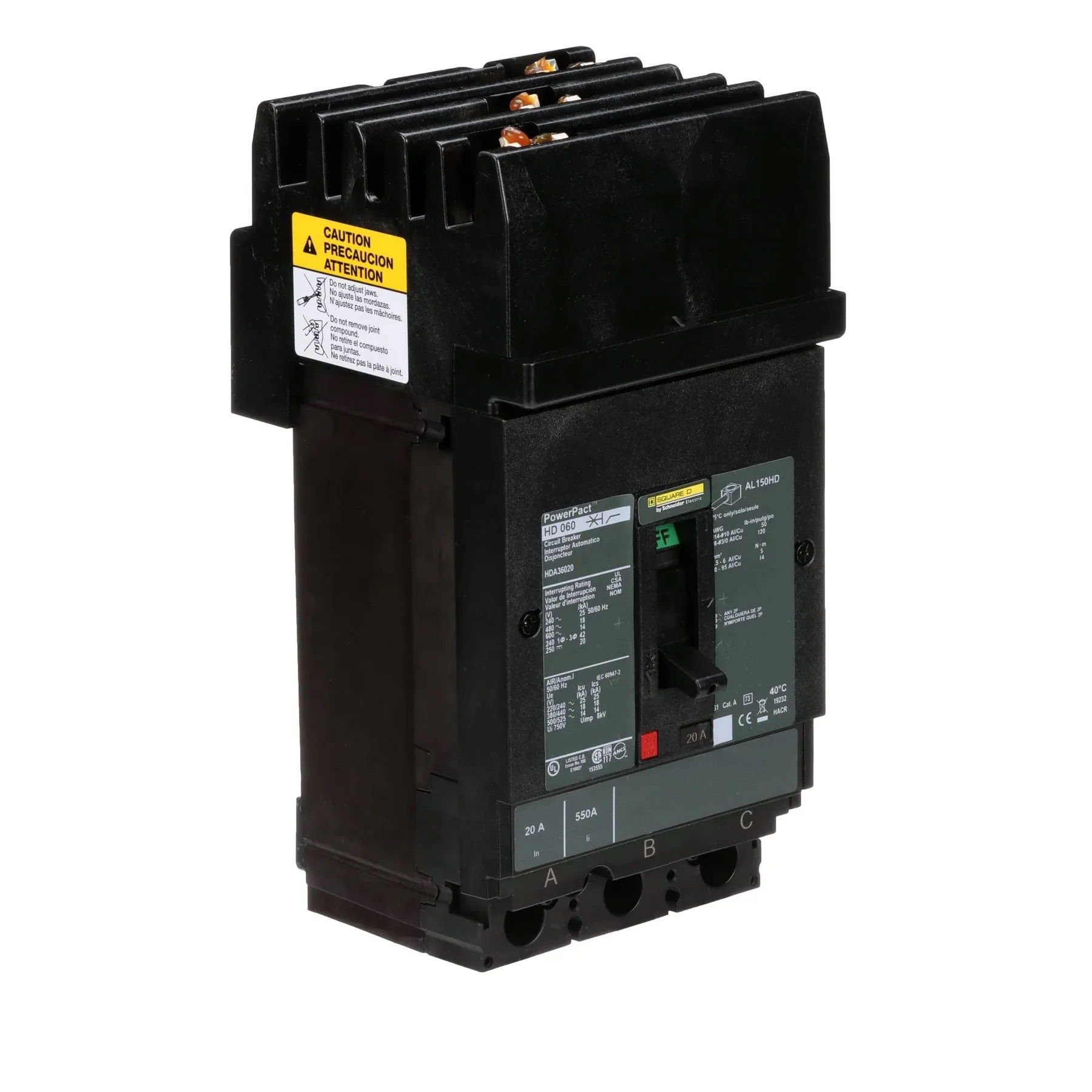

HDA36020 - Square D - Molded Case Circuit Breaker I-Line Plug-In - 20 Amp - 3 Pole - 600 Volt - Image 3

PRODUCT DESCRIPTION

The Square D HDA36020 is a 3 Pole thermal magnetic molded case circuit breaker with a current rating of 20 Amps and a voltage rating of 600/690VAC. It has an interrupting rating of 18kAIC at 480VAC. The HDA36020 has an I-Line style plug-in connection type and includes LI - long-time and instantaneous trip functions.

SKU: HDA36020 Categories: , ,

HDA36020 - Square D - Molded Case Circuit Breaker I-Line Plug-In - 20 Amp - 3 Pole - 600 Volt

$504.99

Free shipping on orders over $200

SPECIFICATIONS

Brand Square D
Series PowerPacT H
Amperage 20
Voltage 600/690VAC
Poles 3
Phase 3
Mounting Type I-Line Bracket
Approval CE, UL, CSA, NEMA, NOM, IEC
Interrupting Rating 18kAIC at 480VAC
Frame Type HDA
Connection Type I-Line Style Plug-In
Protection Thermal Magnetic
Functions LI - Long-Time and Instantaneous Trip
Terminal Connection Load Side Lug
Length (in) 3.4
Width (in) 4.09
Height (in) 6.4
Wire Gauge AWG 14 to AWG 3/0, Aluminum/Copper
Standards HACR
Temperature Rating -25 to 70 °C
Actuator Type Toggle
Mpn HDA36020
