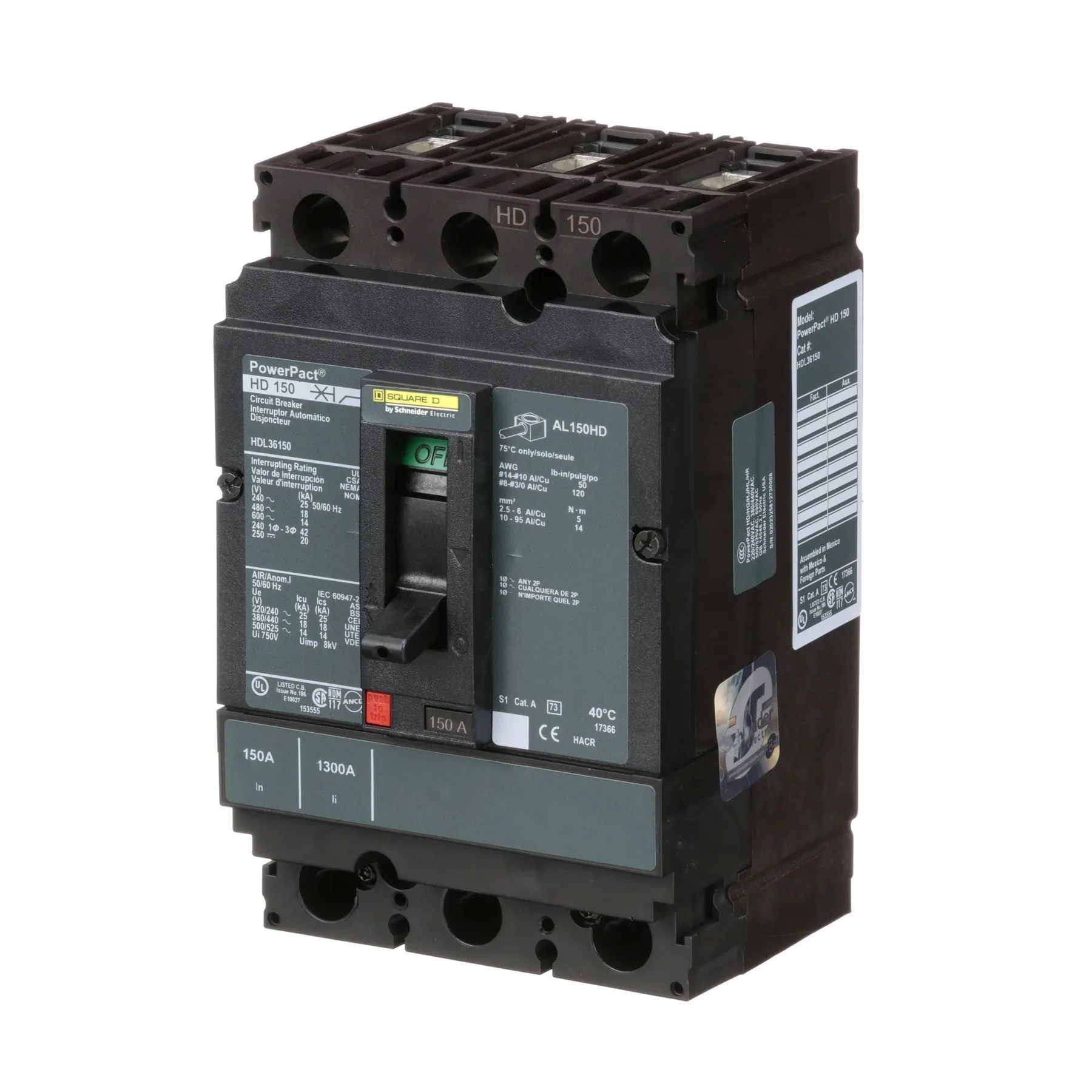

HDL36150 - Square D - Molded Case Circuit Breaker Feed-Thru - 150 Amp - 3 Pole - 600 Volt

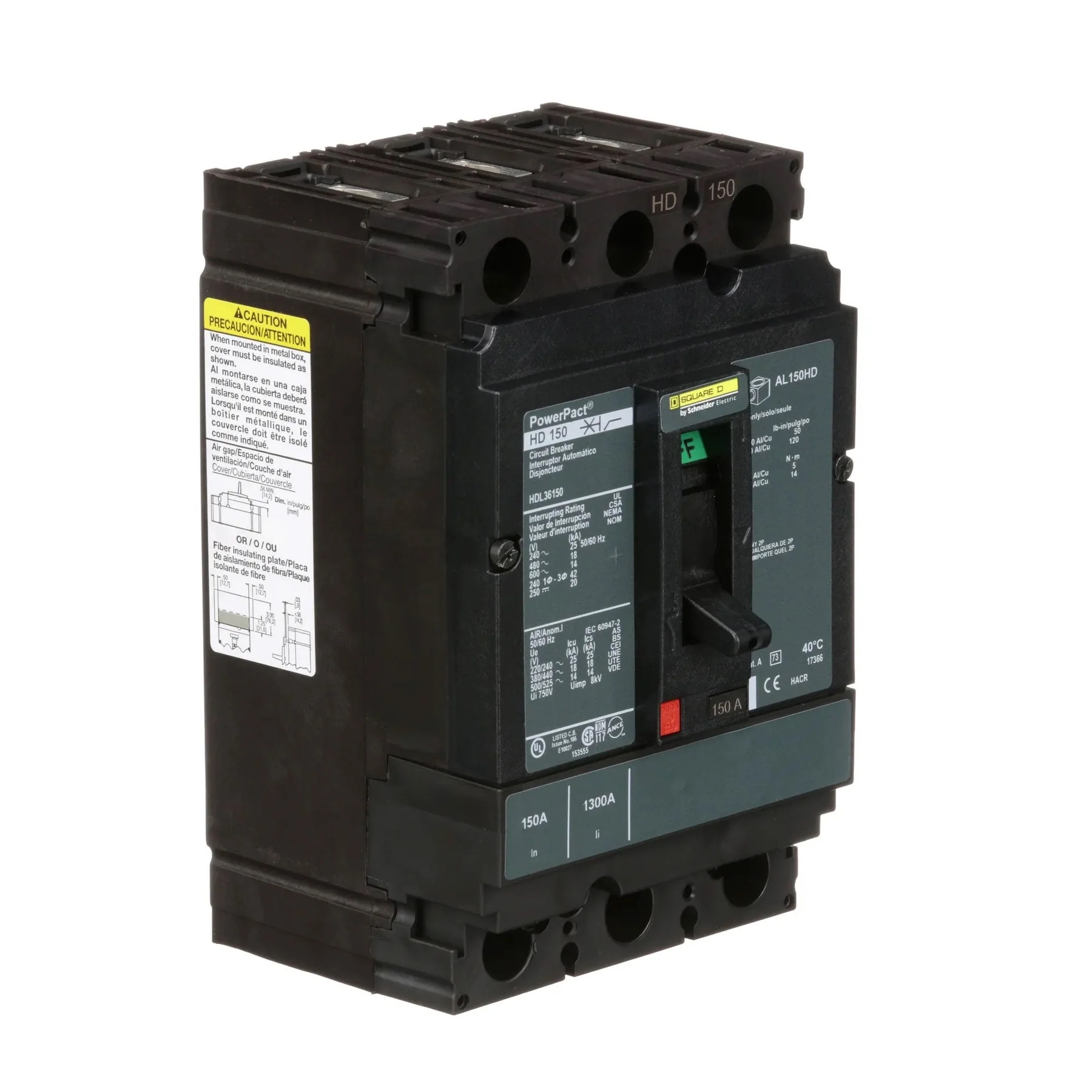

HDL36150 - Square D - Molded Case Circuit Breaker Feed-Thru - 150 Amp - 3 Pole - 600 Volt - Image 2

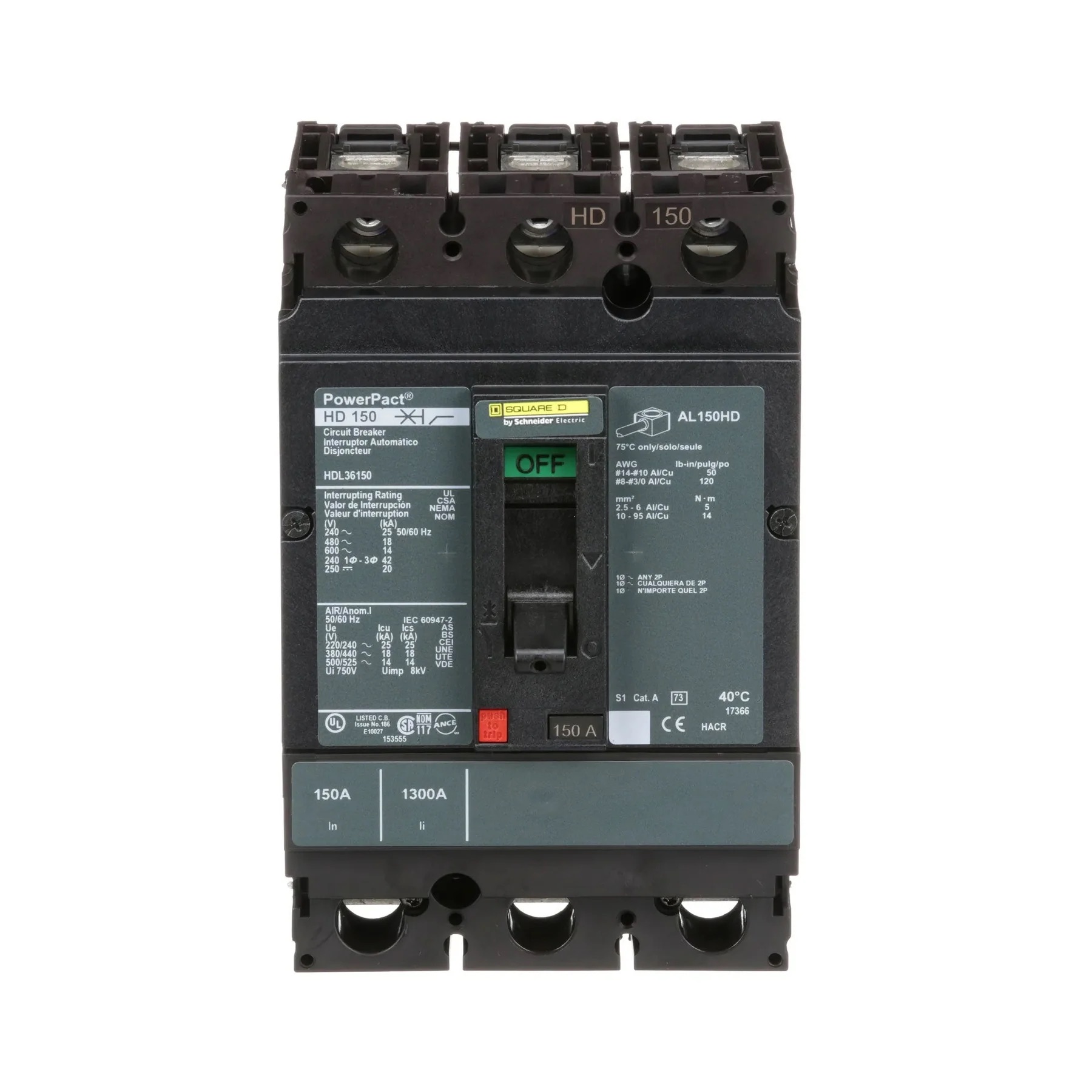

HDL36150 - Square D - Molded Case Circuit Breaker Feed-Thru - 150 Amp - 3 Pole - 600 Volt - Image 3

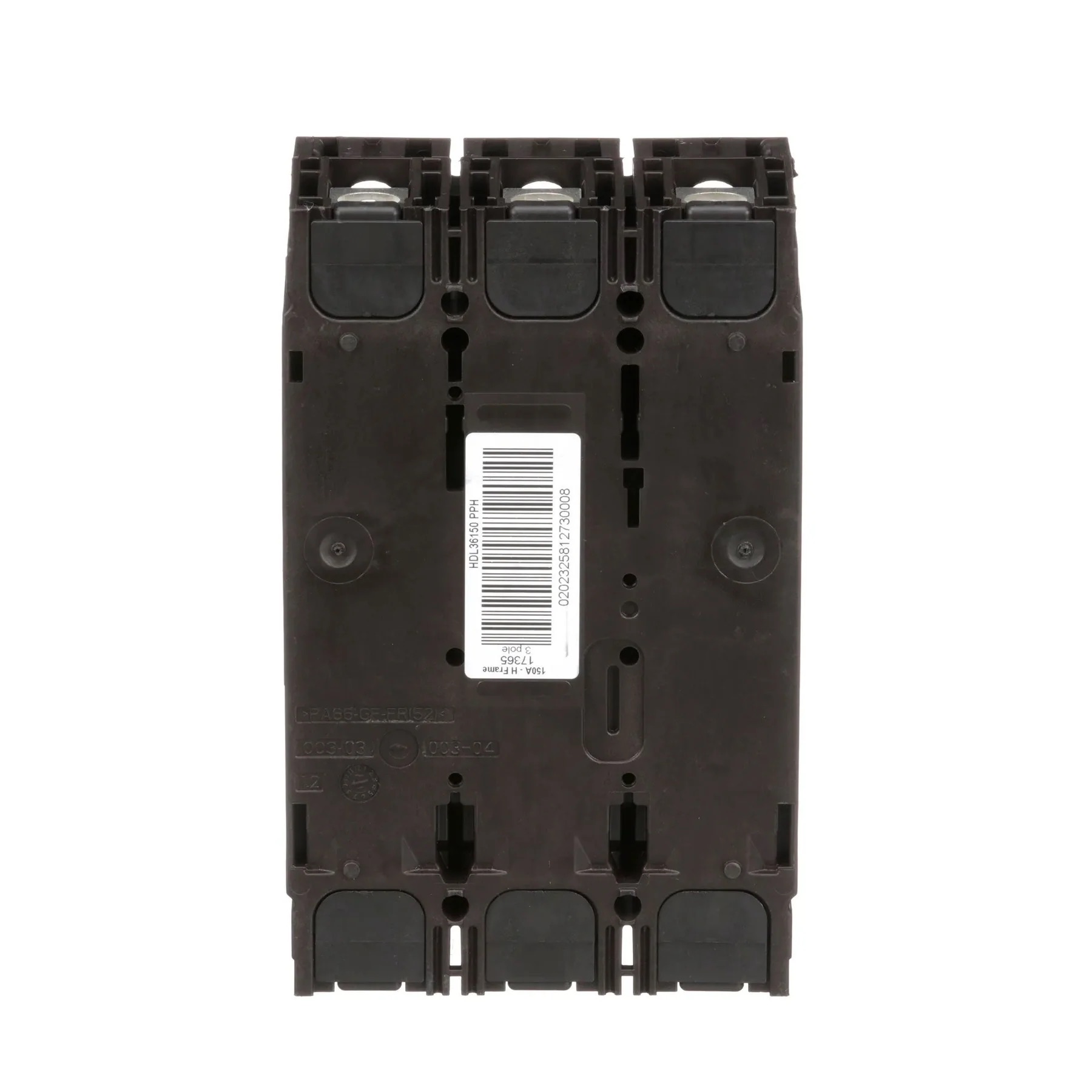

HDL36150 - Square D - Molded Case Circuit Breaker Feed-Thru - 150 Amp - 3 Pole - 600 Volt - Image 4

PRODUCT DESCRIPTION

The Square D HDL36150 is a 3 Pole thermal magnetic molded case circuit breaker with a current rating of 150 Amps and a voltage rating of 600/690VAC. It has an interrupting rating of 18kAIC at 480VAC. The HDL36150 has a feed-thru connection type and includes LI - long-time and instantaneous trip functions.

SKU: HDL36150 Categories: ,

HDL36150 - Square D - Molded Case Circuit Breaker Feed-Thru - 150 Amp - 3 Pole - 600 Volt

$524.99

Free shipping on orders over $200

SPECIFICATIONS

Brand Square D
Series PowerPacT H
Amperage 150
Voltage 600/690VAC
Poles 3
Phase 3
Mounting Type Unit
Approval CE, UL, CSA, NEMA, NOM, IEC
Interrupting Rating 18kAIC at 480VAC
Frame Type HDL
Connection Type Feed-Thru
Protection Thermal Magnetic
Functions LI - Long-Time and Instantaneous Trip
Terminal Connection Line and Load Side Lug
Length (in) 3.4
Width (in) 4.09
Height (in) 6.4
Wire Gauge AWG 14 to AWG 3/0, Aluminum/Copper
Standards HACR
Temperature Rating -25 to 70 °C
Actuator Type Toggle
Mpn HDL36150
