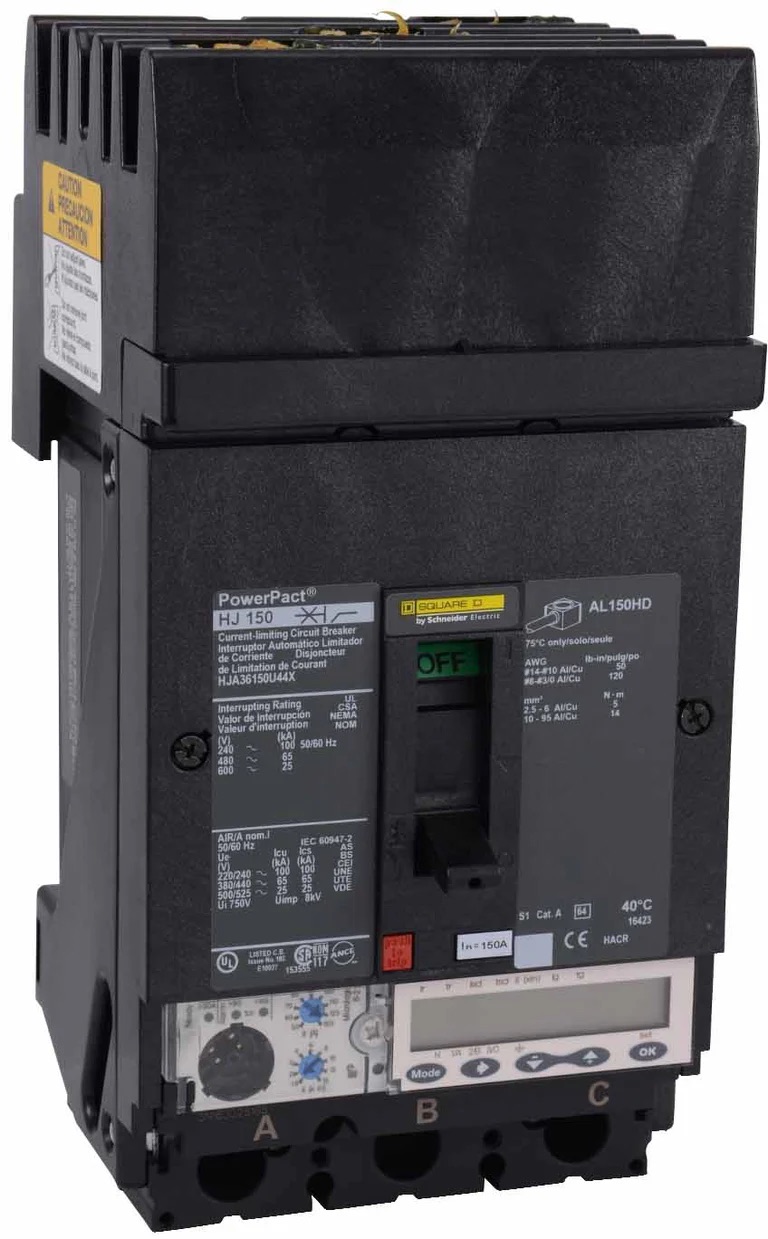

The Square D HJA36150U44X is a 3 Pole solid state molded case circuit breaker with a current rating of 150 Amps and a voltage rating of 600V. It has an interrupting rating of 100kA at 240VAC, 65kA at 480VAC, 25kA at 600VAC. The HJA36150U44X has a I-Line style plug-in connection type and includes LSIG - long time, short time, instantaneous and ground fault functions.
$3,499.99
| Brand | Square D |
| Series | HJA |
| Amperage | 150 |
| Voltage | 600 |
| Poles | 3 |
| Phase | 3 |
| Mounting Type | I-Line |
| Approval | UL, CSA, IEC, CE, CCC |
| Interrupting Rating | 100 kA 240 V AC, 65 kA 480 V AC, 25 kA 600 V AC |
| Frame Type | HJA |
| Accessories | HJA36150U44X-R |
| Connection Type | I-Line Style Plug-In |
| Protection | Solid State |
| Functions | LSIG - Long-Time, Short-Time, Instantaneous and Ground Fault |
| Terminal Connection | Lugs load |
| Length (in) | 4.8 |
| Width (in) | 4.48 |
| Height (in) | 9.73 |
| Wire Gauge | AWG 14, AWG 3/0 aluminium/copper |
| Mpn | HJA36150U44X |
