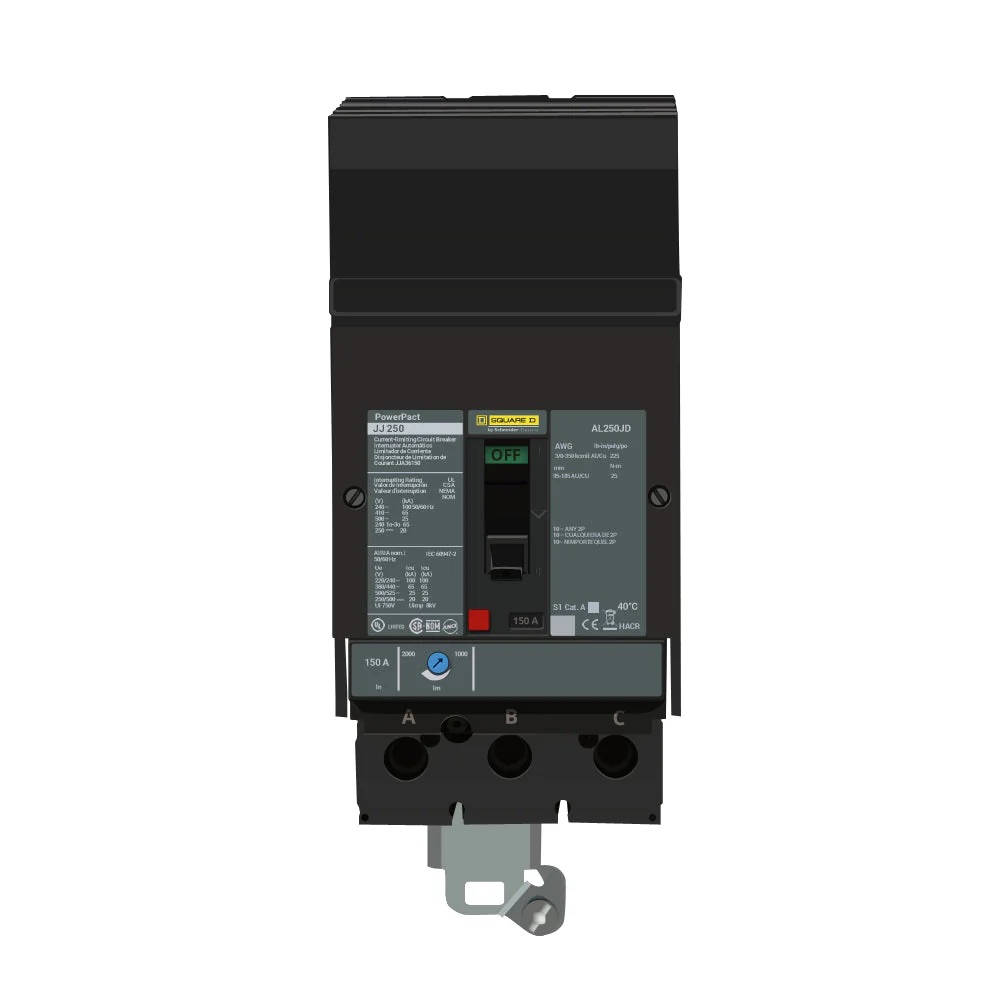

JJA36150 - Square D - Molded Case Circuit Breaker I-Line Plug-In - 150 Amp - 3 Pole - 600 Volt

PRODUCT DESCRIPTION

The Schneider Electric JJA36150 is a 3 Pole thermal magnetic molded case circuit breaker with a current rating of 150 Amps and a voltage rating of 600VAC. It has an interrupting rating of 65kAIC at 480V. The JJA36150 has an I-Line style plug-in connection type and includes long time and instantaneous trip functions.

SKU: JJA36150 Categories: , ,

JJA36150 - Square D - Molded Case Circuit Breaker I-Line Plug-In - 150 Amp - 3 Pole - 600 Volt

$1,102.99

Free shipping on orders over $200

SPECIFICATIONS

Brand Schneider Electric
Series JJA
Amperage 150
Voltage 600VAC
Poles 3
Phase 3
Mounting Type I-Line Bracket
Approval UL, CSA, CE, NEMA, NOM, IEC
Interrupting Rating 65kAIC at 480V
Frame Type JJA
Connection Type I-Line Style Plug-In
Protection Thermal Magnetic
Functions LI - Long-Time and Instantaneous Trip
Length (in) 3.4
Width (in) 4.09
Height (in) 7.5
Wire Gauge AWG 4 to AWG 4/0, Aluminum/Copper
Standards RoHS, HACR
Temperature Rating -25 to 70 °C
Actuator Type Toggle
