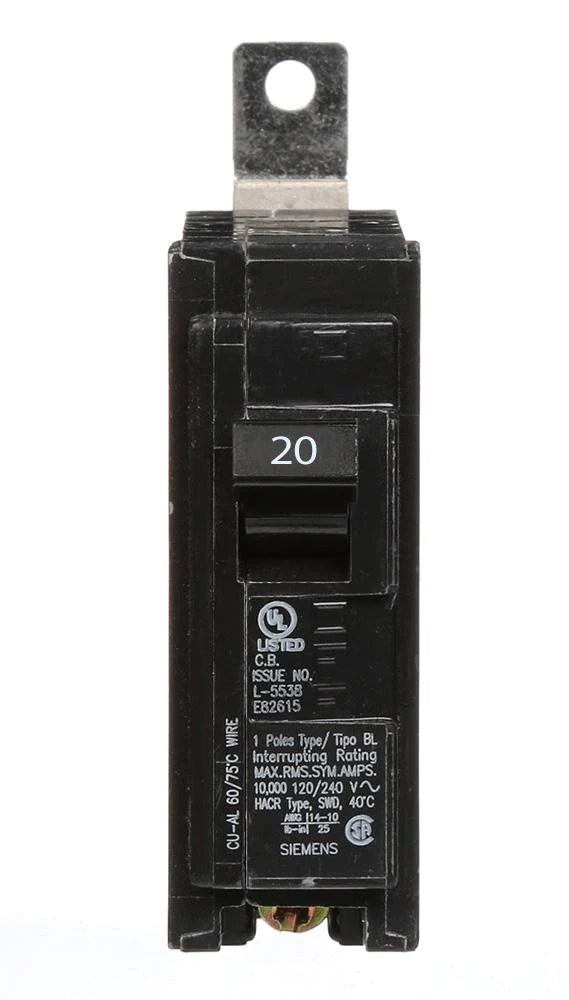

B120 - Siemens - 20 Amp Circuit Breaker Bolt-On - 20 Amp - 1 Pole - 120 Volt
New
$12.25
Sale price
$12.25
Regular price
Skip to product information
B120 - Siemens - 20 Amp Circuit Breaker Bolt-On - 20 Amp - 1 Pole - 120 Volt
$12.25
Sale price
$12.25
Regular price
Product images are representative only. Actual product may vary.
Description
Built for commercial applications, the Siemens B120 is a 1-pole, 20A molded case circuit breaker. It utilizes thermal-magnetic trip technology to provide dependable LI overcurrent protection. This BL-type bolt-on MCCB mounts into Siemens P1 through P5 panelboards. It serves as a reliable substitute for legacy BAB1020, TEB111020, and BDB120 breakers. Rated for 10 kAIC at 120/240VAC, the unit features Insta-Wire connectors for faster installation. It is fully HACR and SWD rated.Specifications
| Brand | Siemens |
|---|---|
| Part Number | B120 |
| Series | BL |
| Amperage | 20A |
| Poles | 1 |
| Mounting Style | Bolt-On |
| Voltage | 120/240VAC |
| Phase | 1 |
| AIC Rating | 10kA @ 120/240VAC |
| Frame Type | B |
|---|---|
| Terminal Type | Lugs |
| For Use With | Siemens P1, P2, P3, P4, P5 Panelboards |
| Wire Gauge | 14-10 AWG (Cu), 12-10 AWG (Al) |
| Max Wire | 10 AWG |
| Min Wire | 14 AWG (Cu), 12 AWG (Al) |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Alarm Switch, Padlock Attachment |
|---|---|
| Standards | CSA C22.2 No. 5, HACR, SWD, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, SWD Rated, Insta-Wire |
