B250 - Siemens - 50 Amp Circuit Breaker Bolt-On - 50 Amp - 2 Pole - 240 Volt
New
$31.50
Sale price
$31.50
Regular price
Skip to product information
B250 - Siemens - 50 Amp Circuit Breaker Bolt-On - 50 Amp - 2 Pole - 240 Volt
$31.50
Sale price
$31.50
Regular price
Product images are representative only. Actual product may vary.
Description

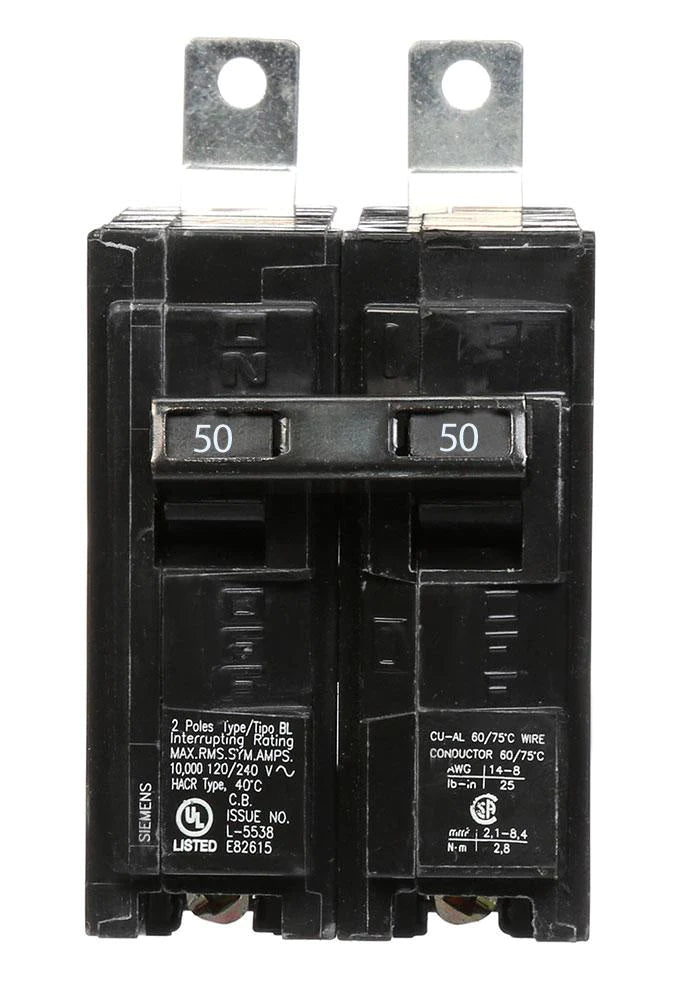

Part of the BL series, this 50A molded case circuit breaker delivers robust thermal-magnetic protection for commercial and industrial environments. The unit features a bolt-on mounting configuration, ensuring a secure connection within Siemens P1, P2, P3, P4, and P5 panelboards. Rated for 10kAIC at 120/240VAC, it includes Insta-Wire connectors with backed-out screws to accelerate installation. This HACR-rated component is ideal for heating, air conditioning, and refrigeration equipment circuits.Specifications
| Brand | Siemens |
|---|---|
| Part Number | B250 |
| Series | BL |
| Amperage | 50A |
| Poles | 2 |
| Mounting Style | Bolt-On |
| Voltage | 120/240VAC |
| Phase | 1 |
| AIC Rating | 10kA @ 120/240VAC |
| Frame Type | B |
|---|---|
| Terminal Type | Lugs |
| For Use With | Siemens P1, P2, P3, P4, P5 Panelboards |
| Wire Gauge | 8-6 AWG (Cu), 8-4 AWG (Al) |
| Max Wire | 6 AWG (Cu), 4 AWG (Al) |
| Min Wire | 8 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Available Options | Shunt Trip, Auxiliary Switch, Alarm Switch, Padlock Attachment |
|---|---|
| Accessories | Insta-Wire (screws backed out) |
| Standards | CSA C22.2 No. 5, UL 489, HACR Rated |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Insta-Wire |
