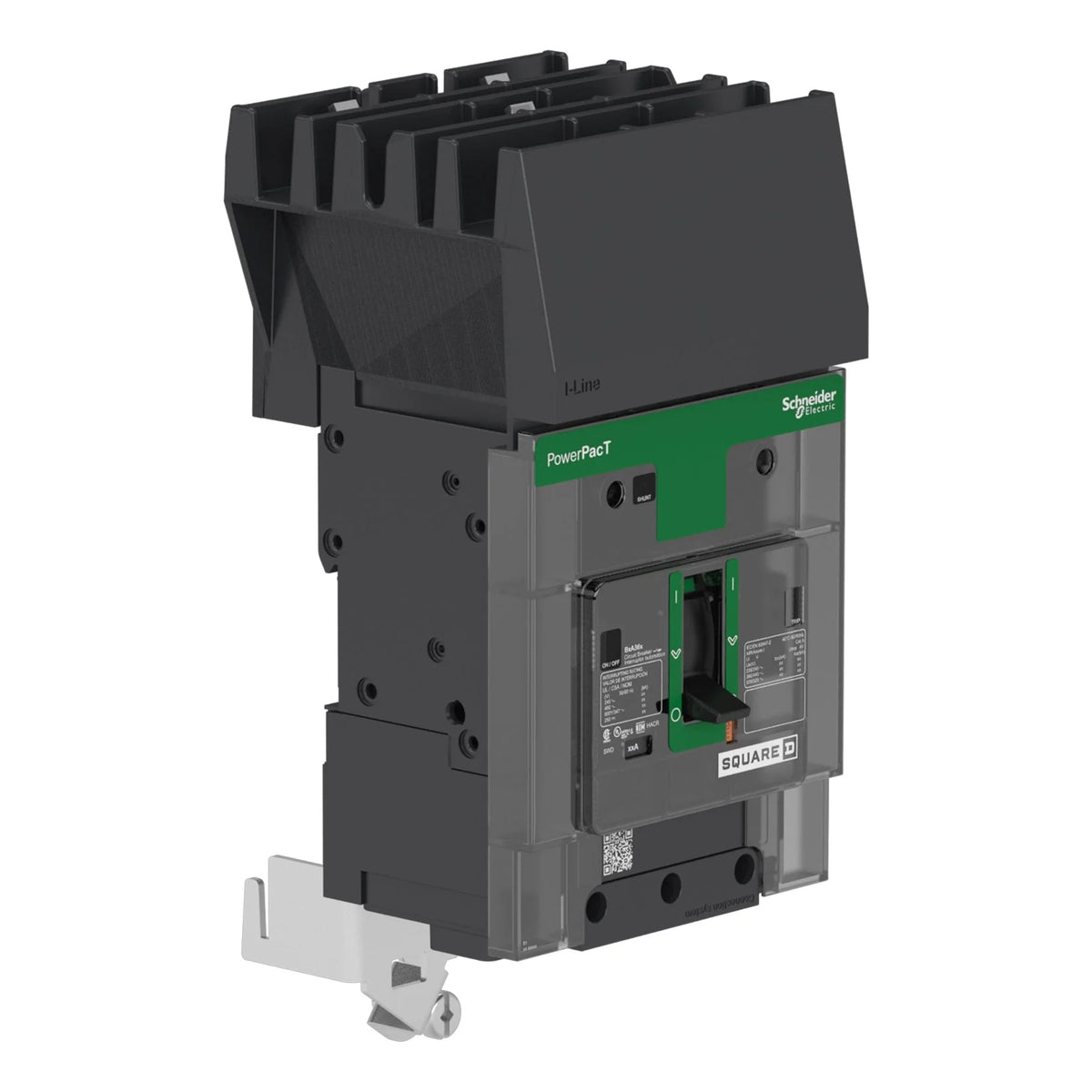

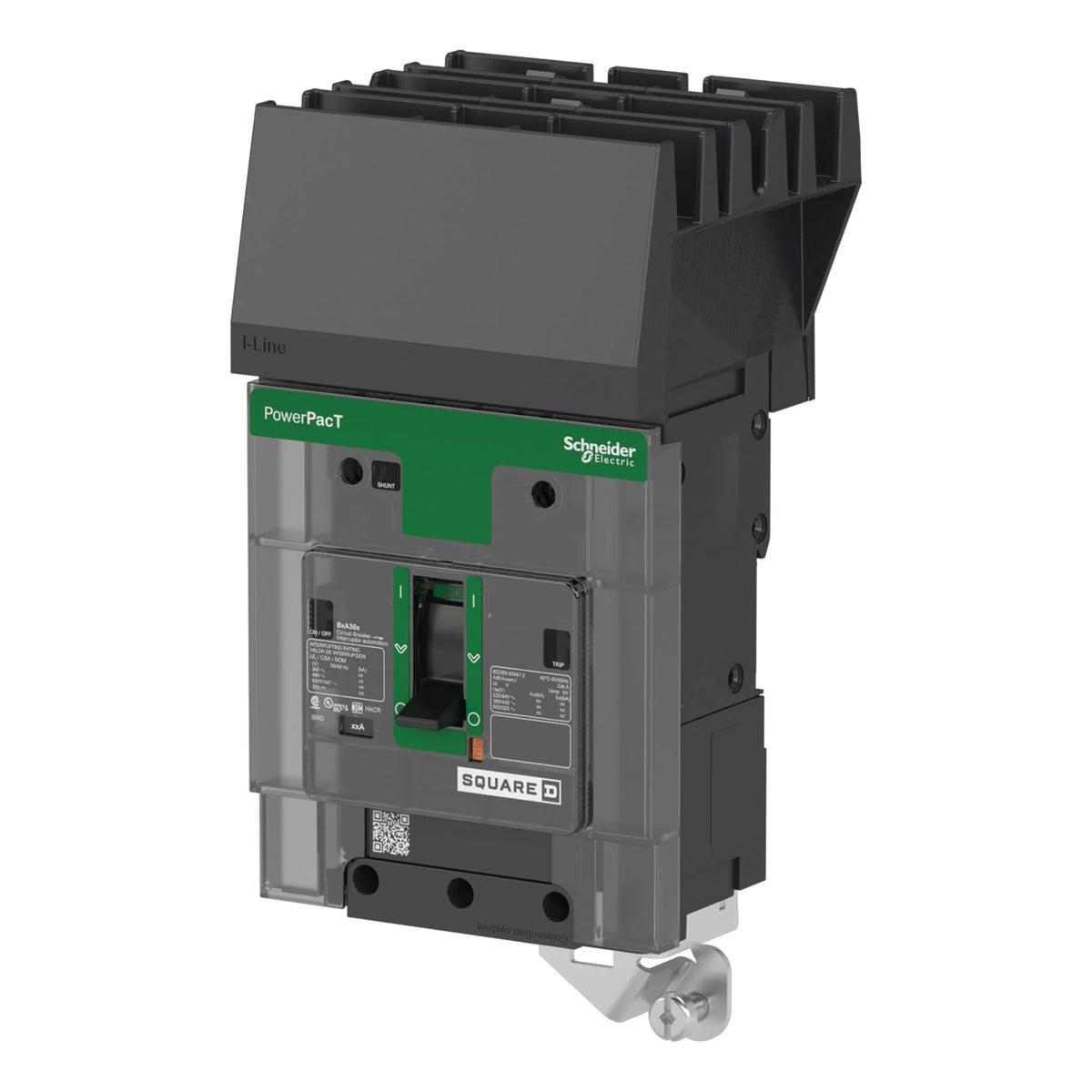

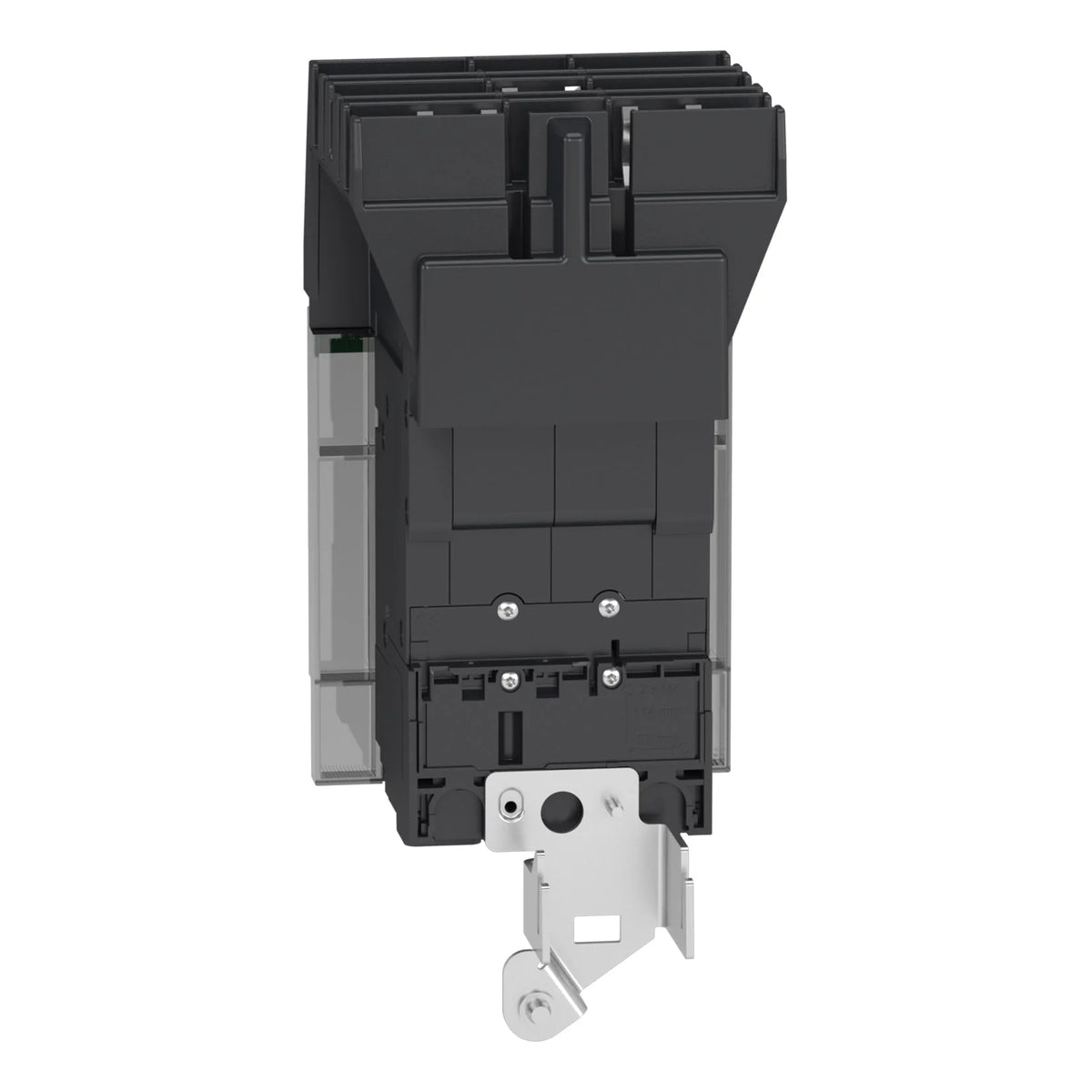

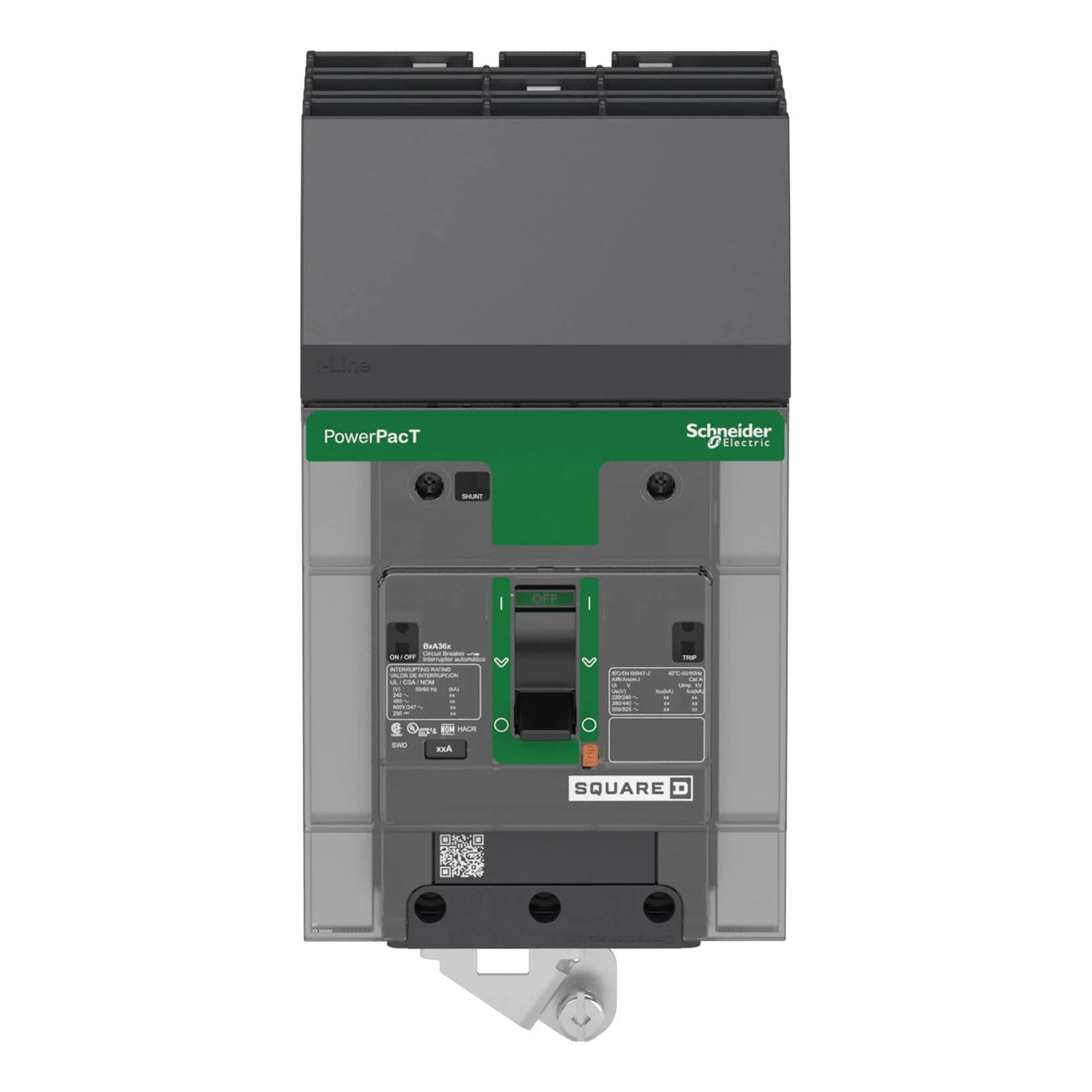

BJA36045 - Square D - Molded Case Circuit Breaker I-Line Plug-In - 45 Amp - 3 Pole - 600 Volt
New
$1,199.99
Sale price
$1,199.99
Regular price
Skip to product information
BJA36045 - Square D - Molded Case Circuit Breaker I-Line Plug-In - 45 Amp - 3 Pole - 600 Volt
$1,199.99
Sale price
$1,199.99
Regular price
Product images are representative only. Actual product may vary.
Description
Built for heavy-duty commercial applications, this 45A molded case breaker utilizes fixed thermal and magnetic trip elements for dependable LI protection. It integrates seamlessly into Square D I-Line panelboards, offering a streamlined upgrade path for discontinued FC36045 models. The BJA36045 boasts a high interrupting capacity of 100kA at 240V and includes factory-installed load side lugs, simplifying the wiring process for electrical contractors.Specifications
| Brand | Square D |
| Series | BJA |
| Part Number | BJA36045 |
| Amperage | 45A |
| Voltage | 208Y/120VAC, 240VAC, 480Y/277VAC, 480VAC, 600Y/347VAC, 250VDC |
| Poles | 3 |
| Phase | 3 |
| AIC Rating | 100kA @ 208Y/120VAC, 100kA @ 240VAC, 65kA @ 480Y/277VAC, 65kA @ 480VAC, 25kA @ 600Y/347VAC, 50kA @ 250VDC |
| Mounting Style | I-Line |
| Terminal Type | Lugs |
| For Use With | Square D I-Line Panelboards, Switchboards |
| Trip Technology | Thermal Magnetic |
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Wire Gauge | 14-2/0 AWG (Al/Cu) |
| Max Wire | 2/0 AWG |
| Min Wire | 14 AWG |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch, Padlock Attachment, Rotary Handle, Motor Operator |
| Accessories | Load Side Lugs Included |
| Standards | CSA C22.2 No. 5, EN/IEC 60947-2, GB 14048.2, NEMA AB 1, NMX J-266, UL 489 |
| Approval | CCC, CE, CSA, EAC, IEC, NOM, UL |
| Temp Rating | -25C to 70C |
| Construction Features | HACR Rated, Visual Trip Indicator |
