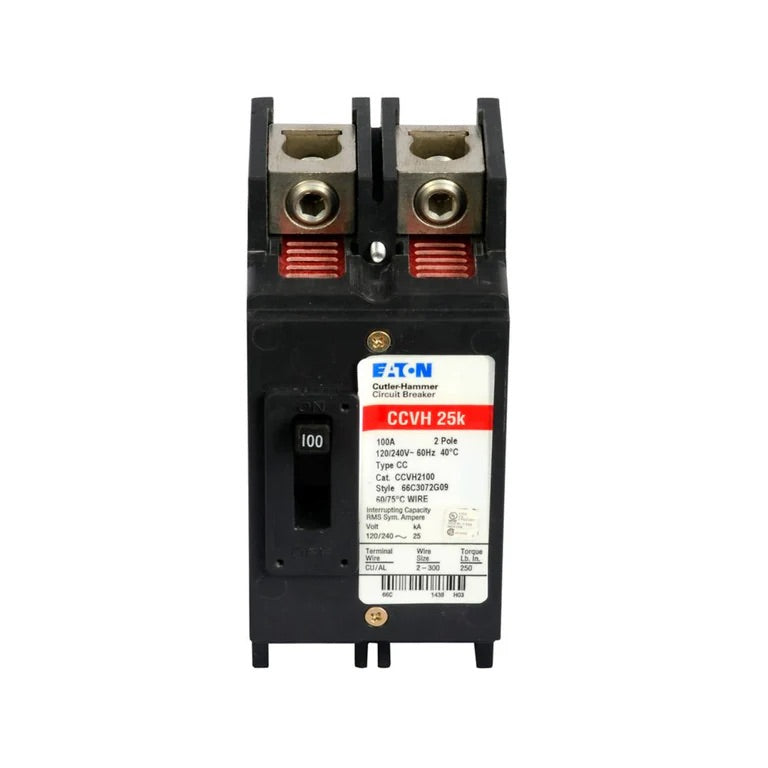

Eaton CCVH2100 — 100A 2-Pole 240V 25kA Feed-Thru Tenant Main Circuit Breaker (MCCB)

The Eaton CCVH2100 is a 100-amp, 2-pole, 240V thermal magnetic molded case circuit breaker (MCCB) rated for 25kA interrupting capacity at 240V. Designed as a Feed-Thru Tenant Main breaker, it is ideal for multi-family residential metering centers, tenant panels, and commercial service entrance applications.

Key Specifications

• Part Number: CCVH2100
• Brand: Eaton / Cutler-Hammer
• Amperage: 100A
• Poles: 2-Pole
• Voltage Rating: 120/240VAC
• Interrupting Capacity: 25kA @ 240V
• Mounting: Feed-Thru
• Application: Tenant Main
• Trip Type: Thermal Magnetic
• Standards: UL Listed, CSA Certified

Features & Benefits

• Feed-thru design for use as a tenant main circuit breaker in metering centers
• 25kA interrupting capacity at 240V for robust short-circuit protection
• Suitable for single-phase residential and light commercial service entrances
• Eaton Cutler-Hammer reliability for long-term performance
• Compatible with Eaton metering stack and tenant panel systems

Common Applications

The CCVH2100 is commonly installed as a tenant main breaker in apartment buildings, condominium complexes, and commercial metering centers requiring 100A, 240V single-phase overcurrent protection.
