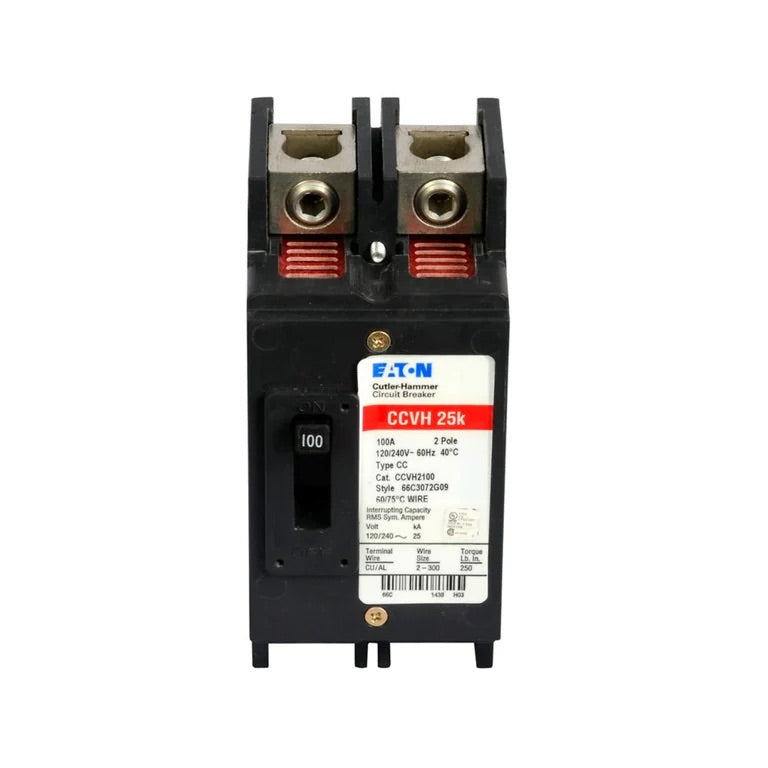

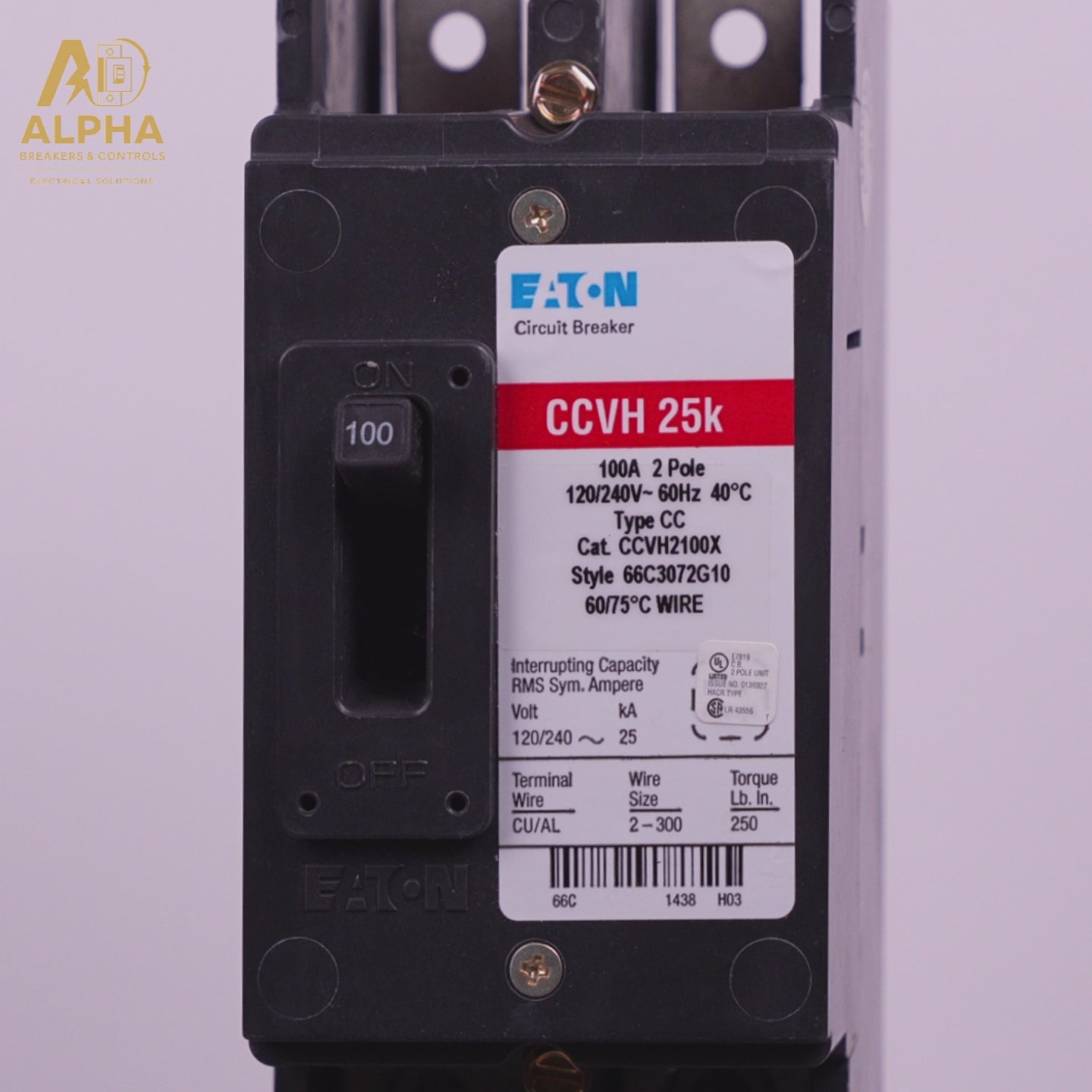

Eaton CCVH2100X – 100A 2-Pole 240V Feed-Thru Tenant Main Circuit Breaker
Eaton CCVH2100X – 100A 2-Pole 240V Feed-Thru Tenant Main Circuit Breaker
Product images are representative only. Actual product may vary.
The Eaton CCVH2100X is a 2-pole, 100-amp thermal magnetic molded case circuit breaker rated for 120/240V with an interrupting capacity of 25kA @ 240V. Designed for Feed-Thru Tenant Main applications, it delivers reliable overcurrent and short-circuit protection in multi-tenant residential and light commercial panels.
Key Specifications
| Part Number | CCVH2100X |
| Brand | Eaton |
| Amperage | 100A |
| Poles | 2-Pole |
| Voltage Rating | 120/240VAC |
| Interrupting Capacity | 25kA @ 240V |
| Trip Type | Thermal Magnetic |
| Mounting Type | Feed-Thru |
| Series / Frame | CCVH Series |
| Standard | UL 489, CSA C22.2 |
Features & Benefits
- 25kA @ 240V interrupting capacity — handles high fault currents without nuisance tripping
- Thermal magnetic trip mechanism — precise overload and short-circuit protection
- Feed-Thru Tenant Main configuration — conductors pass through for downstream tenant connections
- UL 489 listed and CSA C22.2 certified for full North American code compliance
- Ideal for apartment buildings, condominiums, and multi-unit commercial properties
The CCVH Series is Eaton's purpose-built platform for tenant metering centers and multi-family residential distribution. The Feed-Thru design allows service conductors to pass through the breaker to individual tenant meters, making installation fast and code-compliant.
Typical Applications
- Multi-tenant residential metering centers and load centers
- Apartment building and condominium electrical distribution
- Light commercial multi-unit service entrance equipment
- 120/240V panelboards requiring tenant main protection
Frequently Asked Questions
Q: What is the interrupting capacity of the CCVH2100X?
A: The CCVH2100X has an interrupting capacity of 25kA at 240V, suitable for systems with moderate available fault currents.
Q: What is the Feed-Thru Tenant Main mounting configuration?
A: Feed-Thru means conductors pass through the breaker body to downstream terminals, allowing this breaker to serve as the main disconnect for individual tenant meters in a metering stack.
Q: Is the CCVH2100X UL listed?
A: Yes, it is UL 489 listed and CSA C22.2 certified for use in North American electrical systems.
