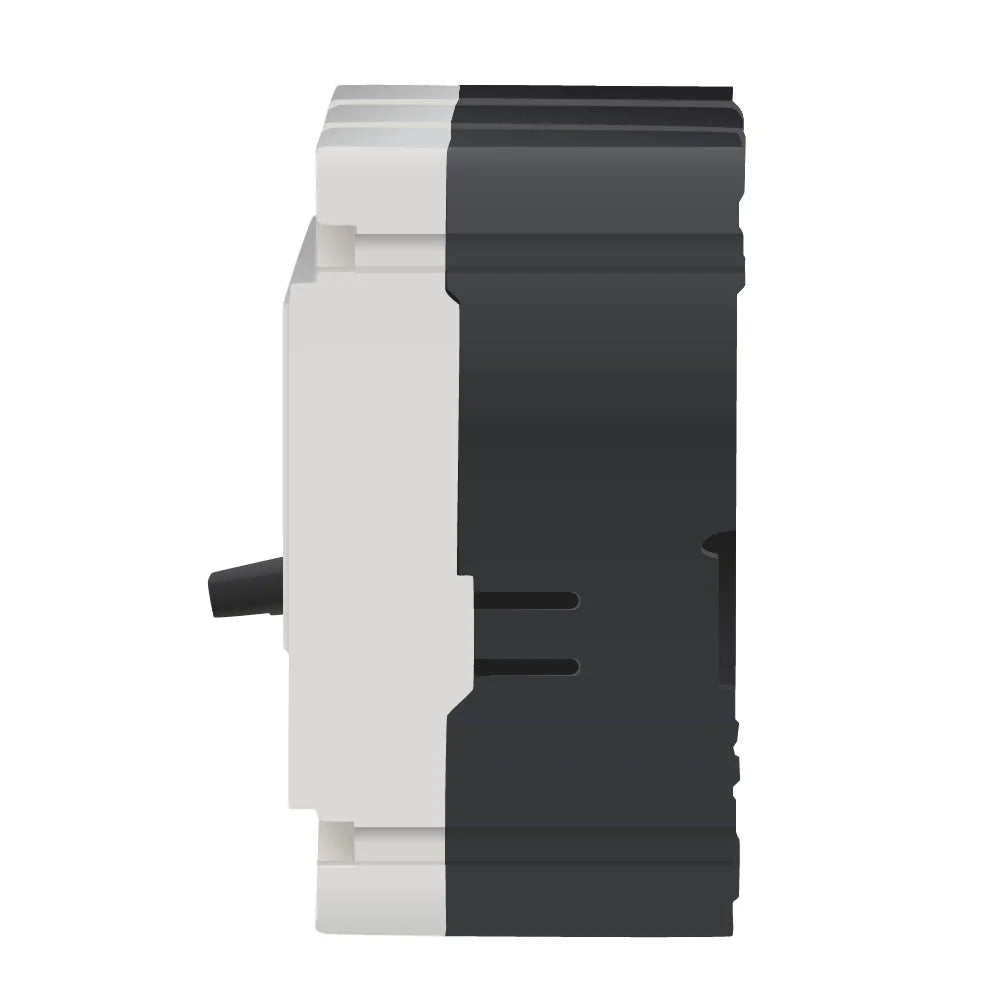

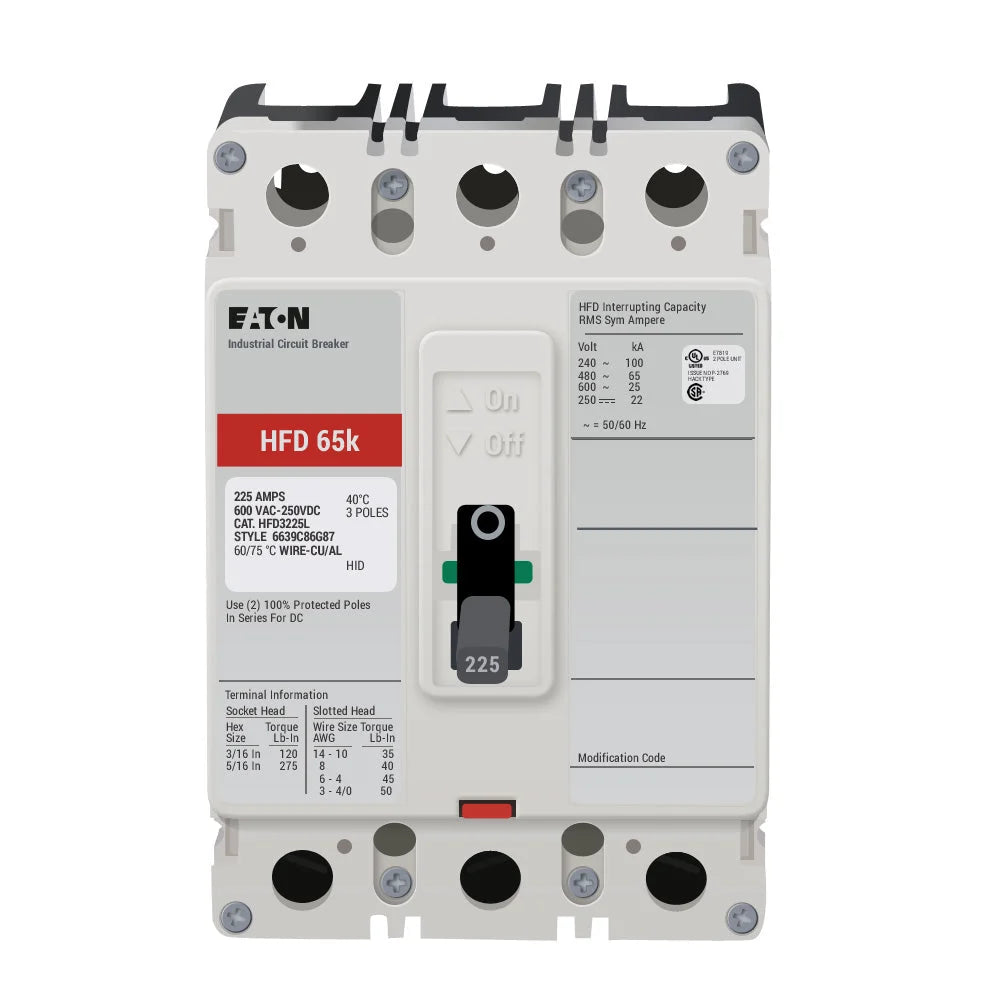

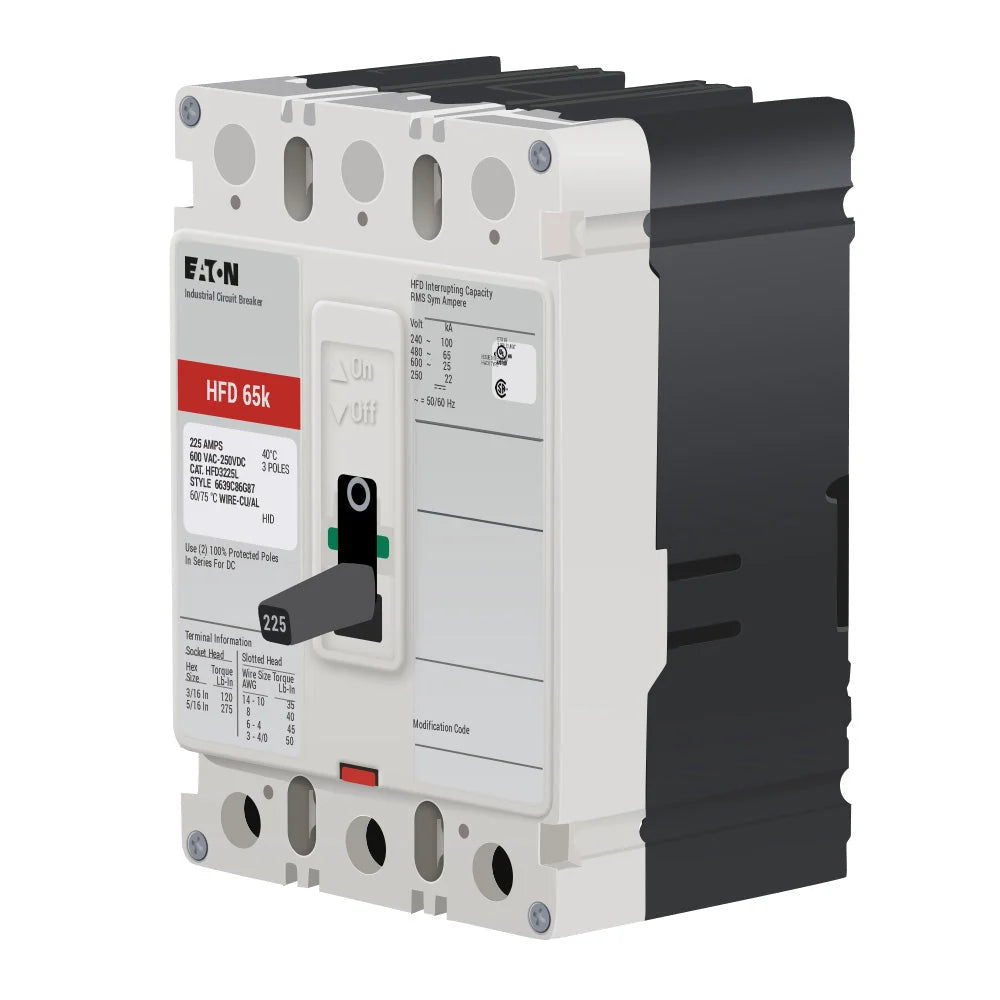

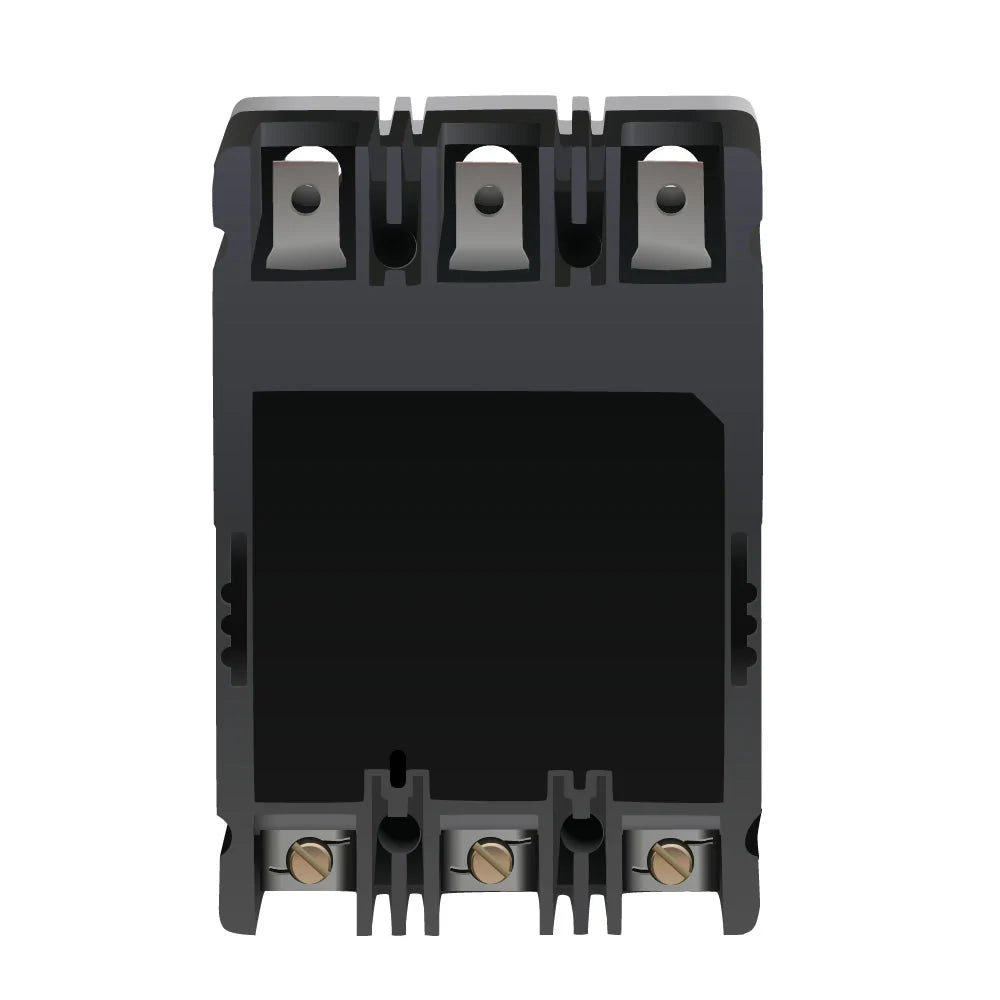

Product images are representative only. Actual product may vary.
Description
Built to handle demanding electrical loads, the Eaton HFD3225 is a 3-pole, 225A molded case circuit breaker from the Series C F-Frame lineup. It utilizes thermal-magnetic trip technology to provide reliable long-time and instantaneous (LI) protection for commercial facilities. This panel mount MCCB installs into Eaton panelboards and switchboards, coming standard with load side lugs. It is HACR rated, reverse feed capable, and serves as a legacy replacement prior to the Power Defense series.Specifications
| Brand | Eaton / Cutler-Hammer |
|---|---|
| Part Number | HFD3225-R |
| Series | HFD |
| Amperage | 225A |
| Poles | 3 |
| Mounting Style | Panel Mount |
| Voltage | 240VAC, 480VAC, 600VAC, 250VDC |
| Phase | 3 |
| AIC Rating | 100kA @ 240VAC, 65kA @ 480VAC, 25kA @ 600VAC, 22kA @ 250VDC |
| Terminal Type | Lugs |
|---|---|
| For Use With | Eaton Series C Panelboards, Switchboards, Motor Control Centers |
| Wire Gauge | 4 AWG - 4/0 AWG |
| Max Wire | 4/0 AWG |
| Min Wire | 4 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Auxiliary Switch, Shunt Trip, Undervoltage Release, Alarm Switch |
|---|---|
| Accessories | Load Side Lugs (Included) |
| Standards | CSA C22.2 No. 5, IEC 60947-2, NEMA AB-1, UL 489 |
| Approval | CE, CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Reverse Feed, High Interrupting Capacity, Non-Interchangeable Trip |
