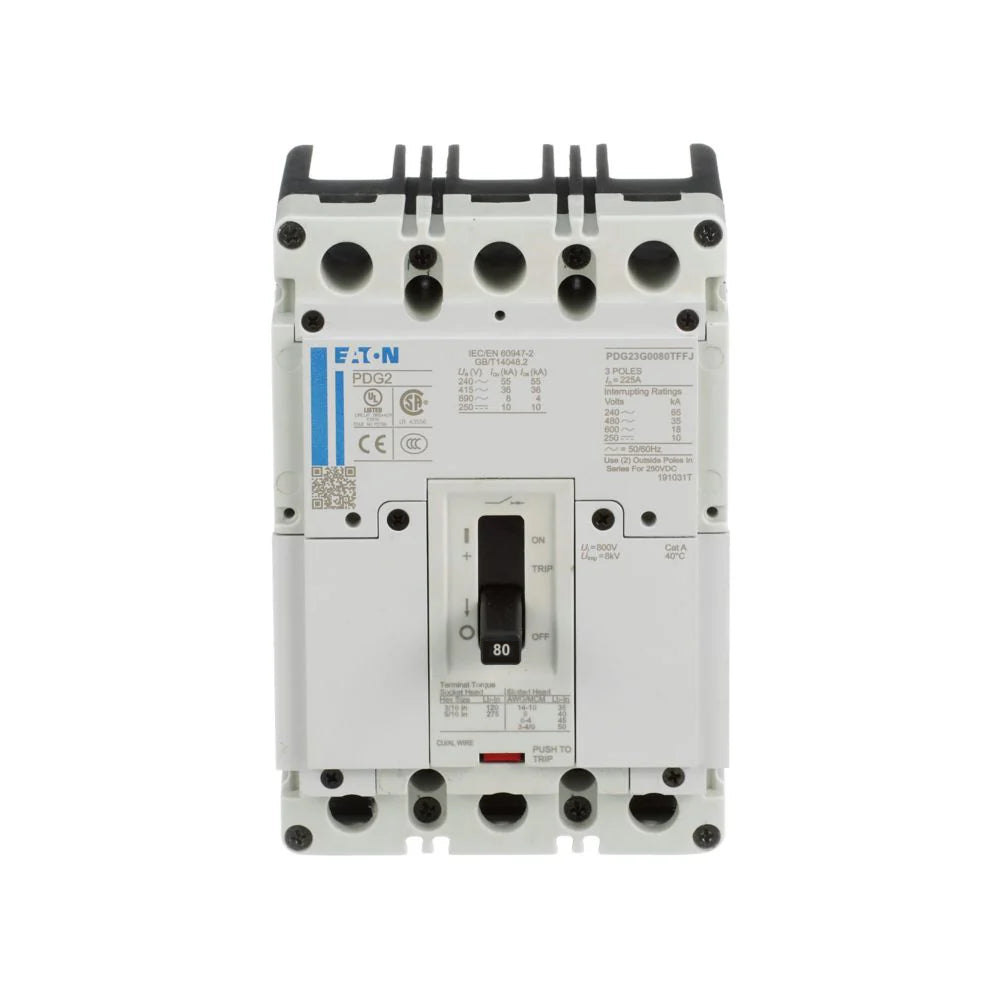

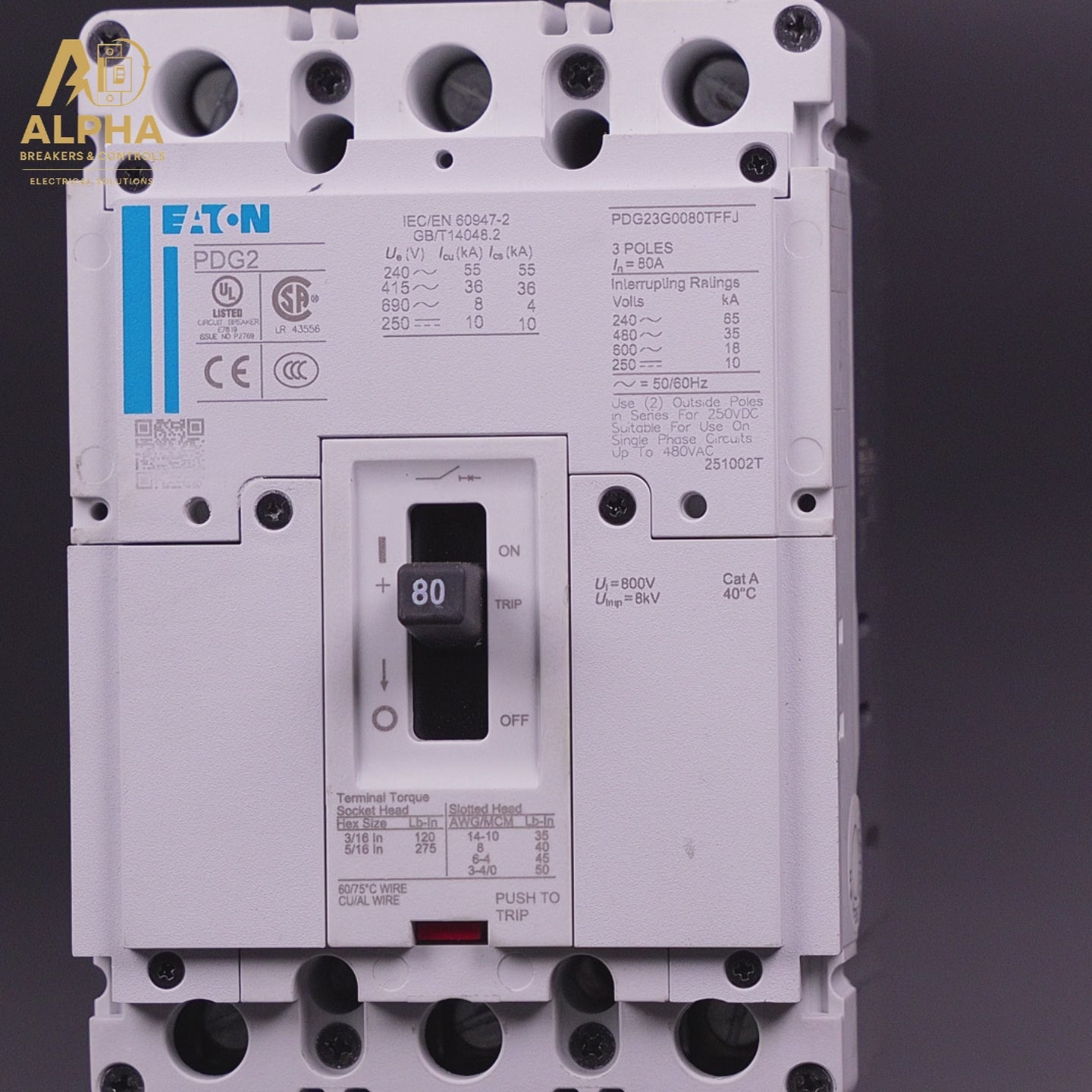

Eaton - PDG23G0080TFFJ – 80A 3-Pole 600V 65kA Power Defense Feed-Thru Circuit Breaker
Eaton - PDG23G0080TFFJ – 80A 3-Pole 600V 65kA Power Defense Feed-Thru Circuit Breaker
Product images are representative only. Actual product may vary.
The Eaton PDG23G0080TFFJ is a 3-pole, 80-amp thermal magnetic molded case circuit breaker rated for 600VAC with an interrupting capacity of 65kA, part of Eaton's Power Defense (PDG) Frame 2 platform. The Feed-Thru (TFFJ) mounting configuration delivers industry-leading 65kA fault protection for industrial panelboards and switchboards at the 80A rating.
Key Specifications
| Part Number | PDG23G0080TFFJ |
| Brand | Eaton |
| Amperage | 80A |
| Poles | 3-Pole |
| Voltage Rating | 600VAC |
| Interrupting Capacity | 65kA @ 600V |
| Trip Type | Thermal Magnetic |
| Mounting Type | Feed-Thru (TFFJ) |
| Series / Frame | PDG Power Defense Frame 2 |
| Standard | UL 489, CSA C22.2, IEC 60947-2 |
Features & Benefits
- 65kA @ 600V interrupting capacity — best-in-class IC for 80A thermal magnetic MCCB
- Power Defense Frame 2 (PDG23G) — Eaton's most advanced compact MCCB platform
- TFFJ Feed-Thru mounting — compatible with Eaton Power Defense panelboards and switchboards
- UL 489, CSA C22.2, and IEC 60947-2 certified
- 7 units in stock — available for immediate shipment
Typical Applications
- Industrial 80A branch and feeder circuit protection at 600V
- Manufacturing, process, and commercial electrical switchboards
- Replacement for legacy Eaton GHB3080, HFD3080 and similar 80A frame breakers
Frequently Asked Questions
Q: What frame does the PDG23G0080TFFJ use?
A: It uses the Power Defense Frame 2 (designated by "G" in the part number), which covers ampere ratings in the lower range of the PDG family and replaces multiple legacy Eaton compact frames.
Q: Is the PDG23G0080TFFJ UL listed?
A: Yes — UL 489, CSA C22.2, and IEC 60947-2 compliant.
Alpha Brokers & Controls supplies verified new Eaton Power Defense circuit breakers. Ships fast across the US.
