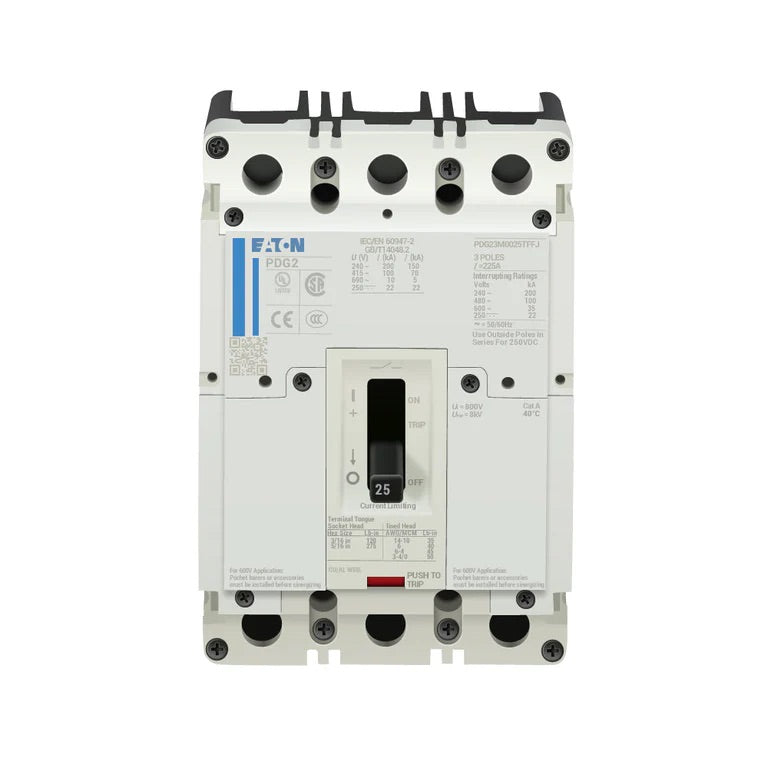

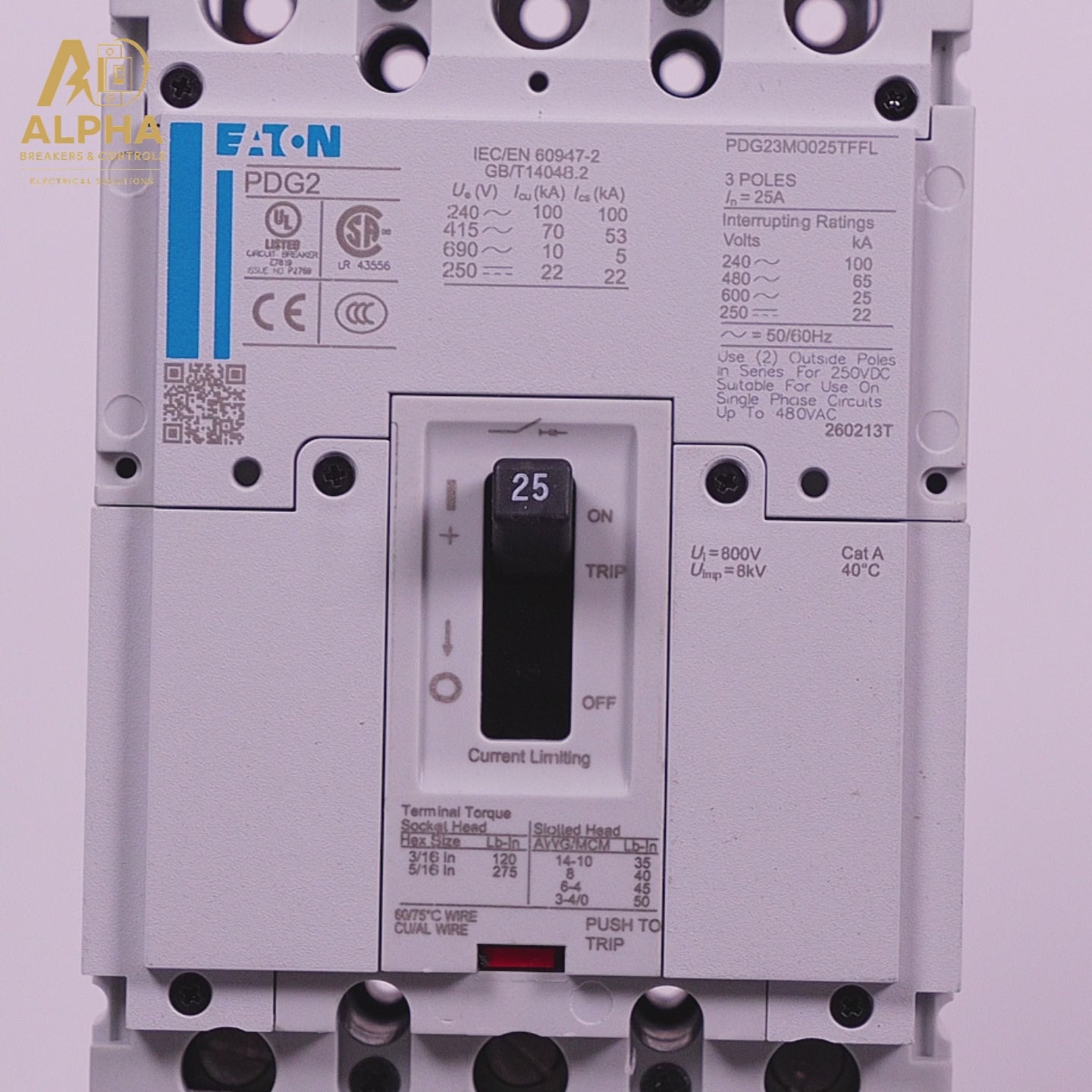

Eaton PDG23M0025TFFL – Power Defense Molded Case Circuit Breaker (Feed-Thru, 25A, 3-Pole, 600V)
The Eaton PDG23M0025TFFL is a 3-pole, 25-amp, 600VAC thermal magnetic molded case circuit breaker from Eaton's Power Defense series. Designed for reliable overcurrent and short-circuit protection in commercial and industrial power distribution systems, this Feed-Thru breaker delivers a high interrupting rating of 65kAIC at 480VAC in a compact, globally certified package.
Built on the PD2 Global Frame 2 platform, the PDG23M0025TFFL integrates directly with Eaton panelboards and motor control centers, and serves as a modern drop-in replacement for legacy HFD3025 and EGH3025 breakers — ideal for upgrades, retrofits, and new panel installations.
Key Specifications
| Part Number | PDG23M0025TFFL |
| Manufacturer | Eaton |
| Series | Power Defense (PD2 Global) |
| Amperage Rating | 25A |
| Number of Poles | 3-Pole |
| Voltage Rating | 600VAC |
| Interrupt Rating | 65kAIC @ 480V (UL) | 100kAIC @ 240V (IEC) |
| Frame | Frame 2 (225A Frame, Complete Breaker) |
| Connection Type | Feed-Thru (Load-Side Lugs Included) |
| Trip Unit | Thermal Magnetic – Fixed Long-Time & Instantaneous (Fxd-Fxd) |
| Wire Range | AWG 14 – 1/0 |
| Phase | 3-Phase |
| Dimensions | 6"L x 3.5"H x 4"W |
| Certifications | UL, CSA, CCC, IEC, RoHS |
| Condition | New (OEM) |
Why Choose the Eaton PDG23M0025TFFL?
✅ High Interrupting Capacity
Rated at 65kAIC at 480VAC, this breaker is built to handle the demanding fault currents common in industrial panels, motor control centers, and heavy commercial electrical systems — well above minimum NEC code requirements for most applications.
✅ Thermal Magnetic Trip Protection
The fixed thermal-magnetic trip unit delivers dual-mode protection: long-time trip for sustained overload conditions and instantaneous trip for rapid response to short-circuit events — safeguarding both equipment and personnel.
✅ Feed-Thru Connection for Flexible Wiring
The Feed-Thru (TFFL) terminal configuration allows conductors to pass through the load-side terminals, enabling tap-style wiring configurations that simplify installation in tight panelboards and enclosures.
✅ Globally Rated – PD2 Frame 2 Platform
As part of Eaton's globally rated Power Defense series, the PDG23M0025TFFL is certified to UL, CSA, IEC, and CCC standards — making it suitable for North American installations and facilities with international compliance requirements.
✅ Direct Retrofit for Legacy Breakers
Designed as a compatible replacement for legacy HFD3025 and EGH3025 breakers, the PDG23M0025TFFL enables panel upgrades without requiring enclosure modifications or new mounting hardware.
Common Applications
- Industrial motor control centers (MCCs)
- Commercial and industrial panelboards
- Feeder and branch circuit protection
- HVAC and mechanical equipment panels
- Manufacturing and process control systems
- Data centers and critical power distribution
- Lighting and general-purpose load circuits
Frequently Asked Questions
What is the Eaton PDG23M0025TFFL?
The PDG23M0025TFFL is a 25-amp, 3-pole, 600VAC Feed-Thru molded case circuit breaker from Eaton's Power Defense series. It features a fixed thermal-magnetic trip unit, a 65kAIC interrupting rating at 480VAC, and is built on the globally rated PD2 Frame 2 platform.
What does "Feed-Thru" mean on a circuit breaker?
Feed-Thru (TFFL) means the breaker's load-side terminals are designed to allow conductors to pass through, supporting tap wiring configurations. This is commonly used in panelboard applications where multiple downstream loads are served from a single breaker position.
What breakers does the PDG23M0025TFFL replace?
The PDG23M0025TFFL is a modern replacement for Eaton's legacy HFD3025 and EGH3025 molded case circuit breakers, offering improved interrupting ratings, global certifications, and a compatible mounting footprint for easy retrofits.
What certifications does the PDG23M0025TFFL carry?
This breaker is listed or certified to UL, CSA, CCC, IEC, and RoHS standards, making it appropriate for use in both North American and internationally regulated electrical installations.
What is the interrupting rating of the PDG23M0025TFFL?
The PDG23M0025TFFL carries a 65kAIC interrupting rating at 480VAC (UL) and 100kAIC at 240VAC (IEC), providing robust short-circuit protection for commercial and industrial power systems.
Is the PDG23M0025TFFL in stock?
Yes. Alpha Brokers & Controls stocks the PDG23M0025TFFL and typically ships within 1 business day. Contact us for pricing on larger quantities or expedited orders.
