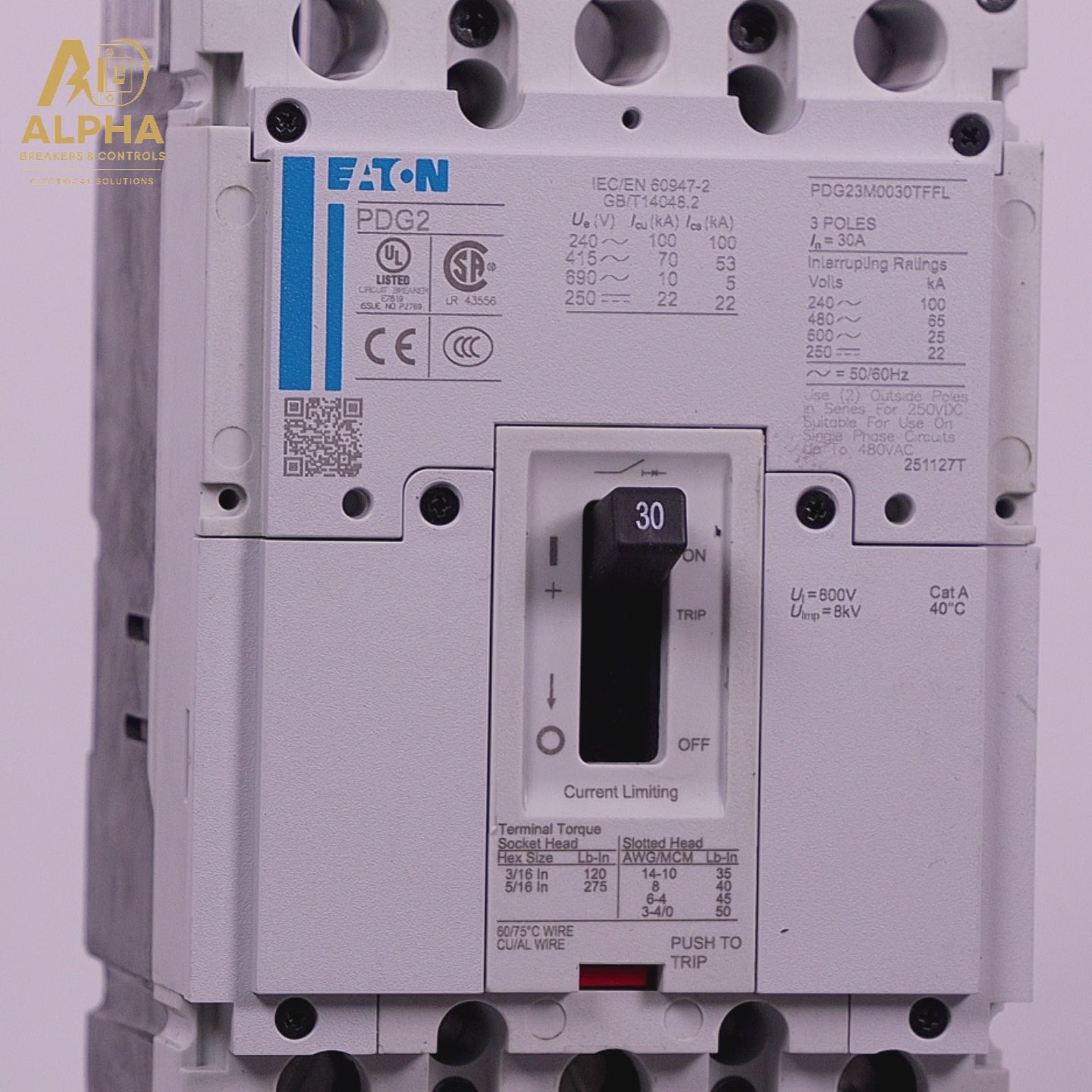

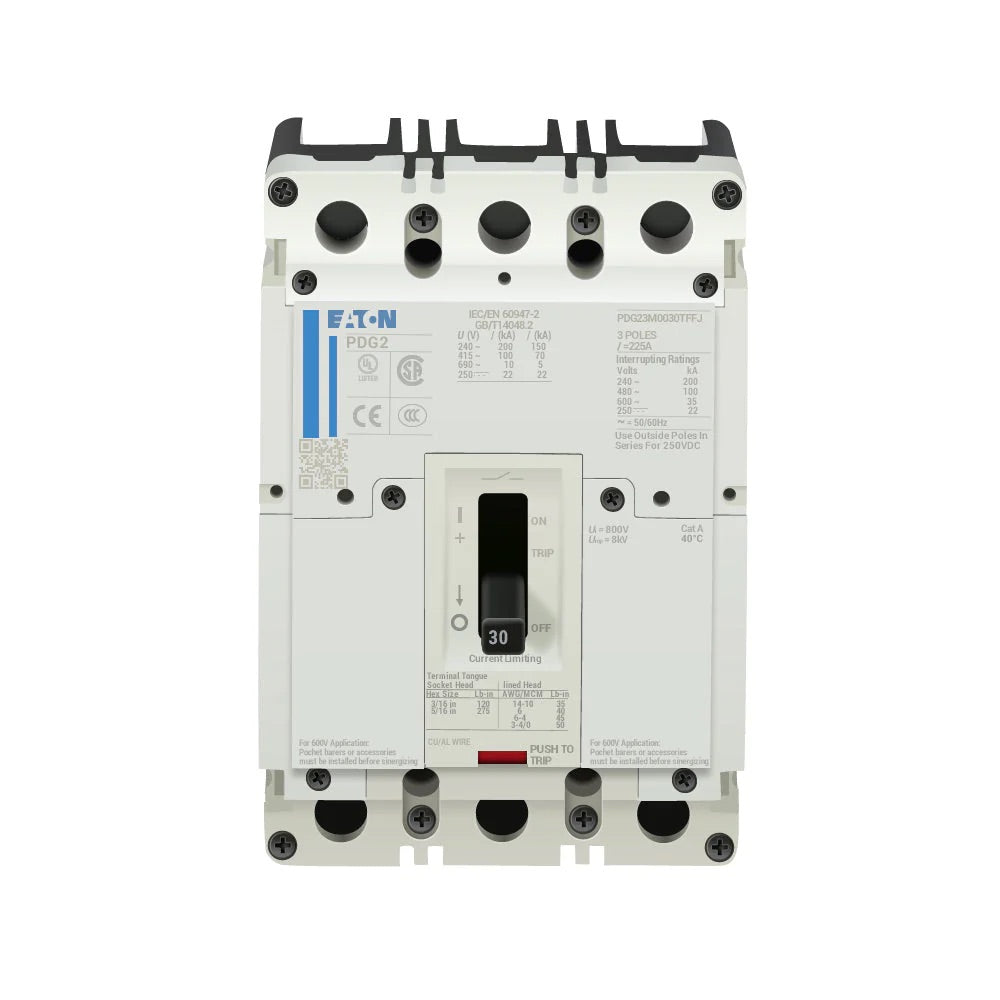

Eaton PDG23M0030TFFL – Power Defense Molded Case Circuit Breaker (Feed-Thru, 30A, 3-Pole, 600V)
The Eaton PDG23M0030TFFL is a 3-pole, 30-amp, 600VAC thermal magnetic molded case circuit breaker from Eaton's Power Defense series. Engineered for industrial and commercial power distribution, this Feed-Thru breaker delivers dependable overcurrent and short-circuit protection with a high interrupting rating of 65kAIC at 480VAC.
Built on the PD2 Global Frame 2 platform, the PDG23M0030TFFL integrates seamlessly with Eaton panelboards and motor control centers, and serves as a direct replacement for legacy HFD3030 and EGH3030 breakers — making it a top choice for upgrades, retrofits, and new installations alike.
Key Specifications
| Part Number | PDG23M0030TFFL |
| Manufacturer | Eaton |
| Series | Power Defense (PD2 Global) |
| Amperage Rating | 30A |
| Number of Poles | 3-Pole |
| Voltage Rating | 600VAC |
| Interrupt Rating | 65kAIC @ 480V (UL) | 100kAIC @ 240V (IEC) |
| Frame | Frame 2 (225A Frame, Complete Breaker) |
| Connection Type | Feed-Thru (Load-Side Lugs Included) |
| Trip Unit | Thermal Magnetic – Fixed Long-Time & Instantaneous (Fxd-Fxd) |
| Wire Range | AWG 14 – 1/0 |
| Phase | 3-Phase |
| Dimensions | 6"L x 3.5"H x 4"W |
| Certifications | UL, CSA, CCC, IEC, RoHS |
| Condition | New (OEM) |
Why Choose the Eaton PDG23M0030TFFL?
✅ High Interrupting Capacity
With a 65kAIC rating at 480V, this breaker handles demanding fault currents found in industrial panels, motor control centers, and heavy commercial electrical systems — far exceeding minimum code requirements for most installations.
✅ Thermal Magnetic Trip Protection
The fixed thermal-magnetic trip unit provides dual-mode protection: long-time trip for sustained overloads and instantaneous trip for fast response to short-circuit events — keeping equipment and personnel safe.
✅ Feed-Thru Connection for Flexible Wiring
The Feed-Thru terminal configuration allows both line and load conductors to connect through the breaker, enabling tap applications and simplifying wiring in tight enclosures and panelboards.
✅ Global Platform – PD2 Frame 2
Part of Eaton's globally rated Power Defense platform, the PDG23M0030TFFL meets UL, CSA, IEC, and CCC standards — ideal for facilities with international compliance requirements or multi-site operations.
✅ Direct Retrofit for Legacy Breakers
Compatible with legacy HFD3030 and EGH3030 footprints, this breaker simplifies panel upgrades without costly enclosure modifications.
Common Applications
- Industrial motor control centers (MCCs)
- Commercial and industrial panelboards
- Feeder and branch circuit protection
- HVAC and mechanical equipment panels
- Manufacturing and process control systems
- Data centers and critical power distribution
Frequently Asked Questions
What is the Eaton PDG23M0030TFFL?
The PDG23M0030TFFL is a 30-amp, 3-pole, 600VAC Feed-Thru molded case circuit breaker from Eaton's Power Defense series. It uses a thermal magnetic trip unit and is rated at 65kAIC at 480V. It is part of the globally rated PD2 Frame 2 platform.
What does "Feed-Thru" mean on a circuit breaker?
Feed-Thru (TFFL) means the breaker supports pass-through wiring on the load side, allowing conductors to be tapped through the terminal. This configuration is commonly used in panelboard tap applications where multiple downstream loads are served through a single breaker.
What breakers does the PDG23M0030TFFL replace?
The PDG23M0030TFFL is a modern replacement for Eaton's legacy HFD3030 and EGH3030 molded case circuit breakers, offering improved performance, global certifications, and a compatible mounting footprint.
What certifications does the PDG23M0030TFFL carry?
This breaker is certified to UL, CSA, CCC, IEC, and RoHS standards, making it suitable for use in North American and international installations.
What is the interrupting rating of the PDG23M0030TFFL?
The PDG23M0030TFFL is rated at 65kAIC at 480VAC (UL) and 100kAIC at 240VAC (IEC), providing high fault-current protection capacity for commercial and industrial environments.
Is the PDG23M0030TFFL in stock?
Yes. Alpha Brokers & Controls maintains inventory of the PDG23M0030TFFL. Orders typically ship within 1 business day. Contact us for lead times on larger quantities.
