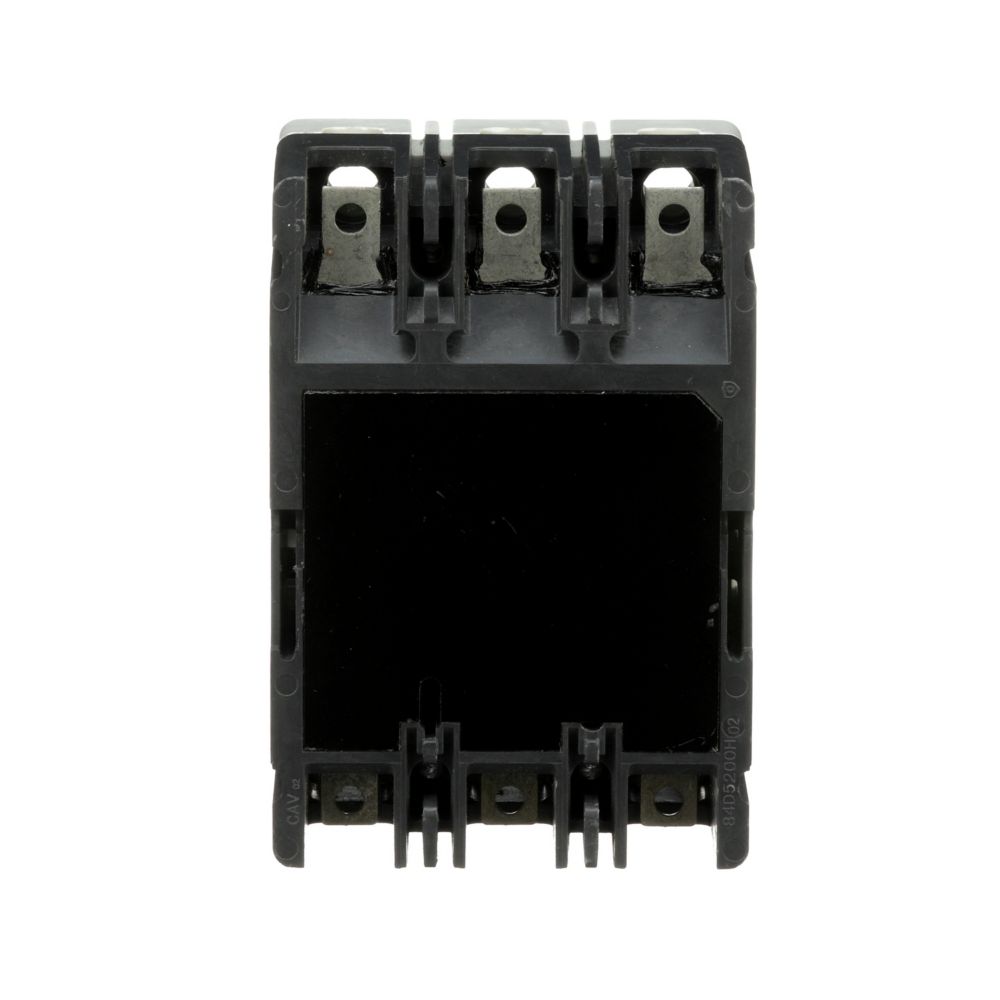

Product images are representative only. Actual product may vary.
Eaton PDG23M0110TFFL – 110 Amp, 3-Pole Molded Case Circuit Breaker
The Eaton PDG23M0110TFFL is a Power Defense PDG2-frame molded case circuit breaker rated 110 amps, 3-pole, 600 VAC. It features a thermal-magnetic trip unit with long-time and instantaneous (LI) protection and delivers a 65 kA interrupting rating at 480 VAC for reliable fault protection in demanding electrical systems. Feed-thru, bolt-on connections make installation fast and secure in panelboards and switchboards.
Key Specifications
| Part Number | PDG23M0110TFFL |
| Manufacturer | Eaton |
| Series | Power Defense (PDG2 Frame) |
| Type | Molded Case Circuit Breaker (MCCB), Feed-Thru |
| Current Rating | 110 Amps |
| Poles | 3 |
| Voltage Rating | 600 VAC |
| Interrupting Rating | 65 kAIC @ 480 VAC |
| Trip Unit | Thermal-Magnetic, Long-Time & Instantaneous (LI) |
| Connection | Feed-Thru, Bolt-On |
Features & Benefits
- 65 kA interrupting capacity at 480 VAC for high fault-current environments
- Thermal-magnetic trip unit provides overload and short-circuit protection
- Feed-thru bolt-on connections for secure, low-resistance terminations
- Compact PDG2 frame fits Eaton panelboards, switchboards, and enclosures
Common Applications
The PDG23M0110TFFL protects feeders and branch circuits in commercial and industrial power distribution, including panelboards, switchboards, motor control centers, HVAC equipment, and machinery requiring 110 A, 3-phase protection up to 600 VAC.
Frequently Asked Questions
What is the amp rating of the Eaton PDG23M0110TFFL?
It is rated for 110 amps continuous current.
What is the interrupting rating?
65 kAIC at 480 VAC.
What trip functions does it include?
A thermal-magnetic trip unit with long-time and instantaneous (LI) protection.
