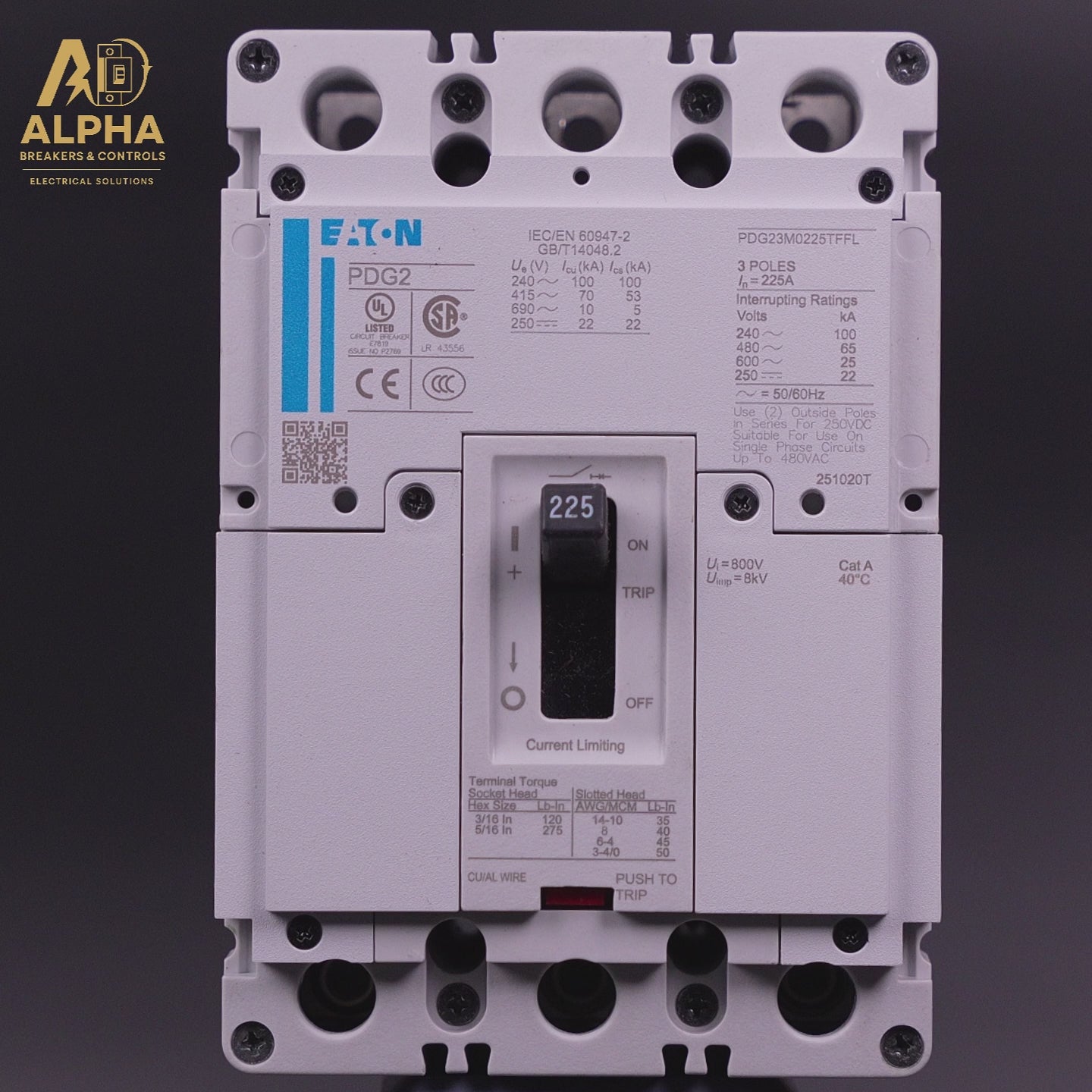

Eaton PDG23M0225TFFL – 225 Amp 3-Pole 600V Molded Case Circuit Breaker (Bolt-On)

The Eaton PDG23M0225TFFL is a Power Defense molded case circuit breaker (MCCB) engineered for demanding commercial and industrial power distribution systems. Part of Eaton's globally rated Power Defense product line, this Frame 2 breaker delivers exceptional fault protection, long service life, and worldwide compliance — making it a go-to solution for engineers, electricians, and facility managers.

Key Specifications

• Part Number: PDG23M0225TFFL
• Manufacturer: Eaton (formerly Cutler-Hammer)
• Current Rating: 225 Amps
• Poles: 3-Pole
• Voltage Rating: 600 VAC / 250 VDC
• Interrupting Capacity: 65 kAIC @ 480 VAC
• Frame: Frame 2 (PDG2 Series)
• Trip Type: Fixed Thermal-Magnetic (T-M Fxd-Fxd)
• Mounting Type: Bolt-On
• Terminals: Standard Load Terminals
• Global Rating: Yes — UL, CSA, IEC compliant
• RoHS Compliant: Yes
• Condition: New

What Is the Eaton PDG23M0225TFFL?

The PDG23M0225TFFL is a three-pole, 225-amp molded case circuit breaker from Eaton's Power Defense series. It uses a fixed thermal-magnetic trip unit to provide automatic overload and short-circuit protection. With a 65 kAIC interrupting rating at 480V and a global certification footprint, this breaker is designed for use in industrial switchgear, commercial panelboards, and critical power distribution infrastructure worldwide.

Why Choose the Eaton Power Defense PDG23M0225TFFL?

• Global Compliance: Rated for use in North American (UL/CSA) and international (IEC) installations — a single part number for global projects.
• High Fault Tolerance: 65 kAIC at 480 VAC handles high-demand applications with confidence.
• Reliable Trip Technology: Fixed thermal-magnetic trip ensures repeatable overload and short-circuit response without adjustment drift.
• Drop-In Replacement: Compatible with Eaton Power Defense panelboards; also a proven replacement for legacy HFD3225 units.
• Compact Frame 2 Design: Saves panel space while delivering full 225A capacity.
• RoHS Compliant: Meets environmental standards for global deployments.

Applications

The PDG23M0225TFFL is ideal for:

• Industrial facilities and manufacturing plants
• Commercial buildings and data centers
• Main distribution and sub-distribution panels
• Motor control centers (MCCs)
• HVAC and mechanical system feeders
• Replacement of Eaton HFD3225 circuit breakers

About Eaton Power Defense Series

Eaton's Power Defense (PDG) molded case circuit breakers represent the company's latest generation of globally rated protection devices. The Power Defense platform was designed to simplify global procurement, reduce spare-parts inventory, and deliver consistent performance across voltage regimes. The PDG2 frame family covers 15A to 225A in a compact, high-interrupting-capacity package — backed by Eaton's worldwide service network.

Frequently Asked Questions

What does PDG23M0225TFFL mean?
The catalog number breaks down as follows: PDG = Power Defense Global; 2 = Frame 2; 3 = 3-Pole; M = 65 kAIC interrupting rating; 0225 = 225A; T = Thermal-Magnetic trip; FF = Fixed overload / Fixed magnetic; L = Load-only terminals.

Is the PDG23M0225TFFL the same as the HFD3225?
The PDG23M0225TFFL is the modern replacement for the older Eaton HFD3225 molded case circuit breaker. It is physically and electrically compatible in Power Defense panelboards and offers enhanced global certifications.

What is the interrupting rating of this breaker?
The PDG23M0225TFFL has an interrupting capacity of 65 kAIC at 480 VAC (UL) and up to 100 kAIC at 240V (IEC).

Is this breaker UL listed?
Yes. The PDG23M0225TFFL carries UL and CSA certifications and is also IEC-rated for international use.

What is the warranty?
Eaton provides a one-year warranty from the date of installation or 18 months from shipment, whichever comes first (per Eaton Selling Policy 25-000). Alpha Brokers & Controls guarantees all units are authentic OEM parts in new condition.

What is the voltage rating?
The PDG23M0225TFFL is rated for 600 VAC and 250 VDC.
