EGB34060 - Square D - Molded Case Circuit Breaker Bolt-On - 60 Amp - 3 Pole - 480 Volt
New
$319.99
Sale price
$319.99
Regular price
Skip to product information
EGB34060 - Square D - Molded Case Circuit Breaker Bolt-On - 60 Amp - 3 Pole - 480 Volt
$319.99
Sale price
$319.99
Regular price

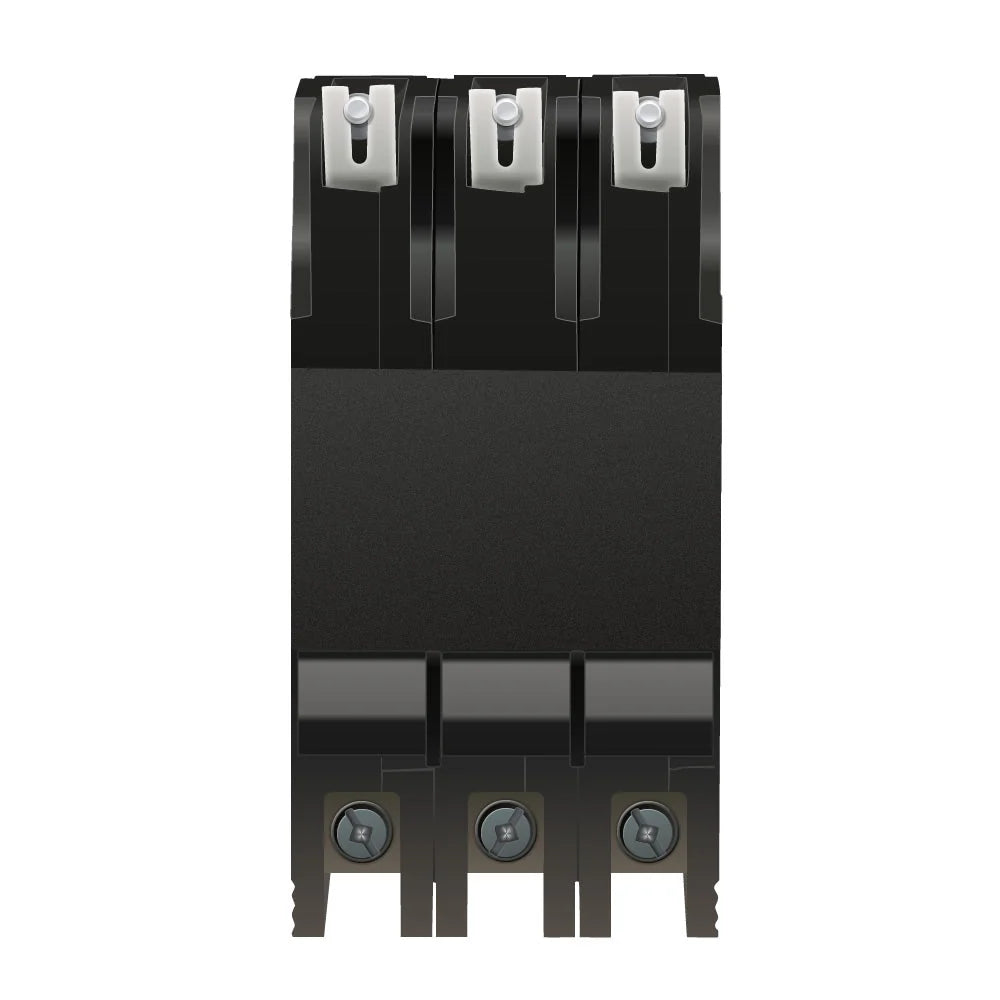

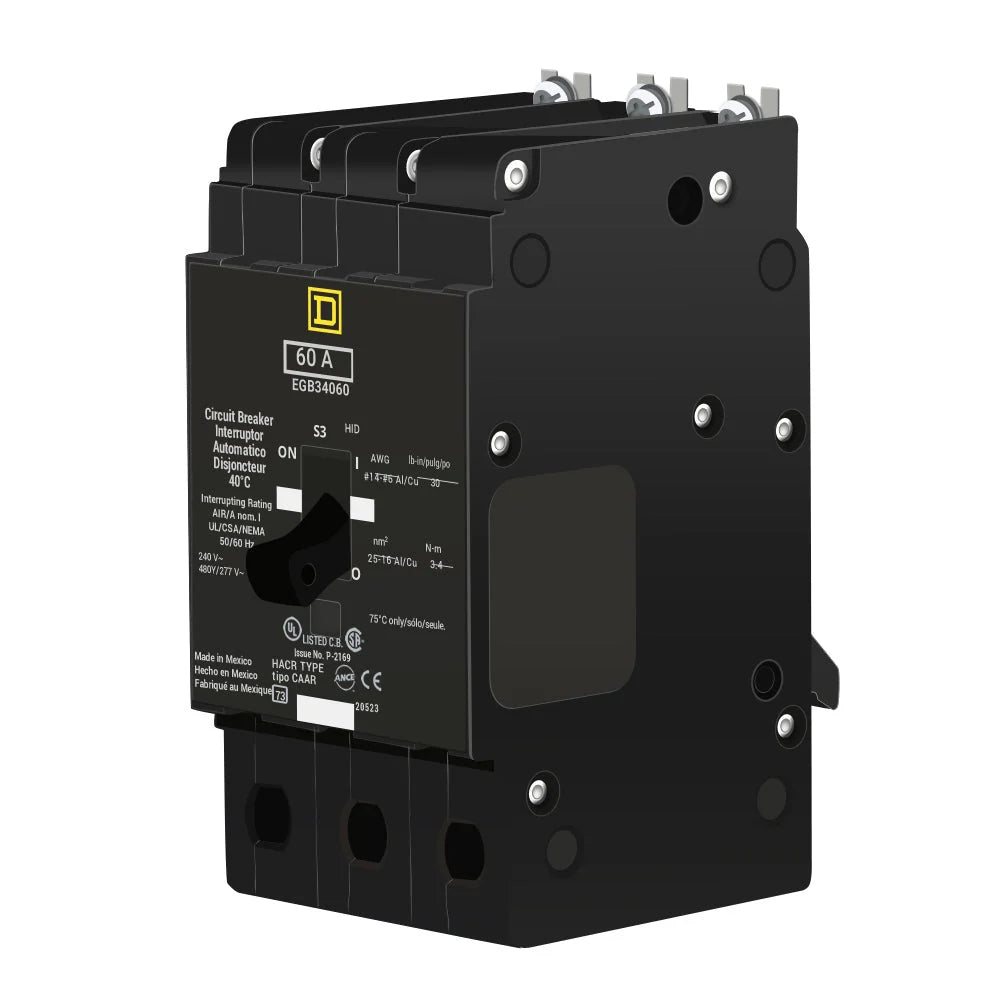

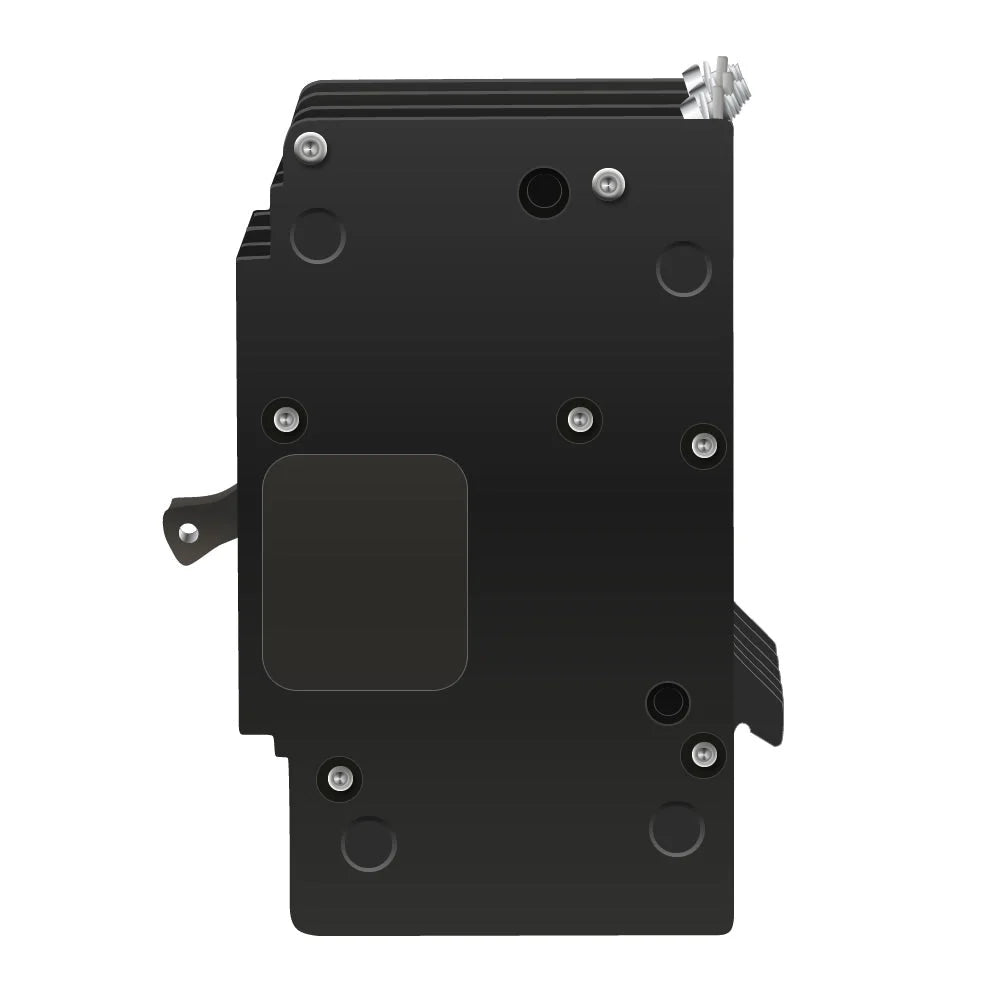

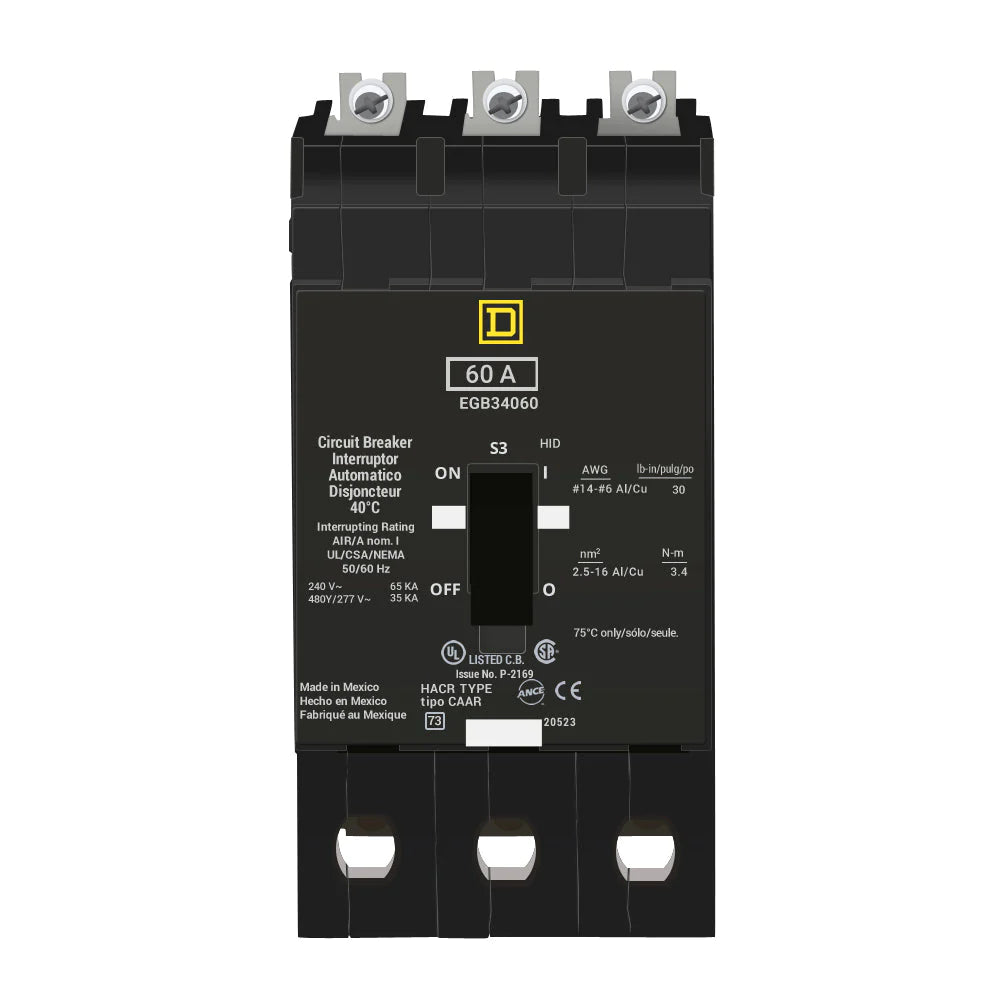

Product images are representative only. Actual product may vary.
Description
Built for industrial power distribution, the Square D EGB34060 is a 60A, 3-pole molded case circuit breaker. It utilizes thermal-magnetic technology for dependable protection. This E-Frame breaker mounts into Square D NF panelboards via a sturdy bolt-on connection. The included lugs accommodate 14-2/0 AWG copper or 12-2/0 AWG aluminum wire. Delivering a 35kAIC rating at 480Y/277VAC, it ensures high-level fault clearing. It is HACR rated for HVAC equipment and features a Visi-Trip indicator.Specifications
| Brand | Square D |
|---|---|
| Part Number | EGB34060 |
| Series | EGB |
| Amperage | 60A |
| Poles | 3 |
| Mounting Style | Bolt-On |
| Voltage | 120VAC, 240VAC, 480Y/277VAC |
| Phase | 3 |
| AIC Rating | 65kA @ 120VAC, 65kA @ 240VAC, 35kA @ 480Y/277VAC |
| Frame Type | EGB |
|---|---|
| Terminal Type | Lugs |
| For Use With | Square D NF Panelboards |
| Wire Gauge | 14-2/0 AWG (Cu), 12-2/0 AWG (Al) |
| Max Wire | 2/0 AWG |
| Min Wire | 14 AWG (Cu), 12 AWG (Al) |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Alarm Switch, Padlock Attachment |
|---|---|
| Accessories | Load Side Lugs Included |
| Standards | CSA C22.2 No. 5, HACR Rated, NEMA AB 1, NOM 117, RoHS, UL 489 |
| Approval | CSA, cULus, HACR, NOM, RoHS, UL |
| Temp Rating | -25C to 70C |
| Construction Features | HACR Rated, Visual Trip Indicator |
