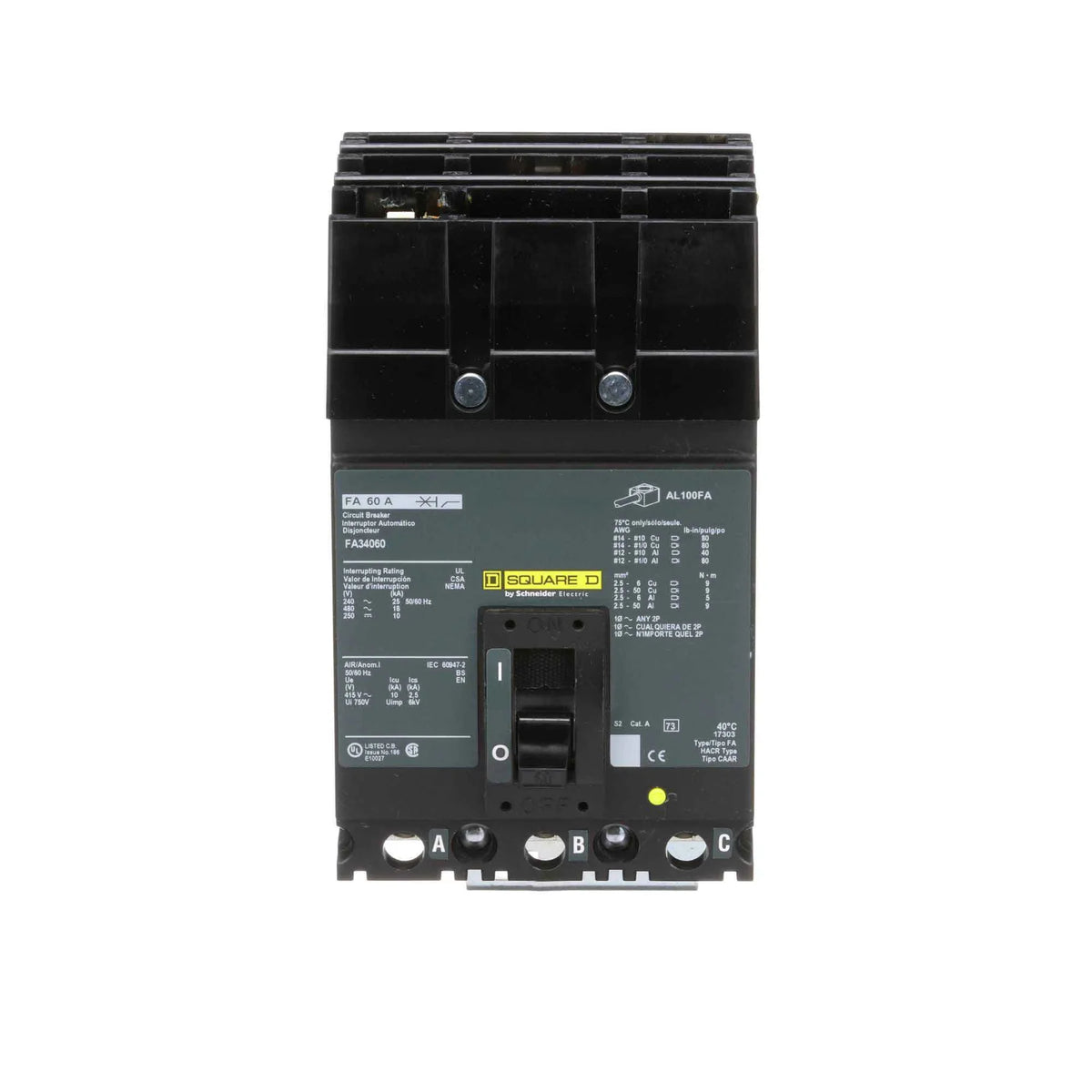

FA34060 - Square D - Molded Case Circuit Breakers I-Line Style Plug-In - 60 Amp - 3 Pole - 480 V
New
$994.99
Sale price
$994.99
Regular price
Skip to product information
FA34060 - Square D - Molded Case Circuit Breakers I-Line Style Plug-In - 60 Amp - 3 Pole - 480 V
$994.99
Sale price
$994.99
Regular price
Product images are representative only. Actual product may vary.
Description
Built for robust industrial environments, this 60-amp molded case circuit breaker offers fixed thermal and magnetic trip functions to safeguard commercial circuits. The F-frame device mounts into standard Square D I-Line panelboards, utilizing a specialized jaw connection for secure phase engagement. Equipped with the signature Visi-Trip indicator, it allows maintenance personnel to quickly identify faulted circuits. This legacy component is officially replaced by the PowerPact BDA36060.Specifications
| Brand | Square D |
| Series | FA |
| Part Number | FA34060 |
| Amperage | 60A |
| Voltage | 240VAC, 480Y/277VAC, 480VAC, 250VDC |
| Poles | 3 |
| Phase | 3 |
| AIC Rating | 25kA @ 240VAC, 18kA @ 480Y/277VAC, 18kA @ 480VAC, 10kA @ 250VDC |
| Mounting Style | I-Line |
| Terminal Type | Lugs |
| For Use With | Square D I-Line Panelboards |
| Trip Technology | Thermal Magnetic |
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Wire Gauge | 14-1/0 AWG (Cu/Al) |
| Max Wire | 1/0 AWG |
| Min Wire | 14 AWG |
| Available Options | Shunt Trip, Undervoltage Release, Alarm Switch, Auxiliary Switch, Padlock Attachment |
| Accessories | Lugs |
| Standards | CSA C22.2 No. 5, HACR, NEMA AB 1, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Visual Trip Indicator |
