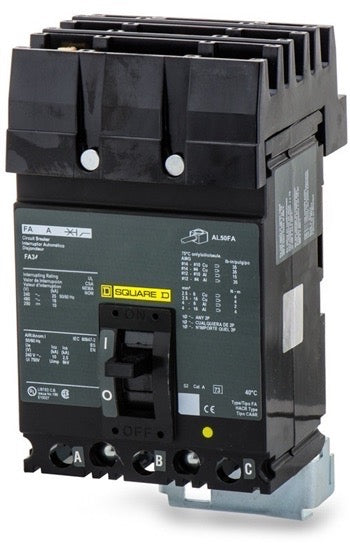

FA36025 - Square D - Molded Case Circuit Breaker I-Line Plug-In - 25 Amp - 3 Pole - 600 Volt
New
$899.99
Sale price
$899.99
Regular price
Skip to product information
FA36025 - Square D - Molded Case Circuit Breaker I-Line Plug-In - 25 Amp - 3 Pole - 600 Volt
$899.99
Sale price
$899.99
Regular price
Product images are representative only. Actual product may vary.
Description
Manufactured by Square D, the FA36025 is a 3-pole, 25A molded case circuit breaker built for industrial power distribution. It utilizes thermal-magnetic trip technology to provide long-time and instantaneous (LI) protection. Featuring an I-Line plug-on connection, this F-Frame breaker installs into compatible Square D I-Line panelboards. For modern upgrades, it crosses over to the newer PowerPact HDA36025. Rated at 18 kAIC at 480VAC, it includes a Visi-Trip indicator.Specifications
| Brand | Square D |
| Series | FA |
| Part Number | FA36025 |
| Amperage | 25A |
| Voltage | 240VAC, 480VAC, 600VAC, 250VDC |
| Poles | 3 |
| Phase | 3 |
| AIC Rating | 25kA @ 240VAC, 18kA @ 480VAC, 14kA @ 600VAC, 10kA @ 250VDC |
| Mounting Style | I-Line |
| Terminal Type | Lugs |
| For Use With | Square D I-Line Panelboards |
| Trip Technology | Thermal Magnetic |
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Wire Gauge | 14-4 AWG (Cu), 12-4 AWG (Al) |
| Max Wire | 4 AWG |
| Min Wire | 14 AWG |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch |
| Accessories | Lugs |
| Standards | CSA C22.2 No. 5, HACR, NEMA AB 1, UL 489, W-C-375B/GEN |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Visual Trip Indicator |
