FA36030 - Square D - Molded Case Circuit Breaker I-Line Plug-In - 30 Amp - 3 Pole - 600 Volt
New
$849.99
Sale price
$849.99
Regular price
Skip to product information
FA36030 - Square D - Molded Case Circuit Breaker I-Line Plug-In - 30 Amp - 3 Pole - 600 Volt
$849.99
Sale price
$849.99
Regular price

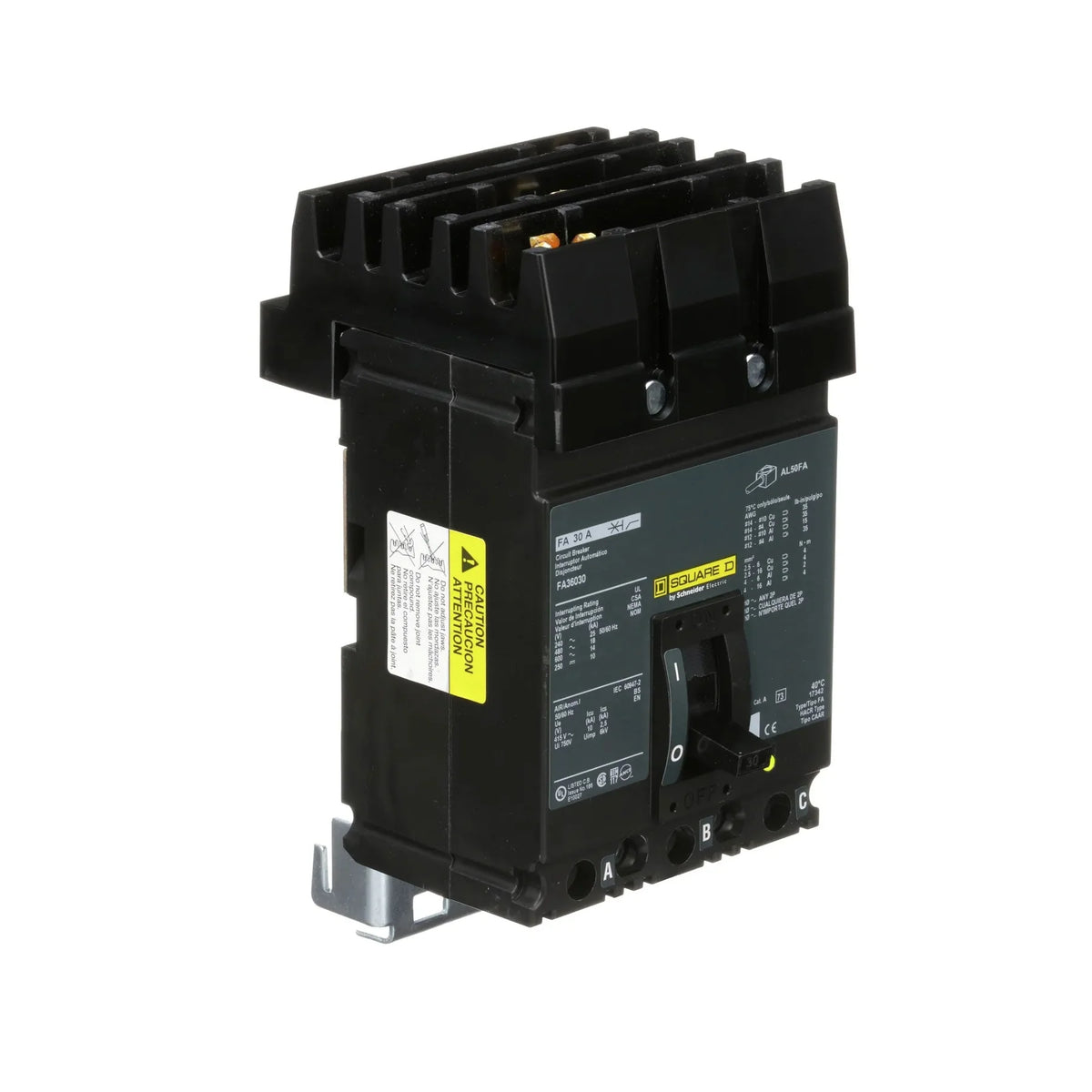

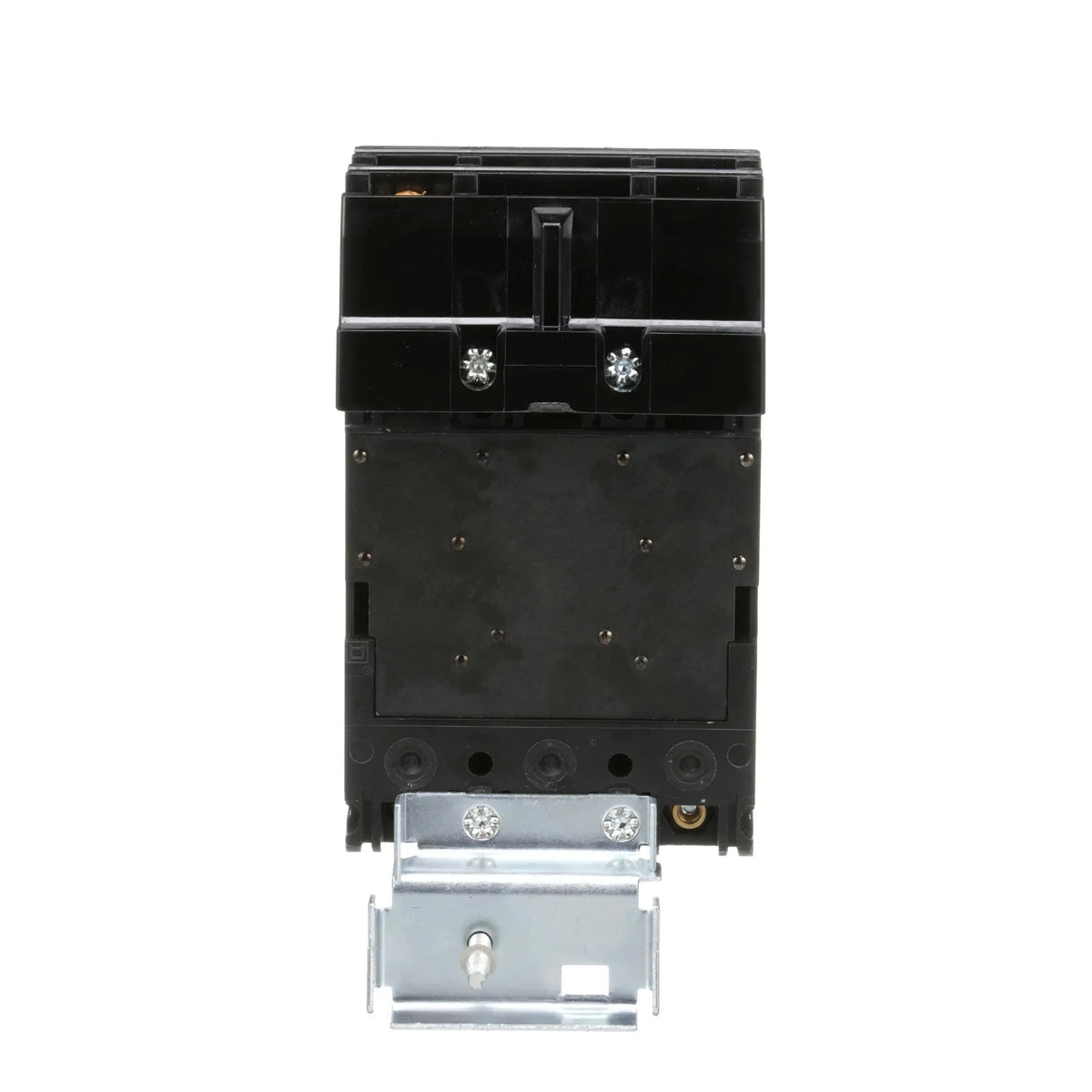

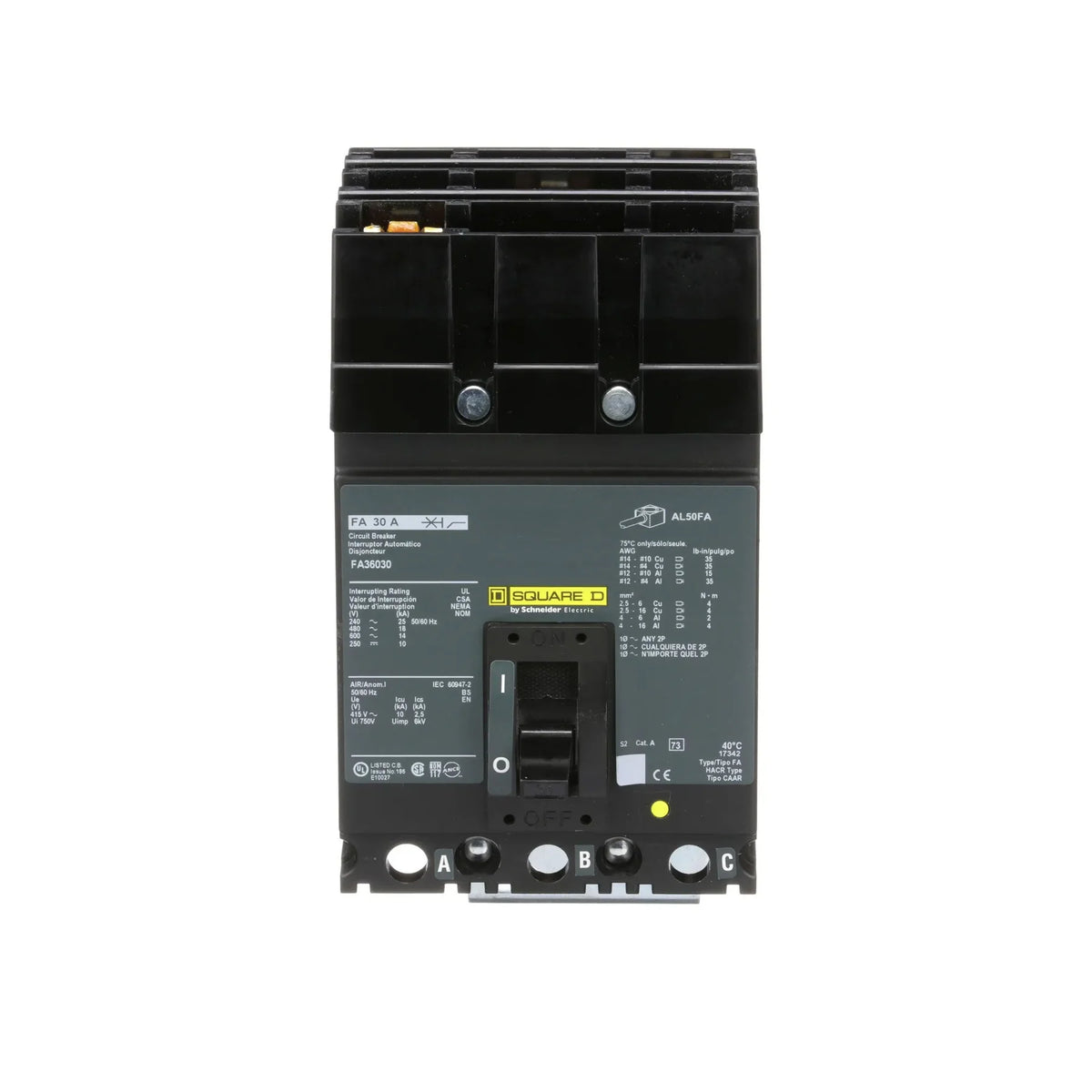

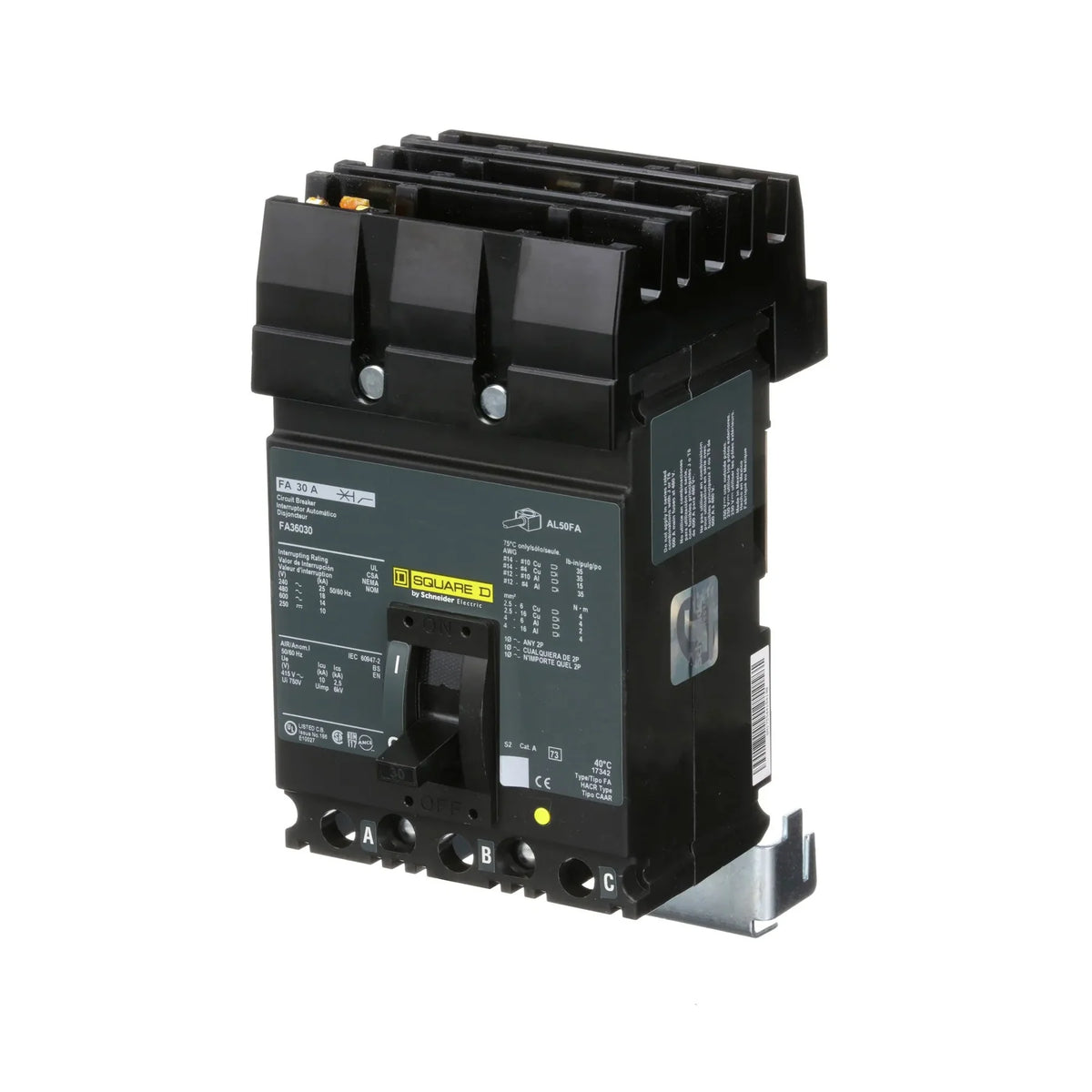

Product images are representative only. Actual product may vary.
Description
Designed for robust power distribution, the FA36030 is a 3-pole, 30A molded case circuit breaker from Square D. It employs thermal-magnetic trip technology to deliver long-time and instantaneous (LI) protection. This F-Frame breaker features an I-Line plug-on connection, ensuring a secure fit into Square D I-Line panelboards. For facility maintenance, it can be replaced by the newer PowerPact HDA36030. It carries an 18 kAIC rating at 480VAC and features a Visi-Trip indicator.Specifications
| Brand | Square D |
| Series | FA |
| Part Number | FA36030 |
| Amperage | 30A |
| Voltage | 240VAC, 480VAC, 600VAC, 250VDC |
| Poles | 3 |
| Phase | 3 |
| AIC Rating | 25kA @ 240VAC, 18kA @ 480VAC, 14kA @ 600VAC, 10kA @ 250VDC |
| Mounting Style | I-Line |
| Terminal Type | Lugs |
| For Use With | Square D I-Line Panelboards, Switchboards |
| Trip Technology | Thermal Magnetic |
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Wire Gauge | 14-4 AWG (Cu/Al) |
| Max Wire | 4 AWG |
| Min Wire | 14 AWG |
| Available Options | Shunt Trip, Undervoltage Release, Auxiliary Switch, Alarm Switch |
| Accessories | Lugs |
| Standards | CSA C22.2 No. 5, HACR, NEMA AB 1, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated |
