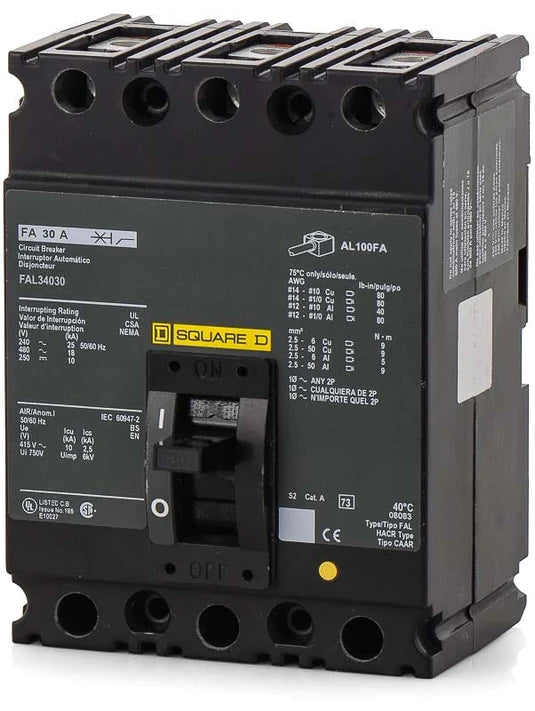

FAL34030 - Square D - Molded Case Circuit Breaker Feed-Thru - 30 Amp - 3 Pole - 480 Volt
New
$549.99
Sale price
$549.99
Regular price
Skip to product information
FAL34030 - Square D - Molded Case Circuit Breaker Feed-Thru - 30 Amp - 3 Pole - 480 Volt
$549.99
Sale price
$549.99
Regular price
Product images are representative only. Actual product may vary.
Description
Providing dependable thermal-magnetic protection, the FAL34030 is a 3-pole, 30A breaker built for commercial environments. It utilizes long-time and instantaneous trip functions to safeguard infrastructure. The unit-mount configuration allows secure installation into Square D enclosures and switchboards. This legacy component crosses over to the BDL36030. With an 18kAIC rating at 480V, this F-Frame breaker features the Square D Visi-Trip indicator for quick status checks.Specifications
| Brand | Square D |
| Series | FAL |
| Part Number | FAL34030 |
| Amperage | 30A |
| Voltage | 240VAC, 480VAC, 250VDC |
| Poles | 3 |
| Phase | 3 |
| AIC Rating | 25kA @ 240VAC, 18kA @ 480VAC, 10kA @ 250VDC |
| Mounting Style | Unit Mount |
| Terminal Type | Lugs |
| For Use With | Square D Enclosures, Switchboards, Panelboards (Unit Mount) |
| Trip Technology | Thermal Magnetic |
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Wire Gauge | 14-4 AWG (Cu), 12-4 AWG (Al) |
| Max Wire | 4 AWG |
| Min Wire | 14 AWG (Cu), 12 AWG (Al) |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch |
| Accessories | Lugs |
| Standards | CSA C22.2 No. 5, HACR Rated, IEC 60947-2, NEMA AB 1, UL 489, W-C-375B/GEN |
| Approval | CSA, IEC, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Visual Trip Indicator |
