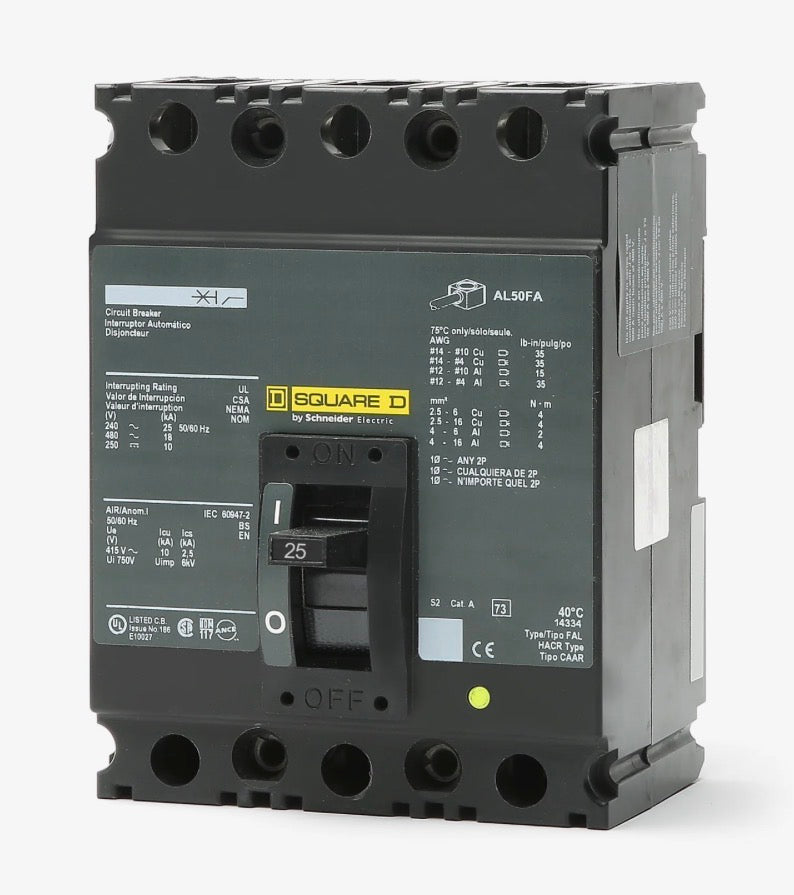

FAL36025 - Square D - Molded Case Circuit Breaker Feed-Thru - 25 Amp - 3 Pole - 600 Volt
New
$564.99
Sale price
$564.99
Regular price
Skip to product information
FAL36025 - Square D - Molded Case Circuit Breaker Feed-Thru - 25 Amp - 3 Pole - 600 Volt
$564.99
Sale price
$564.99
Regular price
Product images are representative only. Actual product may vary.
Description
Operating at 25 amps, this 3-pole molded case circuit breaker delivers reliable long-time and instantaneous protection for industrial environments. The legacy F-Frame design is well-suited for commercial buildings requiring robust 600VAC or 250VDC capabilities. This unit fastens into Square D switchboards, enclosures, and motor control centers. It serves as a vital replacement part for older systems, though modern panel designs have transitioned to the HGL36025 equivalent.Specifications
| Brand | Square D |
|---|---|
| Part Number | FAL36025 |
| Series | FAL |
| Amperage | 25A |
| Poles | 3 |
| Mounting Style | Unit Mount |
| Voltage | 240VAC, 480Y/277VAC, 480VAC, 600Y/347VAC, 600VAC, 250VDC |
| Phase | 3 |
| AIC Rating | 25kA @ 240VAC, 18kA @ 480Y/277VAC, 18kA @ 480VAC, 14kA @ 600Y/347VAC, 14kA @ 600VAC, 10kA @ 250VDC |
| Frame Type | FAL |
|---|---|
| Terminal Type | Lugs |
| For Use With | Square D Enclosures, Switchboards, Motor Control Centers |
| Wire Gauge | 14-1/0 AWG (Cu), 12-1/0 AWG (Al) |
| Max Wire | 1/0 AWG |
| Min Wire | 14 AWG (Cu) / 12 AWG (Al) |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch |
|---|---|
| Accessories | Line and Load Lugs Included |
| Standards | CSA C22.2 No. 5, HACR, NEMA AB 1, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated |
