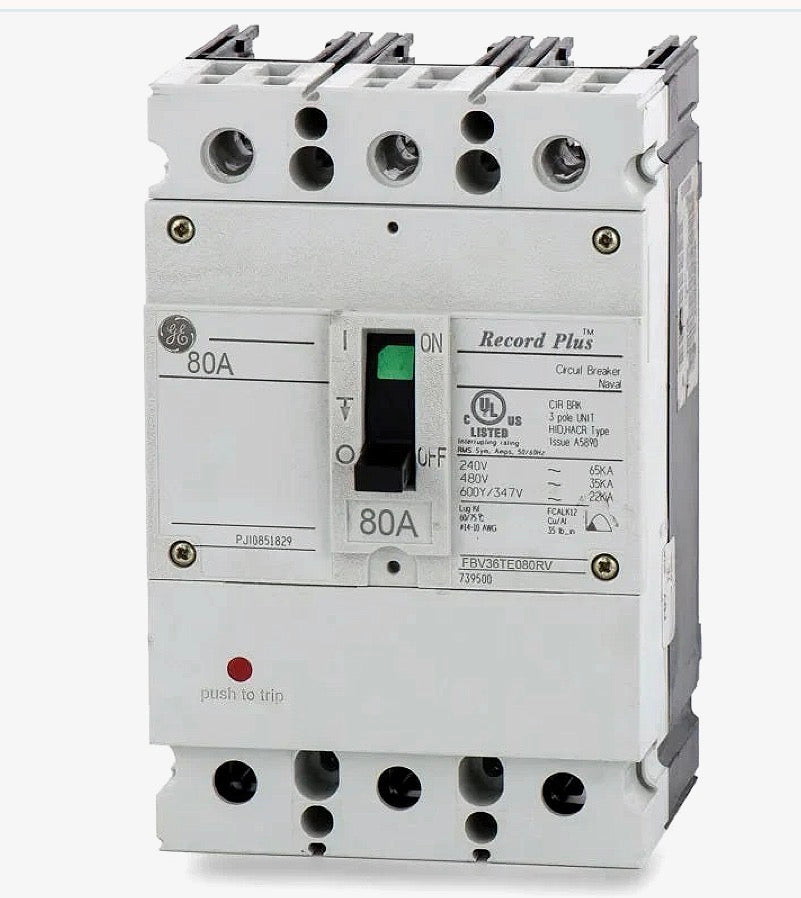

FBV36TE080RV - GE - Molded Case Circuit Breaker Bolt-On- 80 Amp - 3 Pole - 480 Volt
New
$799.99
Sale price
$799.99
Regular price
Skip to product information
FBV36TE080RV - GE - Molded Case Circuit Breaker Bolt-On- 80 Amp - 3 Pole - 480 Volt
$799.99
Sale price
$799.99
Regular price
Product images are representative only. Actual product may vary.
Description
Providing 80 amps of reliable overcurrent defense, the GE FBV36TE080RV is a 3-pole molded case circuit breaker from the Record Plus family. It utilizes a non-interchangeable thermal-magnetic trip unit to safeguard commercial and industrial electrical systems. This bolt-on MCCB is engineered with an "RV" suffix, meaning it includes the specific line connections required to mount into GE A-Series AD panelboards. It comes standard with load-side lugs for straightforward wire termination.Specifications
| Brand | ABB / General Electric |
|---|---|
| Part Number | FBV36TE080RV |
| Series | FBV |
| Amperage | 80A |
| Poles | 3 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC, 480VAC, 600Y/347VAC |
| Phase | 3 |
| AIC Rating | 65kA @ 240VAC, 35kA @ 480VAC, 22kA @ 600Y/347VAC |
| Frame Type | FB |
|---|---|
| Terminal Type | Lugs |
| For Use With | GE A-Series AD Panelboards |
| Wire Gauge | 4-1/0 AWG (Cu/Al) |
| Max Wire | 1/0 AWG |
| Min Wire | 4 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Bell Alarm |
|---|---|
| Accessories | Load Side Lugs Included, Line Connections for AD Panels |
| Standards | CSA C22.2 No. 5, IEC 60947-2, NEMA AB 1, UL 489 |
| Approval | CE, CSA, HACR, UL |
| Temp Rating | -25C to 70C |
| Construction Features | Current Limiting, HACR Rated, Naval Rated, Reverse Feed, Double-Break Rotary Contact Structure, Non-Interchangeable Trip |
