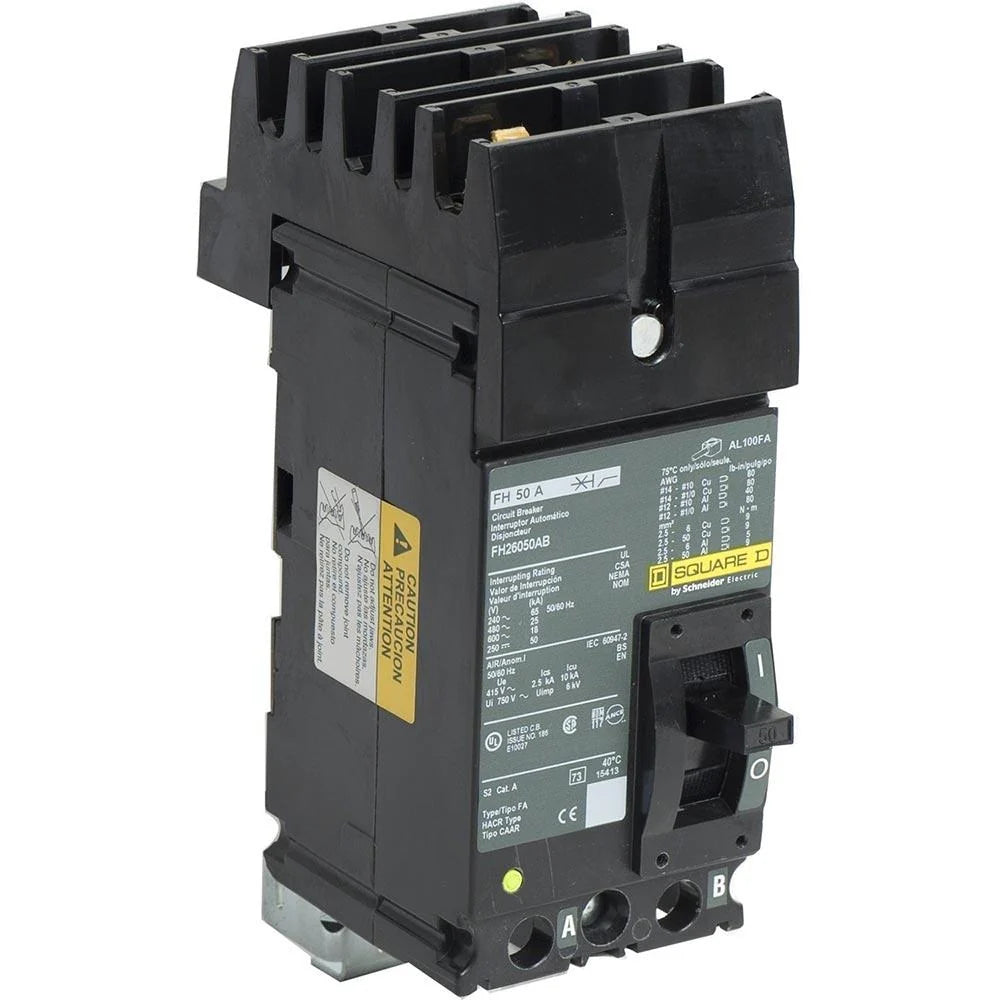

FH26050AB - Square D - Molded Case Circuit Breaker I-Line Plug-In - 50 Amp - 2 Pole - 600 Volt
$649.99
Sale price
$649.99
Regular price
Product images are representative only. Actual product may vary.
Description
Built to handle demanding electrical loads, this 50A thermal-magnetic breaker ensures reliable long-time and instantaneous overcurrent defense. It integrates into Square D I-Line panelboards requiring a BC phase connection. When modernizing equipment, engineers typically replace this legacy F-Frame unit with the current HGA260504 model. The device supports 14-1/0 AWG wiring and includes a high interrupting capacity of 25kA at 480VAC for robust industrial power distribution.Specifications
| Brand | Square D |
| Series | FH |
| Part Number | FH26050BC |
| Amperage | 50A |
| Voltage | 240VAC, 480VAC, 600VAC, 250VDC |
| Poles | 2 |
| Phase | 1 |
| AIC Rating | 65kA @ 240VAC, 25kA @ 480VAC, 18kA @ 600VAC, 10kA @ 250VDC |
| Mounting Style | I-Line |
| Terminal Type | Lugs |
| For Use With | Square D I-Line Panelboards |
| Trip Technology | Thermal Magnetic |
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Wire Gauge | 14-1/0 AWG (Cu), 12-1/0 AWG (Al) |
| Max Wire | 1/0 AWG |
| Min Wire | 14 AWG |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch |
| Accessories | Phase Connection BC (Factory Configured), Lugs (AL100FA) |
| Standards | HACR, UL 489, CSA C22.2 No. 5, NEMA AB 1, IEC 60947-2 |
| Approval | CE, CSA, NOM, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, High Interrupting Capacity, Visual Trip Indicator |
