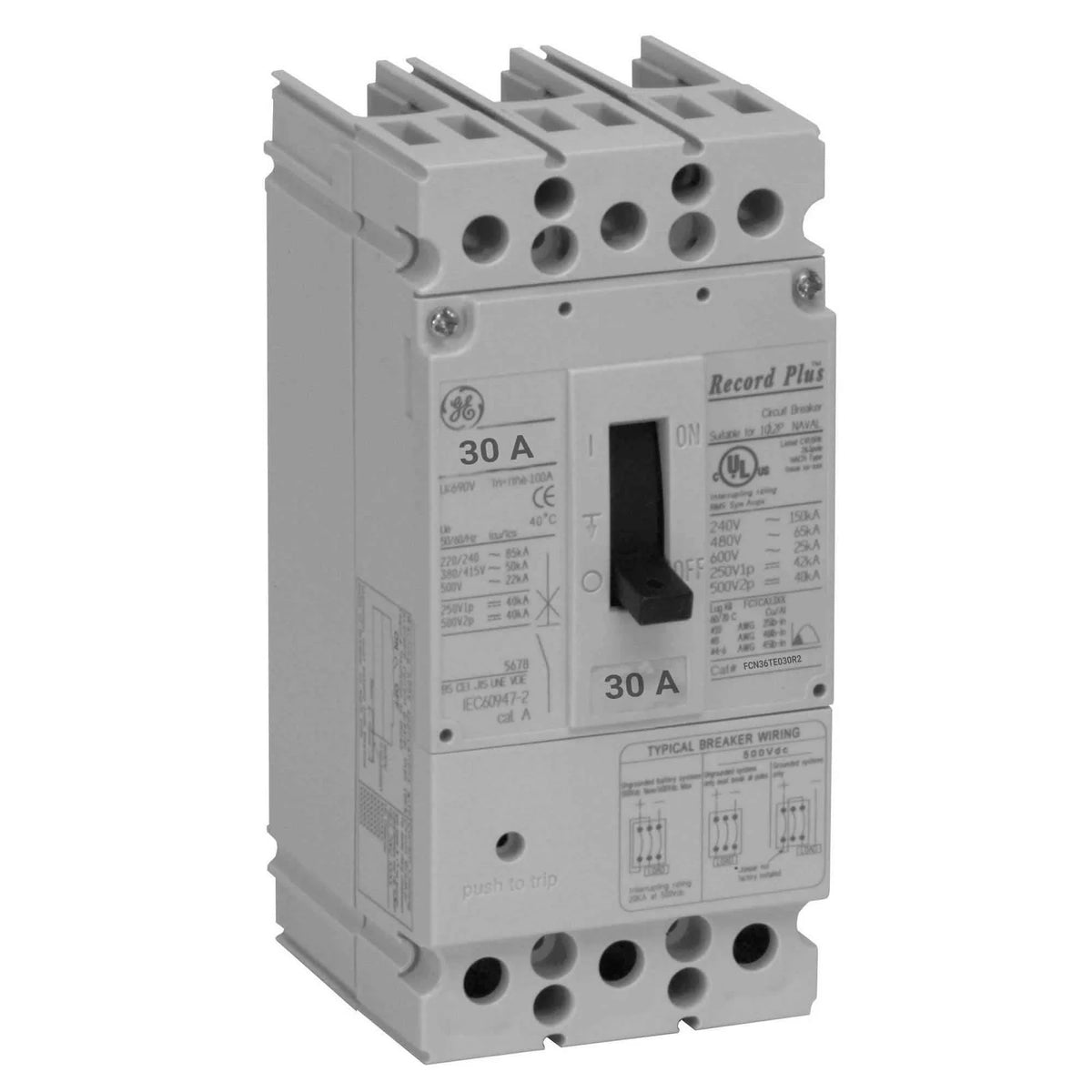

FCN36TE030R - GE 30 Amp Molded Case Circuit Breaker Bolt-On - 30 Amp - 3 Pole - 600 Volt
$984.99
Sale price
$984.99
Regular price
Product images are representative only. Actual product may vary.
Description
Built for commercial power systems, the GE FCN36TE030R is a 3-pole, 30A circuit breaker from the Record Plus FCN series. It utilizes fixed thermal-magnetic trip elements to deliver dependable LI protection. Designed as a unit mount breaker, it integrates into GE switchboards and motor control centers. It can also be adapted for Spectra panelboards. This configuration does not include terminal lugs. Delivering 65kAIC at 480V, this HACR-rated breaker features current-limiting technology.Specifications
| Brand | ABB / General Electric |
|---|---|
| Series | FCN |
| Amperage | 30A |
| Poles | 3 |
| Mounting Style | Unit Mount |
| Voltage | 240VAC, 480VAC, 600Y/347VAC, 250VDC, 500VDC |
| Phase | 3 |
| AIC Rating | 100kA @ 240VAC, 65kA @ 480VAC, 25kA @ 600Y/347VAC, 40kA @ 250VDC, 40kA @ 500VDC |
| Frame Type | FC100 |
|---|---|
| Terminal Type | Lugs |
| For Use With | GE Switchboards, Motor Control Centers, Enclosures, GE Spectra Panelboards (with retrofit kit) |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Bell Alarm, Lug Kits |
|---|---|
| Accessories | Lugs Not Included |
| Standards | CSA C22.2 No. 5, IEC 60947-2, NEMA AB-1, UL 489 |
| Approval | CCC, CE, CSA, KEMA, Lloyd's, UL |
| Temp Rating | 40C |
| Construction Features | Current Limiting, HACR Rated, Reverse Feed |
