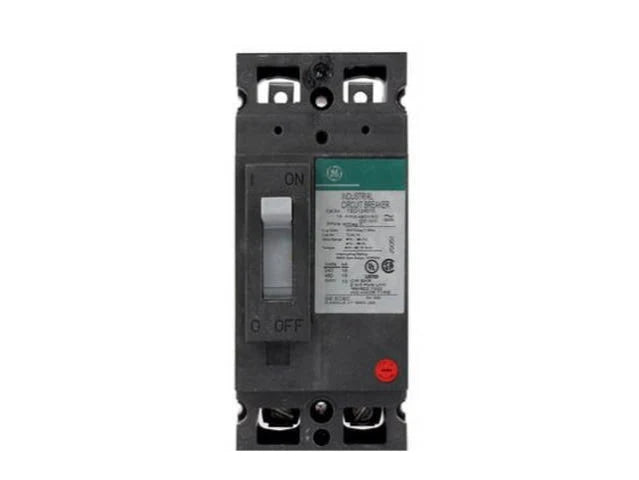

TED124100 - GE - Molded Case Circuit Breaker Feed-Thru - 100 Amp - 2 Pole - 480 Volt
New
$112.00
Sale price
$112.00
Regular price
Skip to product information
TED124100 - GE - Molded Case Circuit Breaker Feed-Thru - 100 Amp - 2 Pole - 480 Volt
$112.00
Sale price
$112.00
Regular price
Product images are representative only. Actual product may vary.
Description
Built for commercial power distribution, the GE TED124100 is a 2-pole, 100A bolt-on molded case circuit breaker. It provides reliable thermal magnetic overcurrent protection within the proven E150 frame architecture. This unit installs into GE A-Series and Spectra panelboards. When modernizing older electrical systems, this legacy breaker can be substituted with the newer Tmax XT1 platform using an appropriate retrofit kit.Specifications
| Brand | ABB / General Electric |
| Series | TED |
| Part Number | TED124100 |
| Amperage | 100A |
| Voltage | 240VAC, 480VAC, 250VDC |
| Poles | 2 |
| Phase | 1 |
| AIC Rating | 18kA @ 240VAC, 18kA @ 480VAC, 10kA @ 250VDC |
| Mounting Style | Bolt-On |
| Terminal Type | Lugs |
| For Use With | GE A-Series Panelboards, GE Spectra Panelboards |
| Trip Technology | Thermal Magnetic |
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Wire Gauge | 3 AWG - 3/0 AWG (Cu), 1 AWG - 3/0 AWG (Al) |
| Max Wire | 3/0 AWG |
| Min Wire | 3 AWG (Cu), 1 AWG (Al) |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Bell Alarm, Motor Operator |
| Accessories | Lugs (TCAL15) |
| Standards | CSA C22.2 No. 5, HACR Rated, NEMA AB 1, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Non-Interchangeable Trip, Reverse Feed, Quick-Make/Quick-Break, Trip-Free Mechanism |
