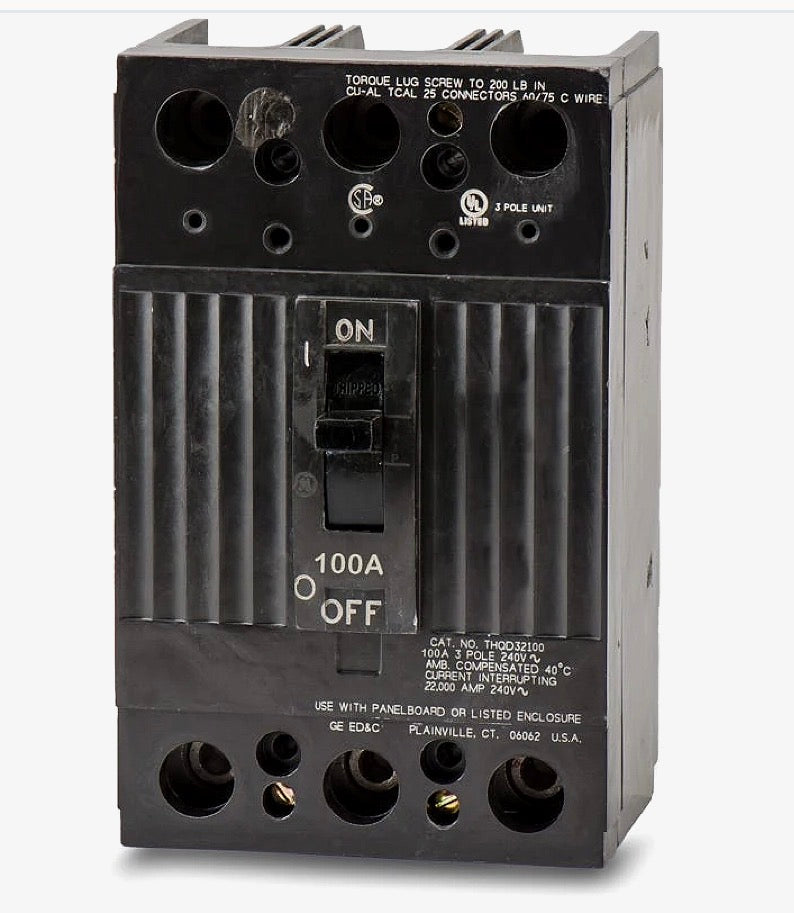

THQD32100WL - GE - Molded Case Circuit Breaker Feed-Thru - 100 Amp - 3 Pole - 240 Volt
New
$949.99
Sale price
$949.99
Regular price
Skip to product information
THQD32100WL - GE - Molded Case Circuit Breaker Feed-Thru - 100 Amp - 3 Pole - 240 Volt
$949.99
Sale price
$949.99
Regular price
Product images are representative only. Actual product may vary.
Description
Engineered for three-phase systems, the GE THQD32100 is a 100A MCCB from the Q-Line family. It provides essential overcurrent protection for commercial and industrial environments. The unit mount design allows installation into GE A-Series panelboards, Spectra panels, meter stacks, and enclosures. It comes equipped with load lugs terminating 4 AWG to 300 kcmil conductors. Operating with a 22kAIC rating at 240VAC, the breaker employs fixed thermal-magnetic trip units for precise LI functions.Specifications
| Brand | ABB / General Electric |
|---|---|
| Part Number | THQD32100 |
| Series | THQD |
| Amperage | 100A |
| Poles | 3 |
| Mounting Style | Unit Mount |
| Voltage | 120VAC, 240VAC, 120/240VAC |
| Phase | 3 |
| AIC Rating | 22kA @ 120VAC, 22kA @ 240VAC, 22kA @ 120/240VAC |
| Terminal Type | Lugs |
|---|---|
| For Use With | GE A-Series Panelboards, GE Spectra Series Panelboards, GE Meter Stacks, Enclosures |
| Wire Gauge | 4 AWG - 300 kcmil (Cu/Al) |
| Max Wire | 300 kcmil |
| Min Wire | 4 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch, Padlock Attachment |
|---|---|
| Accessories | Load Lugs |
| Standards | CSA C22.2 No. 5, NEMA AB 1, UL 489 |
| Approval | CSA, HACR, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Common Trip, Non-Interchangeable Trip, High Interrupting Capacity, Reverse Feed |
