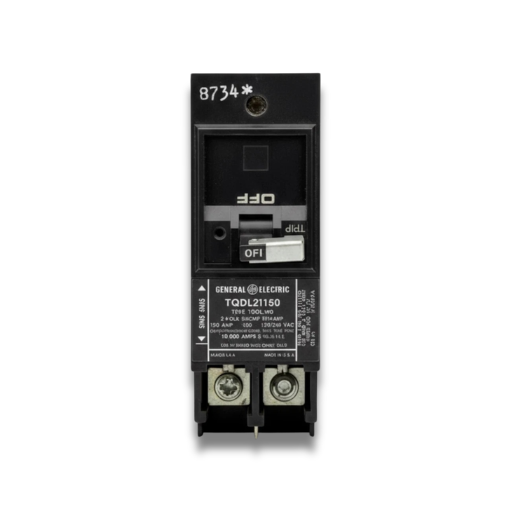

GE TQDL21150 – 150 Amp, 2-Pole Plug-In Circuit Breaker
GE TQDL21150 – 150 Amp, 2-Pole Plug-In Circuit Breaker
Product images are representative only. Actual product may vary.
GE TQDL21150 – 150 Amp, 2-Pole Plug-In Circuit Breaker
The GE TQDL21150 is a 150-amp, 2-pole thermal-magnetic molded case circuit breaker from General Electric's Q-Line, Type TQDL, rated 120/240 VAC with a 10 kAIC interrupting rating. Its plug-in design fits GE load centers and panelboards, and its internal common trip with Long-Time and Instantaneous functions provides dependable overload and short-circuit protection. It is HACR rated for air conditioning, heating, and refrigeration equipment.
Key Specifications
| Part Number | TQDL21150 |
| Manufacturer | General Electric (GE / ABB) |
| Series / Type | Q-Line, Type TQDL |
| Amperage | 150 A |
| Poles | 2 |
| Voltage Rating | 120/240 VAC |
| Interrupting Rating | 10 kAIC @ 120/240V |
| Trip Type | Thermal-magnetic, internal common trip |
| Mounting | Plug-In |
| Special Ratings | HACR, UL Listed |
| Shipping Package | 10 x 8 x 8 in |
Features
- Plug-in mounting for GE load centers and panelboards
- Thermal-magnetic trip with internal common trip across both poles
- 10 kAIC @ 120/240V interrupting capacity
- HACR rated for HVAC and refrigeration circuits
- UL Listed Q-Line family breaker
Applications
The TQDL21150 serves as a main or feeder breaker in residential and light commercial panels — protecting service entrances, subpanels, HVAC equipment, and large appliance circuits at 120/240 VAC. It is a common replacement for existing GE Q-Line installations.
Frequently Asked Questions
What is the interrupting rating of the GE TQDL21150?
It is rated 10 kAIC at 120/240V.
Can the TQDL21150 be used as a main breaker?
Yes — it is commonly used as a 150A main or feeder breaker in GE load centers that accept Q-Line plug-in breakers.
Is the TQDL21150 HACR rated?
Yes — it is HACR rated, making it suitable for heating, air conditioning, and refrigeration equipment circuits.
