GJL36050M05 - Square D - Molded Case Circuit Breakers Feed-Thru - 50 Amp - 3 Pole - 600 V
New
$1,099.99
Sale price
$1,099.99
Regular price
Skip to product information
GJL36050M05 - Square D - Molded Case Circuit Breakers Feed-Thru - 50 Amp - 3 Pole - 600 V
$1,099.99
Sale price
$1,099.99
Regular price

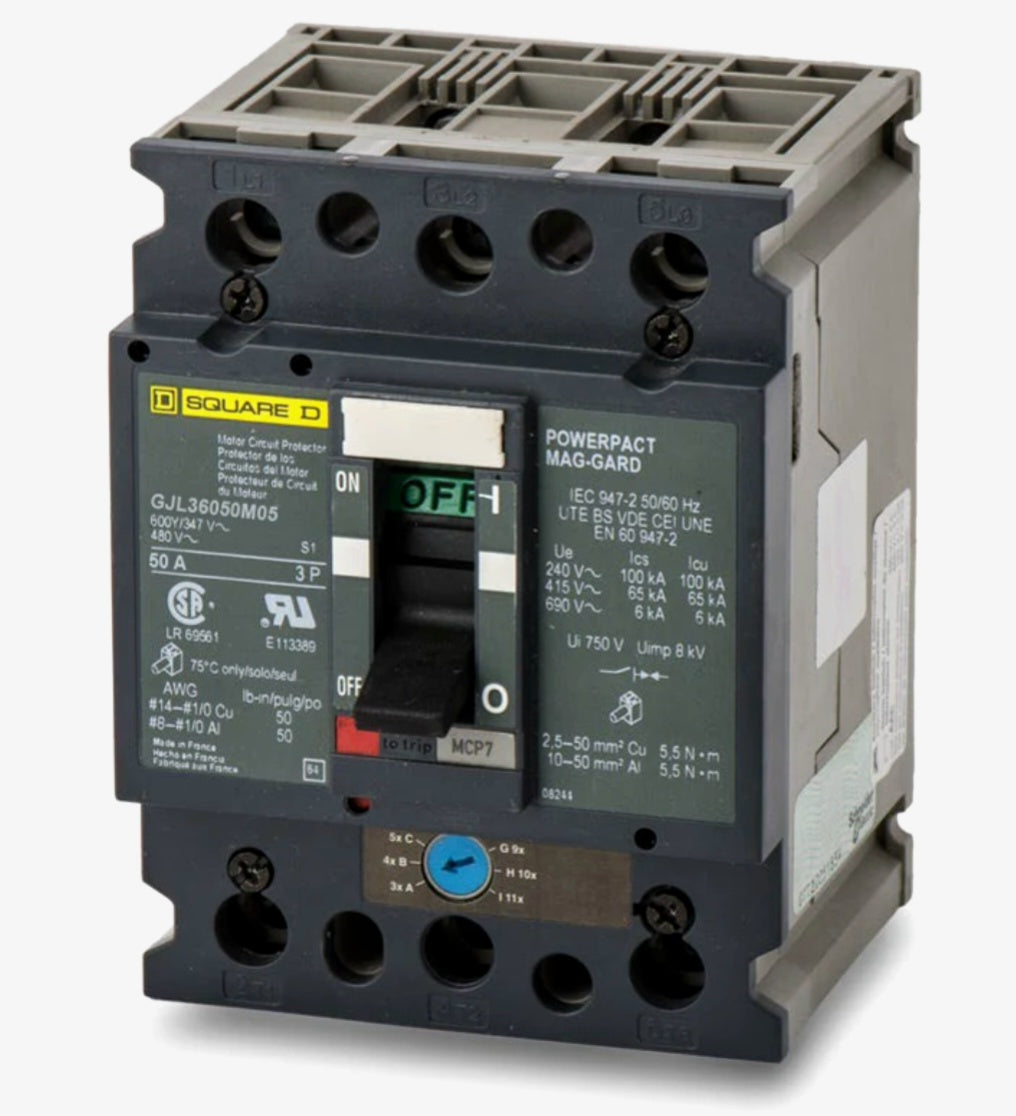

Product images are representative only. Actual product may vary.
Description
The Square D GJL36050M05 is a 50A PowerPacT G-Frame motor circuit protector engineered for demanding industrial environments. It supplies magnetic-only, instantaneous trip functionality to clear short circuits in motor branch wiring. Designed for unit-mount installations, this device fits into standard motor control centers and combination starters. For long-term maintenance, note that this model is replaced by the HJL36050M72. The magnetic trip adjusts between 150A and 550A for precise tuning.Specifications
| Brand | Square D |
|---|---|
| Part Number | GJL36050M05 |
| Series | GJL |
| Amperage | 50A |
| Poles | 3 |
| Mounting Style | Unit Mount |
| Voltage | 208Y/120VAC, 240VAC, 480Y/277VAC, 480VAC, 600Y/347VAC |
| Phase | 3 |
| AIC Rating | 100kA @ 208Y/120VAC, 100kA @ 240VAC, 65kA @ 480Y/277VAC, 65kA @ 480VAC, 18kA @ 600Y/347VAC |
| Amperage Range | 150-550A |
|---|
| Frame Type | GJL |
|---|---|
| Terminal Type | Lugs |
| For Use With | Square D Motor Control Centers, Combination Motor Starters |
| Wire Gauge | 14-1/0 AWG (Cu), 8-1/0 AWG (Al) |
| Max Wire | 1/0 AWG |
| Min Wire | 14 AWG (Cu), 8 AWG (Al) |
| Trip Technology | Magnetic Only |
|---|---|
| Trip Function Code | I |
| Trip Function | Instantaneous Only |
| Trip Adjustability | Adjustable Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Alarm Switch, Undervoltage Release |
|---|---|
| Accessories | Lugs (Line & Load) |
| Standards | CSA C22.2 No. 5, IEC 60947-2, UL 489 |
| Approval | CE, CSA, IEC, UL |
| Temp Rating | 40C |
| Construction Features | Mag-Gard, Motor Circuit Protector, Current Limiting |
