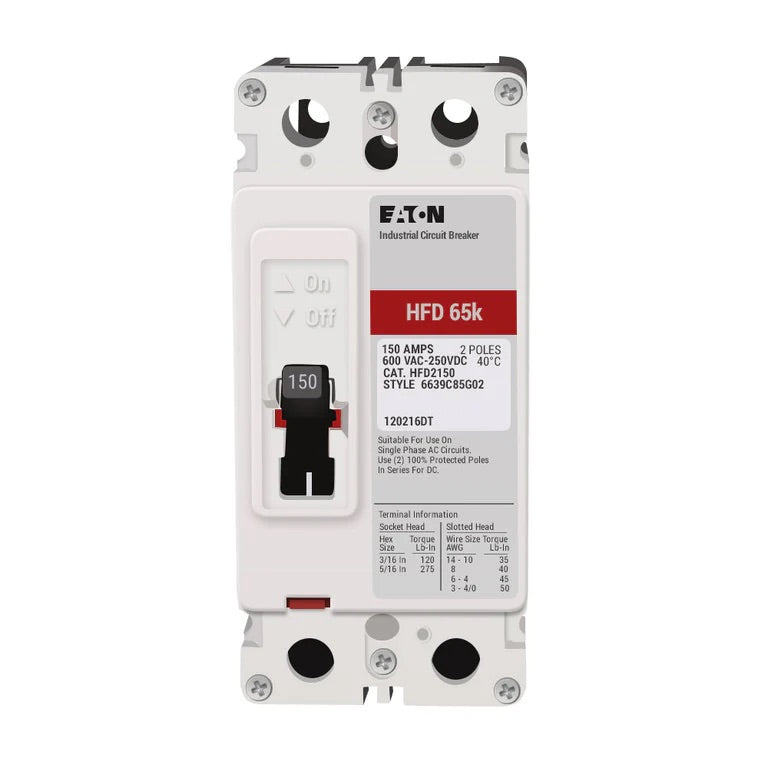

Eaton - HFD2150 150A 2-Pole 600V Bolt-On Molded Case Circuit Breaker
Eaton - HFD2150 150A 2-Pole 600V Bolt-On Molded Case Circuit Breaker
Product images are representative only. Actual product may vary.
The Eaton HFD2150 is a 2-pole, 150-amp thermal magnetic molded case circuit breaker (MCCB) rated for 600VAC with bolt-on mounting. Manufactured by Eaton (formerly Cutler-Hammer), this HFD-frame, 2-pole breaker delivers reliable overcurrent and short-circuit protection for single-phase and two-wire feeder and branch circuits in commercial and industrial 600V power distribution systems. Available in reconditioned condition for cost-effective replacement applications.
Specifications
| Attribute | Value |
|---|---|
| Part Number | HFD2150 |
| Manufacturer | Eaton / Cutler-Hammer |
| Amperage Rating | 150A |
| Voltage Rating | 600VAC |
| Number of Poles | 2 |
| Trip Type | Thermal Magnetic |
| Mount Type | Bolt-On |
| Interrupting Rating | 65kA @ 240V / 25kA @ 600V |
| Standard | UL 489 Listed |
| Frame Series | HFD |
Key Features
- 2-pole configuration for single-phase and two-wire 150A circuit protection at 600V
- Bolt-on mounting for secure installation in Eaton/Cutler-Hammer HFD-frame compatible panelboards
- Thermal magnetic trip for time-delay overload and instantaneous fault protection
- 150-amp, 600V rating for medium-capacity feeder and branch circuits
- UL 489 Listed, NEC compliant
- Available in used/reconditioned condition — tested and inspected prior to shipment
Common Applications
- 150A single-phase feeder circuit protection in 600V commercial and industrial panels
- Two-wire large equipment and motor circuit protection
- Commercial building single-phase distribution circuits at 600V
- Industrial control and equipment branch circuit protection
- Replacement in Eaton HFD-frame 2-pole compatible panelboards
Frequently Asked Questions
What is the Eaton HFD2150?
The Eaton HFD2150 is a 150-amp, 2-pole, 600V thermal magnetic bolt-on MCCB used for overcurrent and short-circuit protection of single-phase and two-wire feeder and branch circuits in commercial and industrial 600V electrical systems.
Is the HFD2150 available new or used?
Alpha Brokers & Controls stocks the Eaton HFD2150 in used/reconditioned condition. All used circuit breakers are tested and inspected before shipping to ensure reliable performance.
What is the difference between HFD2150 (2-pole) and a 3-pole HFD breaker?
A 2-pole HFD breaker like the HFD2150 protects two conductors in single-phase or two-wire applications, while a 3-pole HFD breaker protects three conductors in three-phase circuits. Select based on your circuit's phase configuration.
