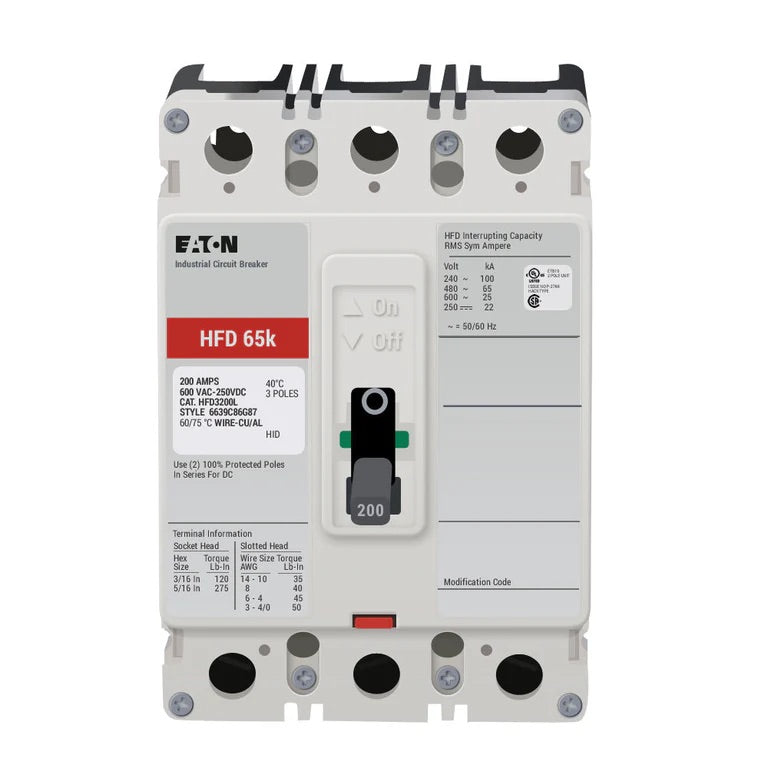

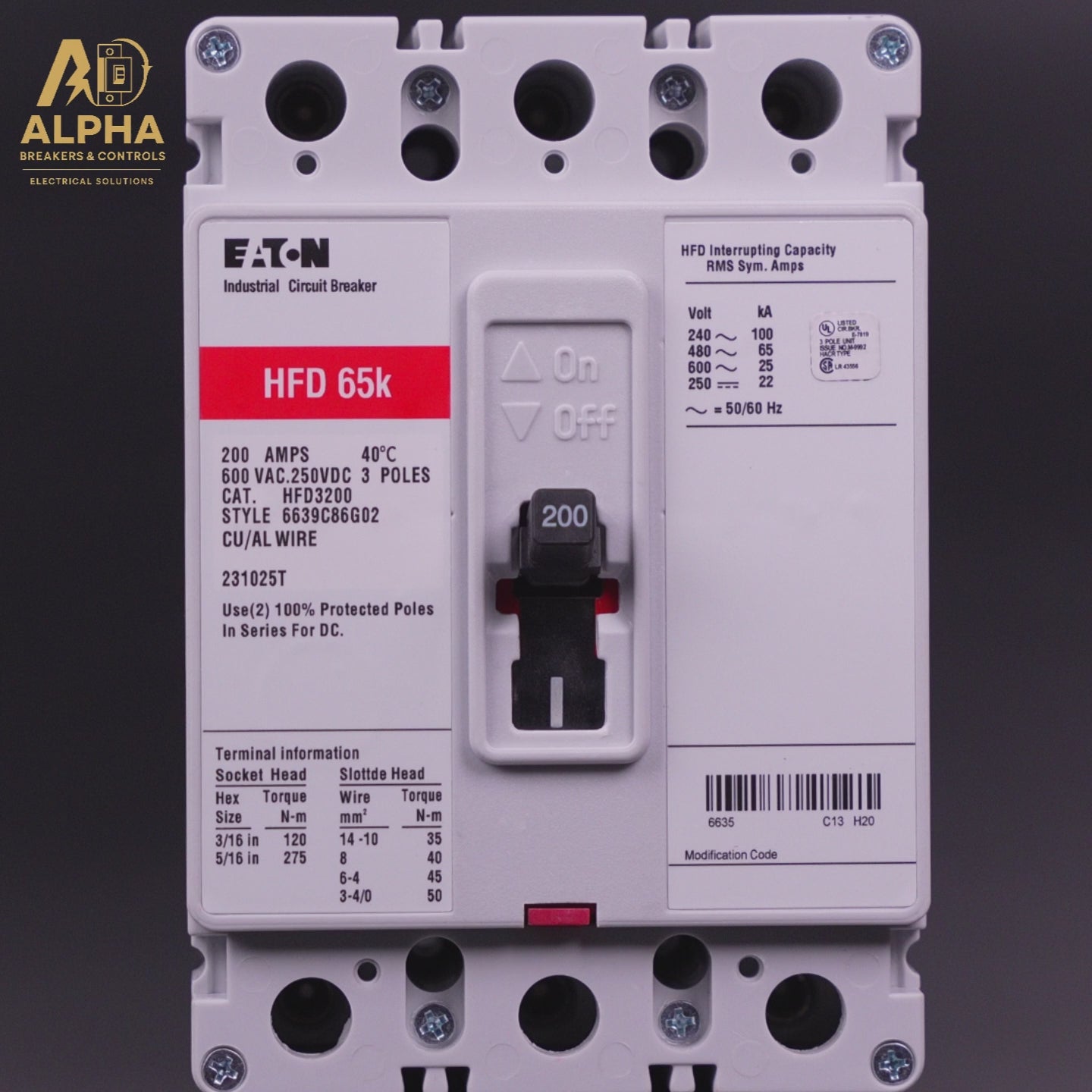

Eaton HFD3200 — 200A 3-Pole 600V Bolt-On Molded Case Circuit Breaker (MCCB)

The Eaton HFD3200 is a 200-amp, 3-pole, 600V thermal magnetic molded case circuit breaker (MCCB) with bolt-on mounting. Part of Eaton's HFD frame series (formerly Cutler-Hammer), this heavy-duty breaker delivers reliable three-phase overcurrent protection for demanding industrial and commercial power distribution systems at up to 600VAC.

Key Specifications

• Part Number: HFD3200
• Brand: Eaton / Cutler-Hammer
• Amperage: 200A
• Poles: 3-Pole
• Voltage Rating: 600VAC
• Frame: HFD Frame
• Mounting: Bolt-On
• Trip Type: Thermal Magnetic
• Standards: UL Listed, CSA Certified

Features & Benefits

• Bolt-on mounting provides a secure, vibration-resistant connection for high-current circuits
• Thermal magnetic trip for dependable overload and short-circuit protection at 200A
• 3-pole design for complete three-phase protection in 600V distribution systems
• HFD frame construction suited for high-demand industrial panelboard applications
• Eaton (Cutler-Hammer) reliability for long service life in tough environments

Common Applications

The HFD3200 is commonly used as a main or feeder breaker in industrial plants, manufacturing facilities, commercial switchboards, and motor control centers requiring 200A, 600VAC three-phase protection.
