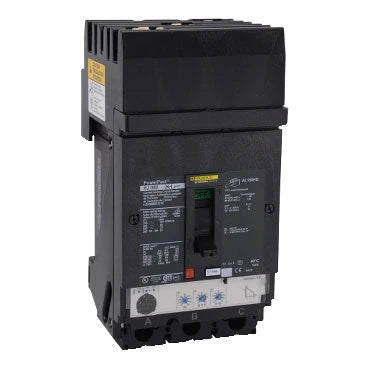

HJA36060U31X - Square D - Molded Case Circuit Breaker I-Line Plug-In - - 60 Amp - 3 Pole - 600 Volt
$1,400.00
Sale price
$1,400.00
Regular price
Product images are representative only. Actual product may vary.
Description
Designed for high-capacity distribution, this 60A PowerPacT H-Frame breaker delivers 100kAIC at 240V alongside advanced electronic sensing. The plug-on I-Line mounting configuration ensures rapid installation into Square D I-Line panelboards and switchboards. Serving as a modern upgrade for older FA36060 and FH36060 models, it incorporates a Micrologic 3.2 trip unit for highly configurable long-time and instantaneous protection in commercial facilities.Specifications
| Brand | Square D |
|---|---|
| Part Number | HJA36060U31X |
| Series | HJA |
| Amperage | 60A |
| Poles | 3 |
| Mounting Style | I-Line |
| Voltage | 240VAC, 480VAC, 600VAC |
| Phase | 3 |
| AIC Rating | 100kA @ 240VAC, 65kA @ 480VAC, 25kA @ 600VAC |
| Amperage Range | 24-60A |
|---|
| Frame Type | HJA |
|---|---|
| Terminal Type | Lugs |
| For Use With | Square D I-Line Panelboards, Square D I-Line Switchboards |
| Wire Gauge | 14 AWG-3/0 AWG |
| Max Wire | 3/0 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Electronic Trip |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Adjustable |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch, Padlock Attachment, Motor Operator, Rotary Handle |
|---|---|
| Accessories | Micrologic 3.2 Trip Unit |
| Standards | CSA C22.2 No. 5, IEC 60947-2, NEMA AB 1, UL 489 |
| Approval | CCC, CE, CSA, HACR, IEC, NOM, UL |
| Temp Rating | -25C to 70C |
| Construction Features | HACR Rated, Current Limiting, Visual Trip Indicator, Reverse Feed, 80% Rated, True RMS Sensing |
