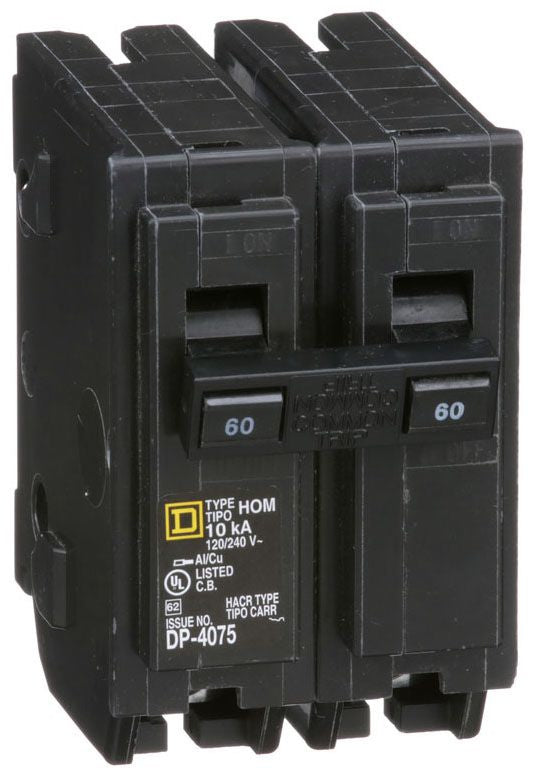

HOM260 - Square D Homeline - Circuit Breaker Plug-In - 60 Amp - 2 Pole - 240 Volt
Used
$9.50
Sale price
$9.50
Regular price
Skip to product information
HOM260 - Square D Homeline - Circuit Breaker Plug-In - 60 Amp - 2 Pole - 240 Volt
$9.50
Sale price
$9.50
Regular price
Product images are representative only. Actual product may vary.
Description
Built for residential applications, the HOM260 provides 60 amps of protection for heavy-duty loads like electric furnaces or sub-panels. This two-pole thermal-magnetic breaker features a 10 kAIC rating at 120/240V and a visual trip indicator. Engineered exclusively for Square D Homeline load centers, it installs into the panel's bus bar using a secure plug-on connection. The box lugs accept #8-2 AWG wire. It is HACR rated for HVAC equipment and features common trip functionality.Specifications
| Brand | Square D |
|---|---|
| Part Number | HOM260 |
| Series | HOM |
| Amperage | 60A |
| Poles | 2 |
| Mounting Style | Plug-On |
| Voltage | 120/240VAC |
| Phase | 1 |
| AIC Rating | 10kA @ 120/240VAC |
| Frame Type | HOM |
|---|---|
| Terminal Type | Box Lugs |
| For Use With | Square D Homeline Load Centers |
| Wire Gauge | 8-2 AWG (Al/Cu) |
| Max Wire | 2 AWG |
| Min Wire | 8 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Available Options | Padlock Attachment |
|---|---|
| Standards | CSA C22.2 No. 5, HACR, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Common Trip, Visual Trip Indicator, RoHS Compliant |
