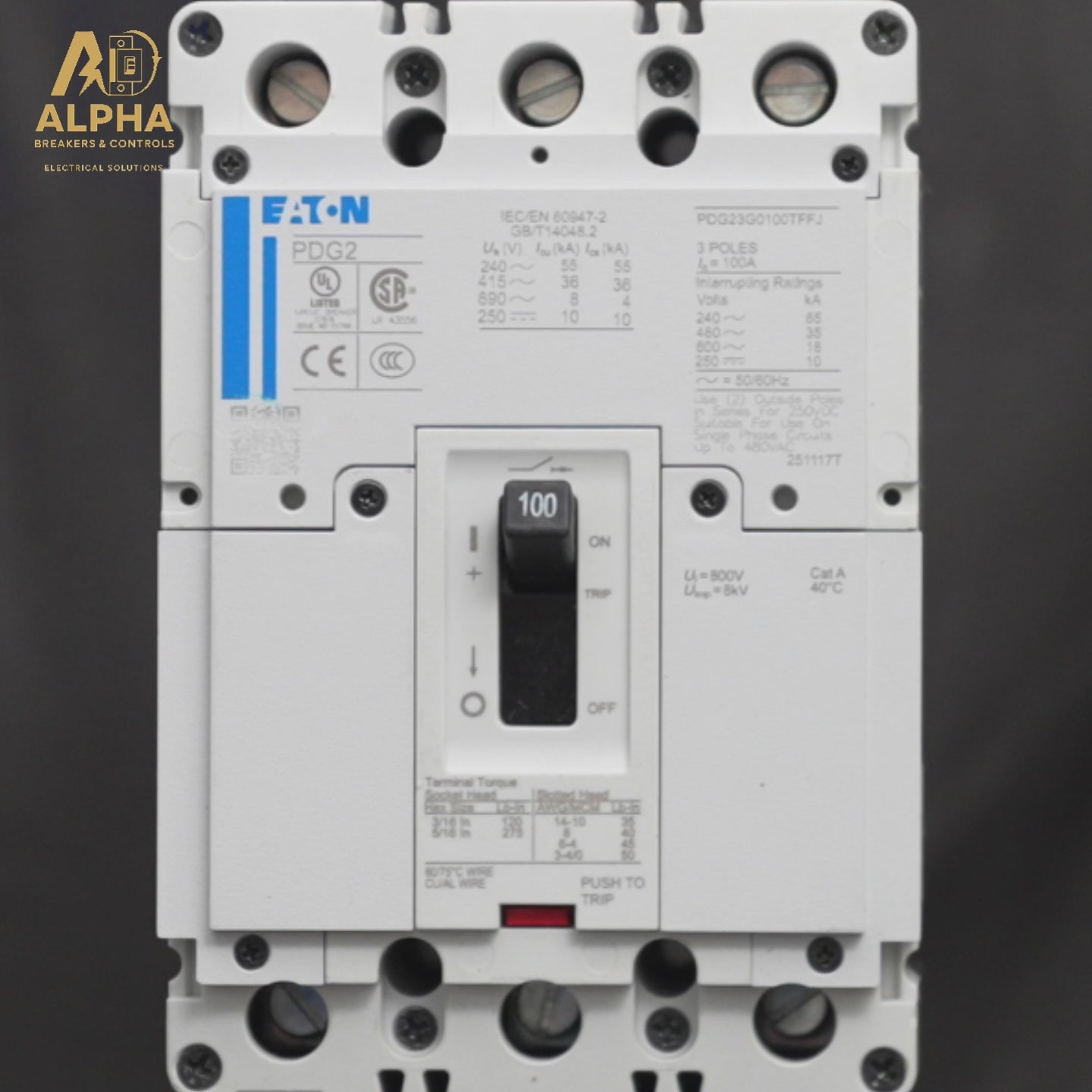

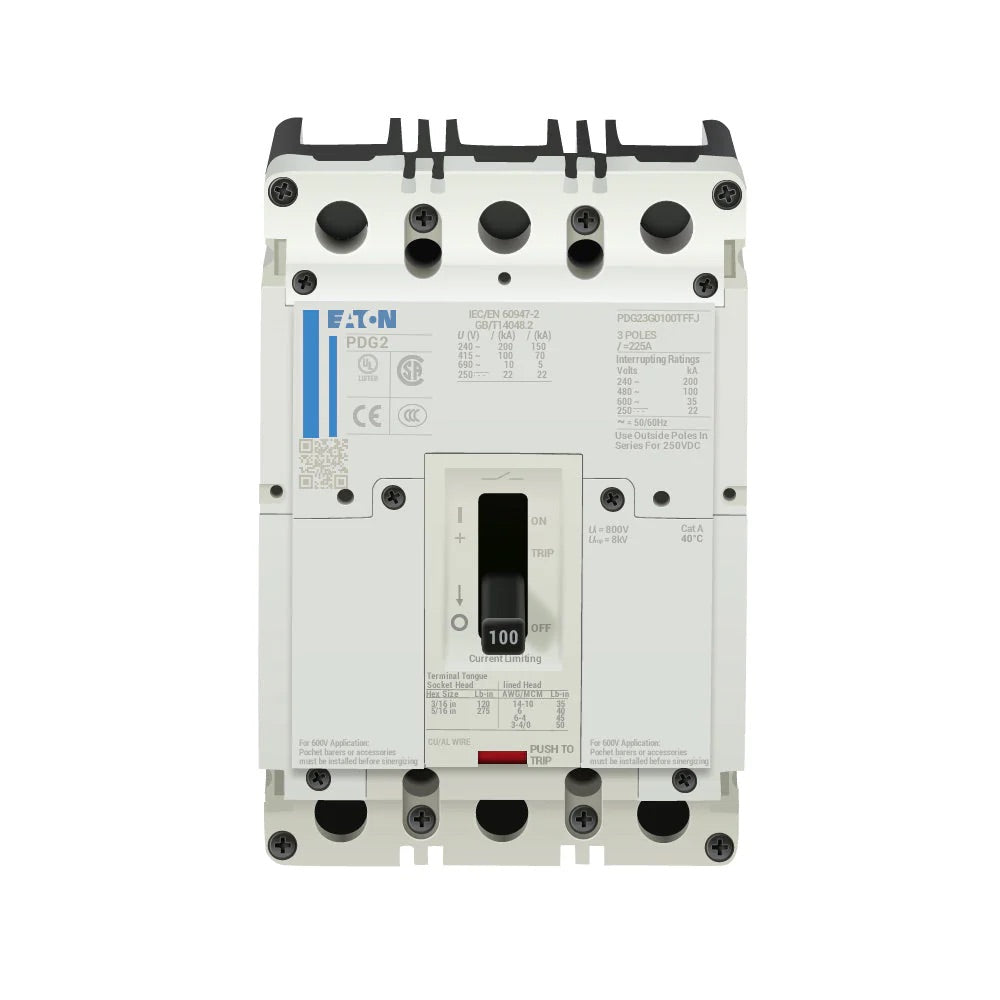

Product images are representative only. Actual product may vary.
The Eaton PDG23G0100TFFJ is a 3-pole, 100-amp thermal magnetic molded case circuit breaker rated for 600VAC with an interrupting capacity of 65kA, part of Eaton's next-generation Power Defense (PDG) Frame 2 platform. Its Feed-Thru mounting configuration makes it ideal for industrial panelboards, switchboards, and commercial distribution equipment demanding the highest interrupting performance in a compact frame.
Key Specifications
| Part Number | PDG23G0100TFFJ |
| Brand | Eaton |
| Amperage | 100A |
| Poles | 3-Pole |
| Voltage Rating | 600VAC |
| Interrupting Capacity | 65kA @ 600V |
| Trip Type | Thermal Magnetic |
| Mounting Type | Feed-Thru (TFFJ) |
| Series / Frame | PDG Power Defense Frame 2 |
| Standard | UL 489, CSA C22.2, IEC 60947-2 |
Features & Benefits
- 65kA @ 600V interrupting capacity — industry-leading IC for a thermal magnetic MCCB at this frame size
- Power Defense platform — Eaton's most advanced MCCB series, designed to replace multiple legacy frames with one platform
- Feed-Thru (TFFJ) mounting — drop-in compatible with Eaton Power Defense-rated panelboards and switchboards
- UL 489, CSA C22.2, and IEC 60947-2 certified for North American and international compliance
- Compact Form 2 frame with superior short-circuit withstand performance
The Eaton Power Defense (PDG) Series is Eaton's flagship molded case circuit breaker platform, engineered to consolidate multiple legacy frame sizes (including HFD, HGF, and GHB) into a single high-performance product family. The 65kA interrupting capacity at 600V eliminates the need to upsize frame or increase panel bus ratings in most industrial applications.
Typical Applications
- Industrial 3-phase branch and feeder circuit protection at 600V
- Manufacturing facilities, data centers, and commercial switchboards
- Panelboards requiring 65kA interrupting capacity in a compact frame
- Replacement for legacy Eaton/Cutler-Hammer HFD, GHB frame breakers
Frequently Asked Questions
Q: What does "TFFJ" mean in PDG23G0100TFFJ?
A: TFFJ indicates the Feed-Thru lug configuration (J lug style). It defines how conductors terminate to the breaker in the panelboard.
Q: What legacy breakers does the PDG23G0100TFFJ replace?
A: The Power Defense Frame 2 replaces legacy Eaton/Cutler-Hammer HFD and GHB-frame breakers in many applications. Verify compatibility using Eaton's cross-reference guide.
Q: Is the PDG23G0100TFFJ UL listed?
A: Yes, it is UL 489 listed, CSA C22.2 certified, and IEC 60947-2 compliant.
