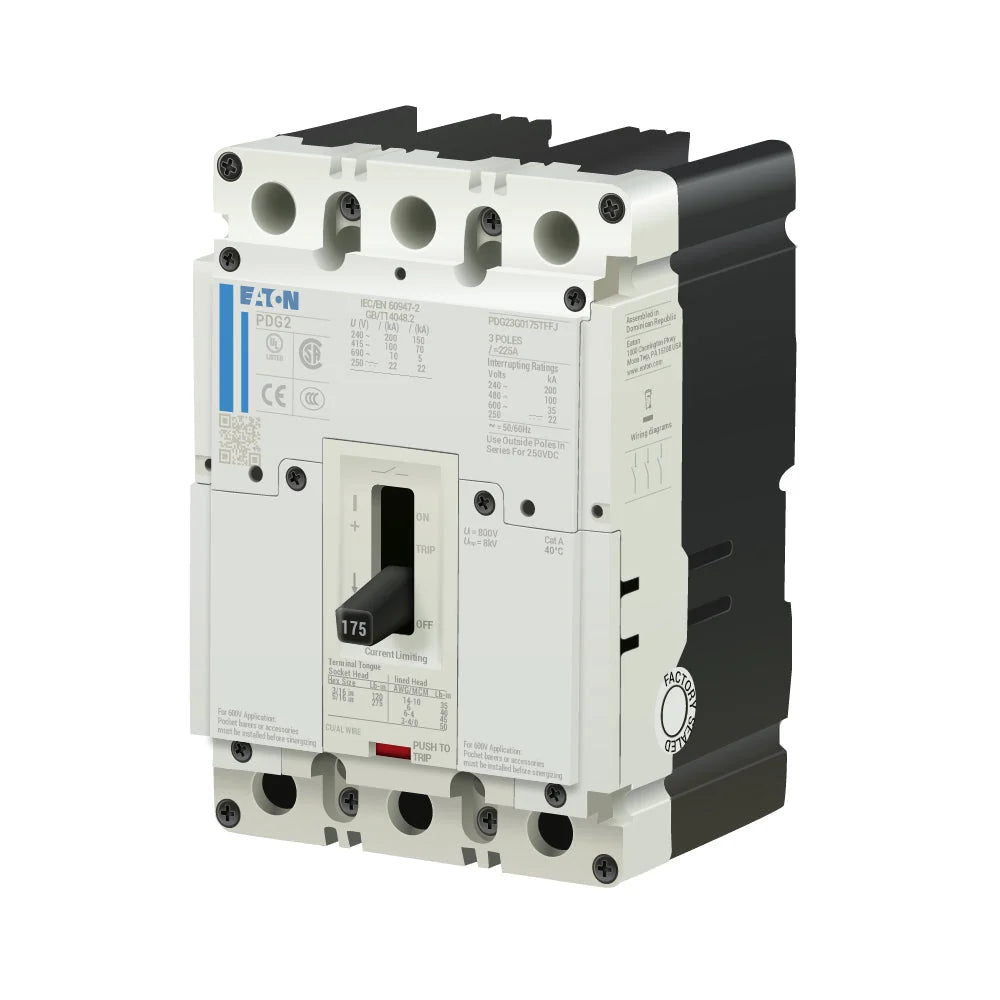

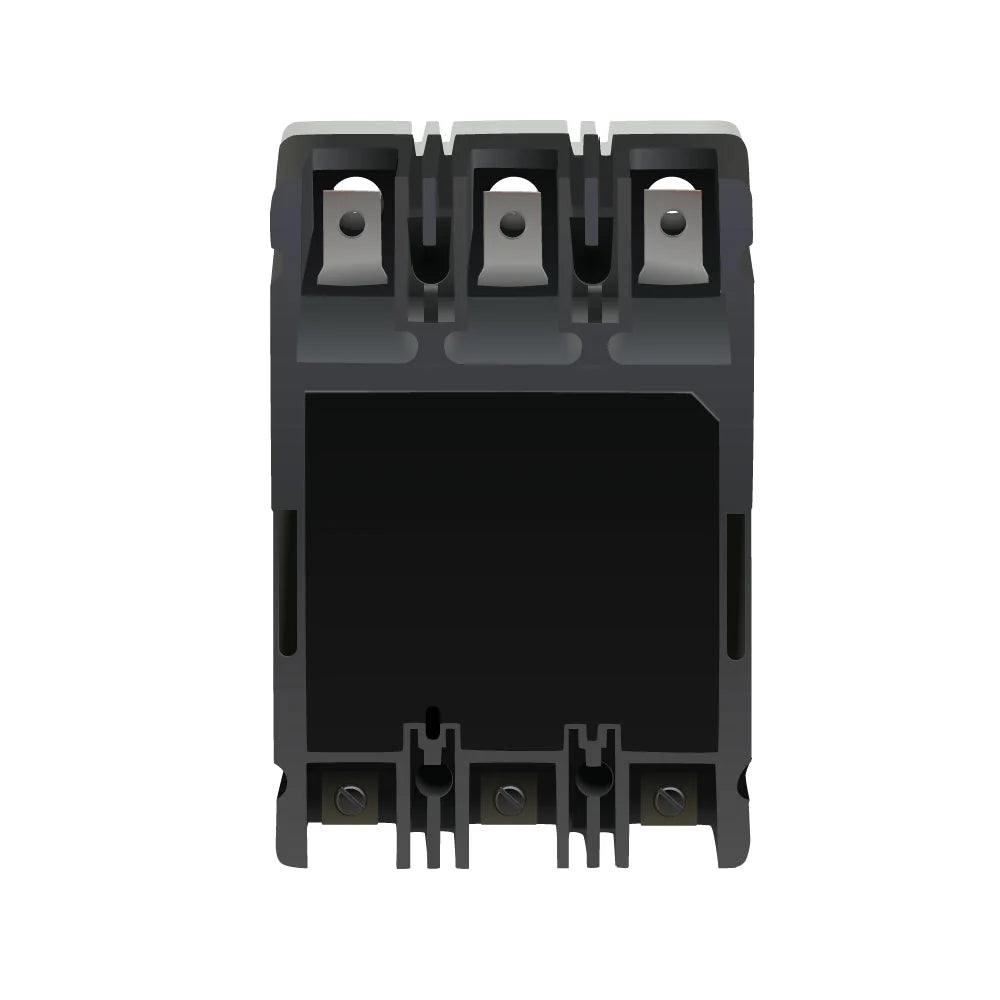

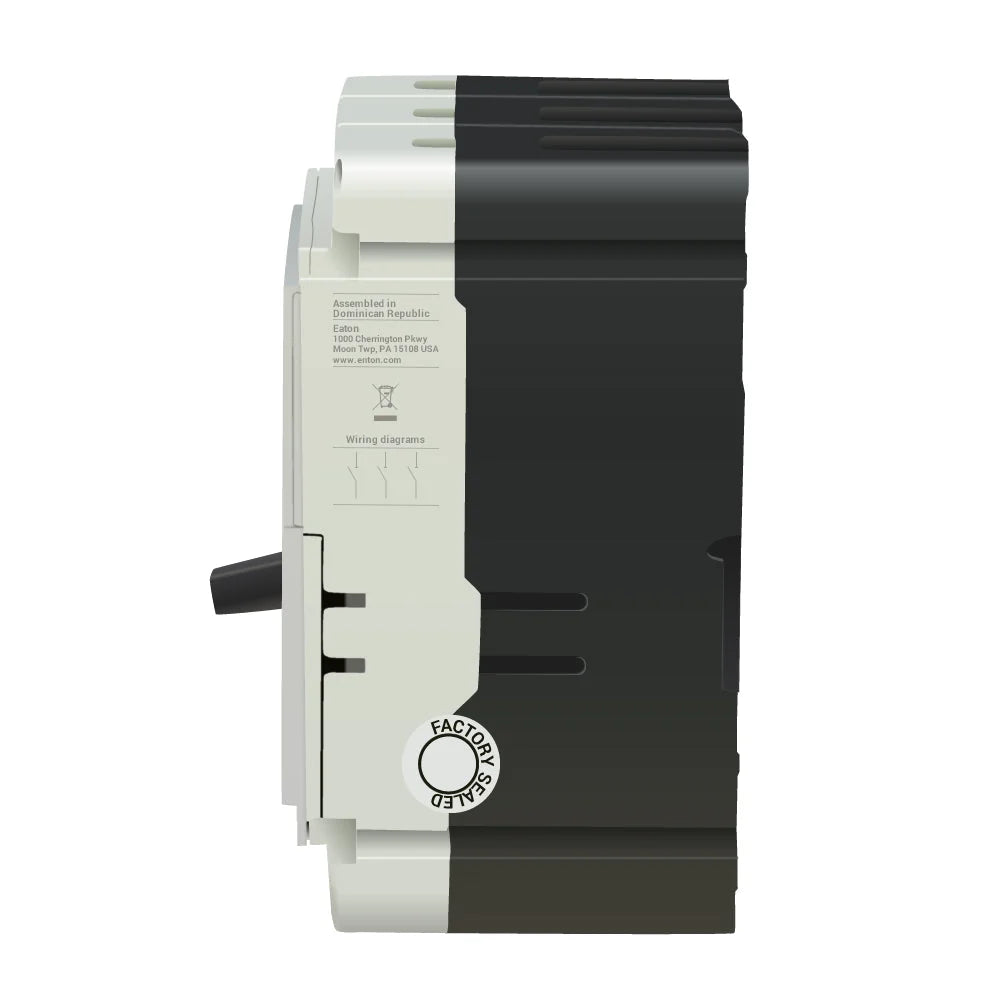

PDG23G0175TFFJ - Eaton - Molded Case Circuit Breakers Feed-Thru - 175 Amp - 3 Pole - 600 Volt
New
$974.99
Sale price
$974.99
Regular price
Skip to product information
PDG23G0175TFFJ - Eaton - Molded Case Circuit Breakers Feed-Thru - 175 Amp - 3 Pole - 600 Volt
$974.99
Sale price
$974.99
Regular price
Product images are representative only. Actual product may vary.
Description
Operating within the Power Defense Frame 2 family, this 175A, three-pole circuit breaker utilizes fixed thermal and magnetic trip units. It offers dependable fault clearing for marine and commercial facilities. The PDG23G0175TFFJ integrates smoothly into modern Eaton panelboards while replacing discontinued HFD3175 and JGE3175FA breakers. Standard line and load lugs come pre-installed for efficient wiring. Capable of interrupting 35kA at 480VAC, the current-limiting device maintains high safety.Specifications
| Brand | Eaton / Cutler-Hammer |
|---|---|
| Part Number | PDG23G0175TFFJ |
| Series | PDG2 |
| Amperage | 175A |
| Poles | 3 |
| Mounting Style | Panel Mount |
| Voltage | 240VAC, 480VAC, 600VAC, 250VDC |
| Phase | 3 |
| AIC Rating | 65kA @ 240VAC, 35kA @ 480VAC, 18kA @ 600VAC, 10kA @ 250VDC |
| Frame Type | PDG |
|---|---|
| Terminal Type | Lugs |
| For Use With | Eaton Power Defense Panelboards, Switchboards, Enclosures |
| Wire Gauge | 4 AWG - 4/0 AWG |
| Max Wire | 4/0 AWG |
| Min Wire | 4 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch, Padlock Attachment, Terminal Shields |
|---|---|
| Accessories | Line and Load Lugs Included (PDG2X3TA225) |
| Standards | CSA C22.2 No. 5, IEC 60947-2, UL 489, RoHS |
| Approval | CCC, CE, CSA, IEC, UL |
| Temp Rating | -20C to 70C |
| Construction Features | Current Limiting, RoHS Compliant |
